DMTA-20073-01EN, Rev. C, November 2015
Spare Parts
147

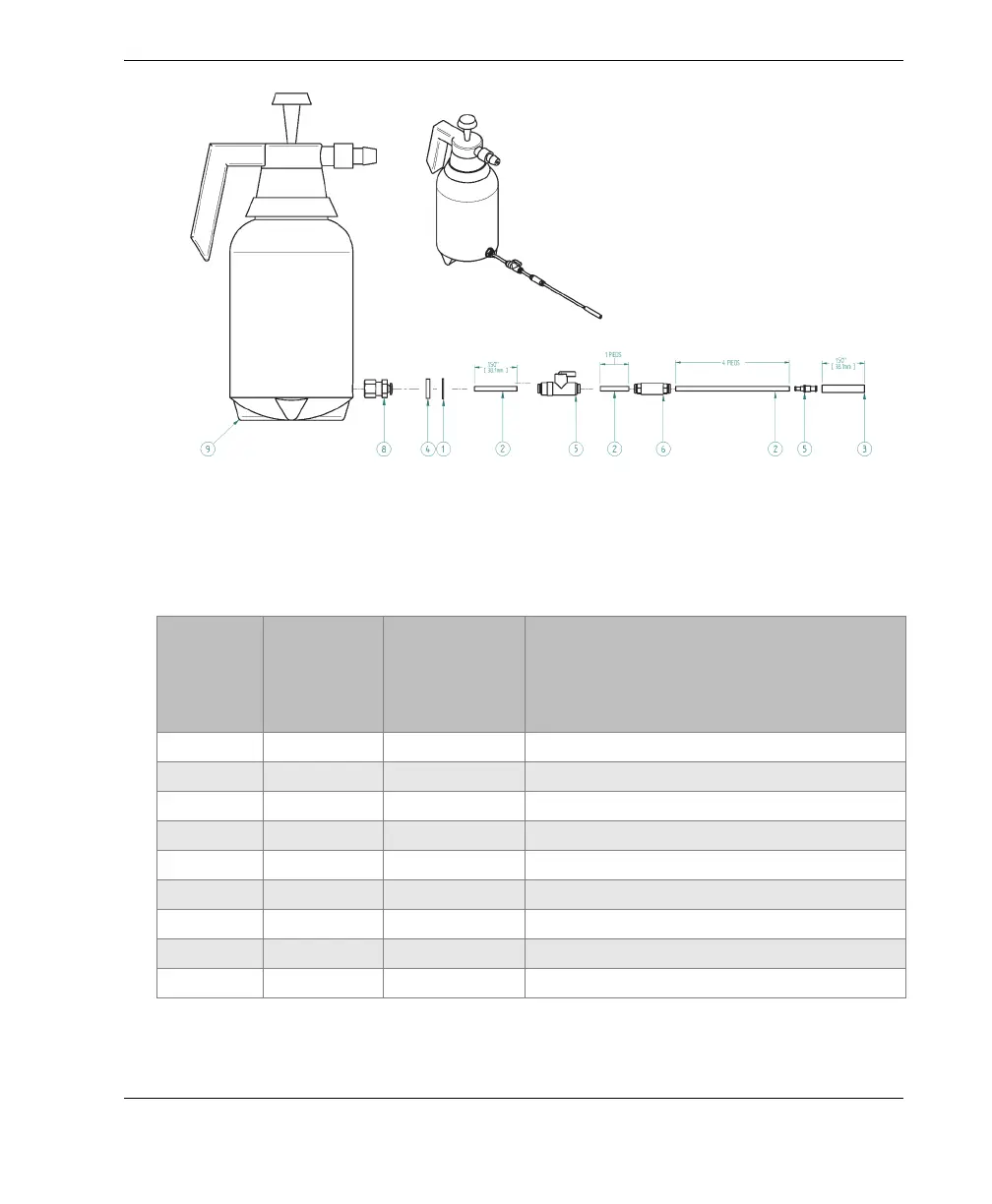

Figure 8-2 Manual pump spare parts (P/N: ROLLERFORM-A-PUMP [Q7790006])
Table 7 Manual pump spare parts
Drawing
number
Item number
Quantity
(included in kit
ROLLERFORM
-A-PUMP
[Q7790006])
Description
1 Q8300217 1 SHIM INOX ID 12MM -OD 18MM- W 1MM
2 U8831692 1 BLUE TUBE OD 4MM
3 U8900341 1 TRANSPARENT SILICONE TUBE ID 3MM
4 Q1500132 1 WATER FILTER 4MM PUSH IN 5 MICRONS
5 U8902322 1 BARBED REDUCER PU-3 @ PU-4
6 Q8300218 1 BULKHEAD QSSF-1/8-4-B
7 Q8300219 1 153483 VALVE QH-QS-4
8 Q1500134 1 O-RING ID 7/16
9 Q1500133 1 BOTTLE
