Olympus RollerFORM - Figure 6-57 Aligning the Rear Rollers Axle-End Flat Bevel with the Retaining Screw

DMTA-20073-01EN, Rev. C, November 2015
Maintenance 131

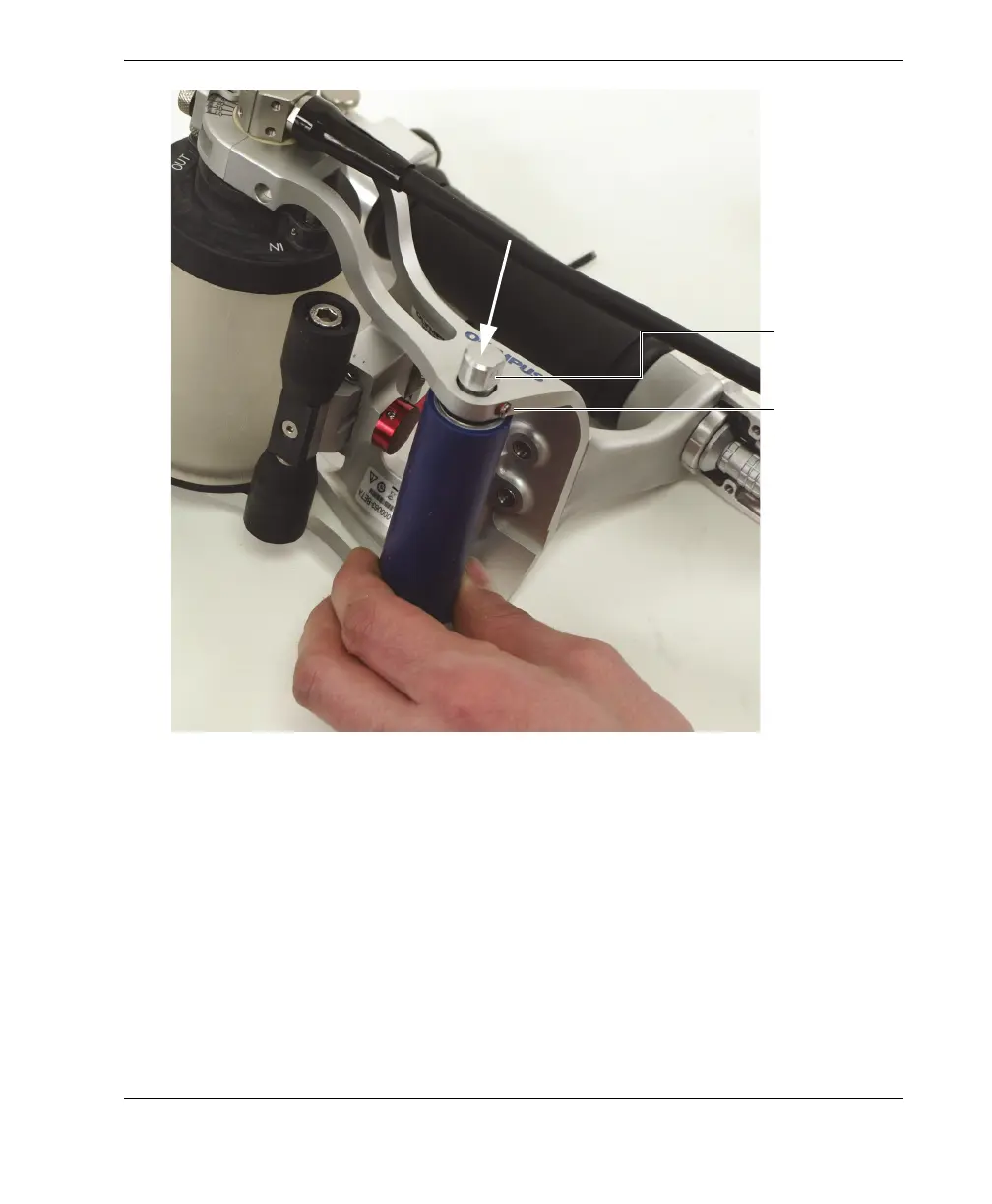

Figure 6-57 Aligning the rear roller’s axle-end flat bevel with the retaining screw
d) Tighten the rear roller retaining screw.
8. Loosen the retaining screw of the alternate encoder holder, which is located on
the acoustic wheel mount on the side of the probe cable (see Figure 6-58 on
page 132).
Flat bevel facing
the retaining
screw
Retaining screw
