DMTA-20073-01EN, Rev. C, November 2015
Performing an Inspection
69

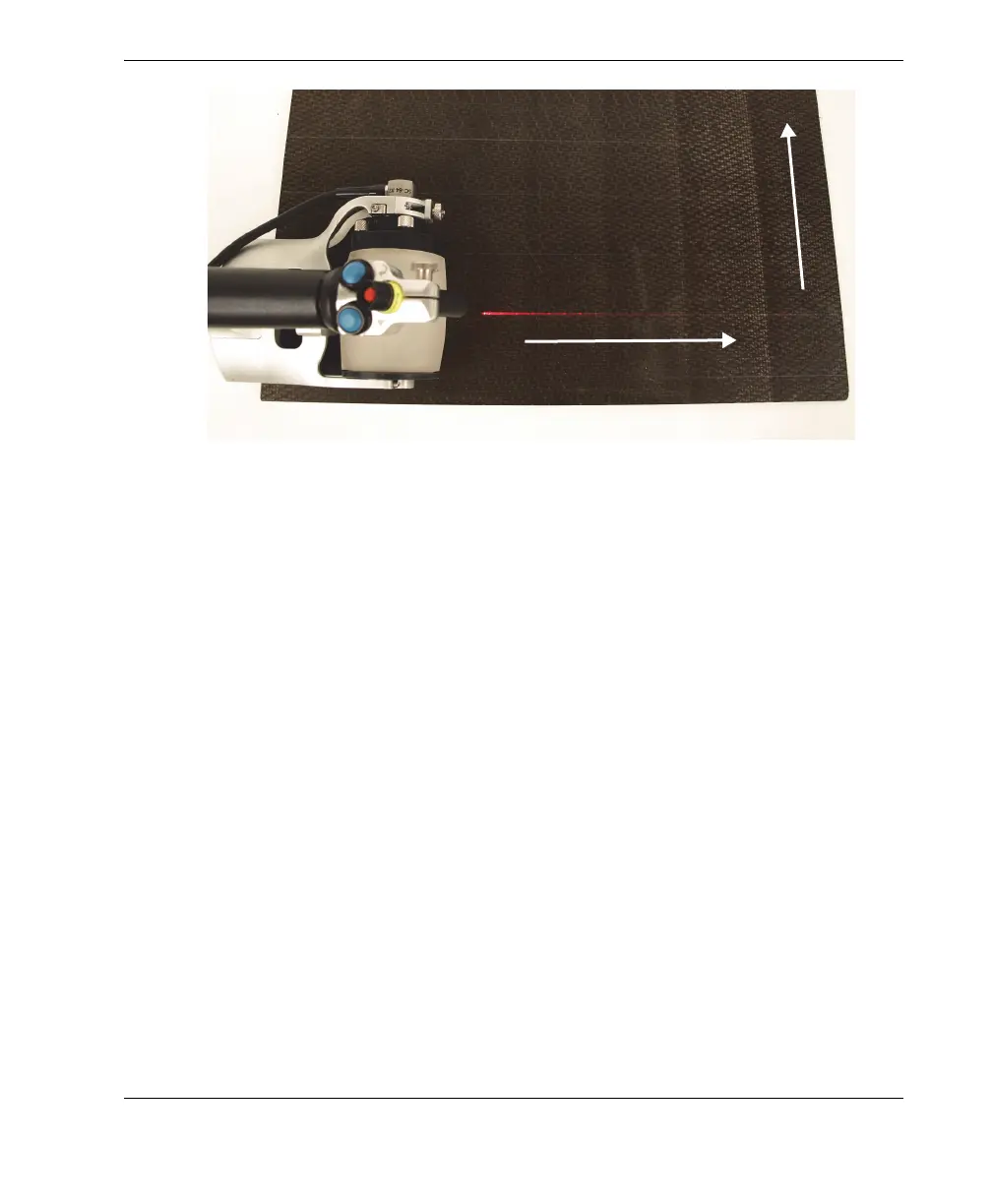

Figure 5-6 Positioning the RollerFORM on the next guide line
12. Lower the RollerFORM so that it comes in contact with the surface, making sure
that the wheel on the encoder does not move.
13. Press the Indexer Clicker on top of the RollerFORM’s handle (see Figure 5-7 on
page 70).
Scan direction
Index direction
