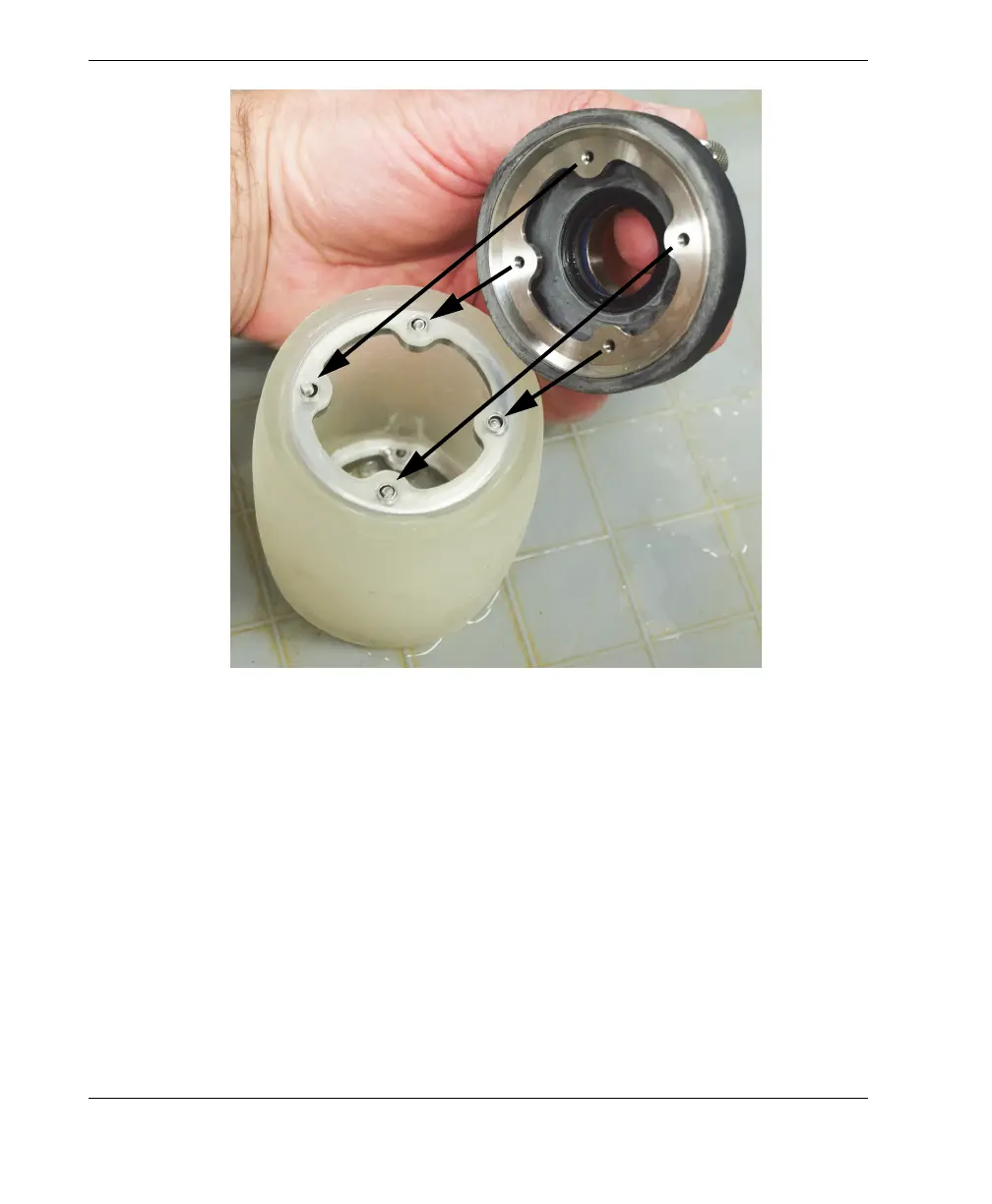

Figure 6-31 Installing the flange with the liquid-control valves
b) Inside the liquid chamber, using a cross pattern, tighten the four captive
screws on the stainless steel ring, first lightly, and then tightly (see Figure 6-32
on page 105).
