Using the Quick Test feature
The upper part of the Results Advanced card (Figure 10-4) displays the measured values:
The lower part of the Results Advanced card (Figure 10-4) displays the measurement results
calculated from the measured values. In this area, you can freely define which result each single field
should display.

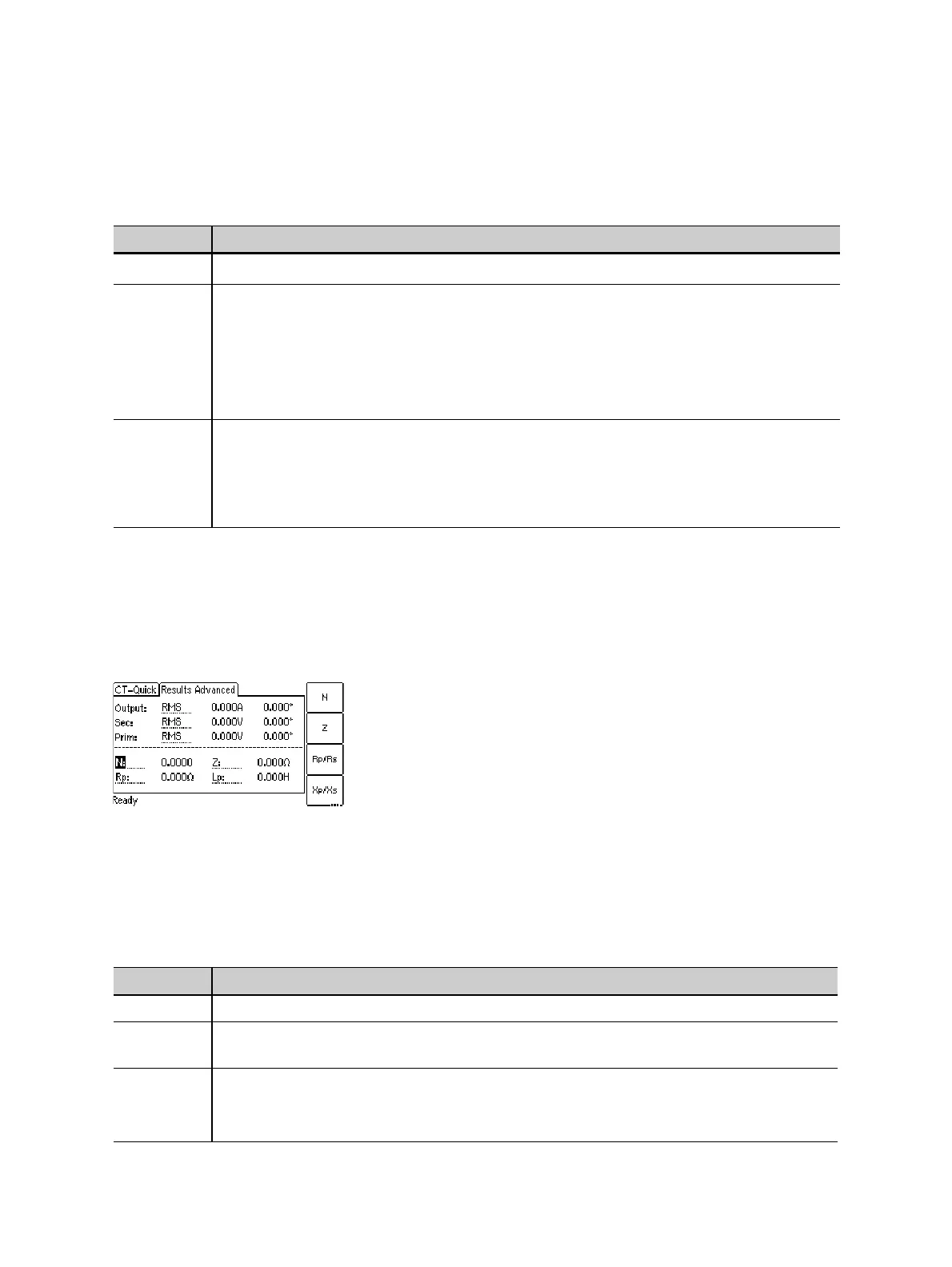

Figure 10-4 shows the Results Advanced card with the default selection for the results fields.
Figure 10-4: Results Advanced card with default selection for the displayed results
The following table lists the calculated results available for the Advanced measurement type. Use the
cursor keys to move the cursor to a field and then select the result to be displayed in this field using the
available soft keys.
Table 10-3: Measured values for Advanced measurement type
Value Description
OUTPUT
Internally measured current value and phase of the output signal.
1
1. Select the display mode for the current or voltage value using the soft keys: RMS, DC, Peak+ (highest positive peak value) or
Peak- (highest negative peak value).
SEC
Voltage measured at input SEC.
1
Max. input voltage: 150V
RMS
Measurement is performed according to the measurement mode selected on the
CT-Quick card.
This input is considered as the phase reference, therefore the phase is always 0.
PRIM
Value and phase of the voltage measured at input PRIM.
1
Max. input voltage: 30V
RMS
Measurement is performed according to the measurement mode selected on the
CT-Quick card.
Table 10-4: Results for Advanced measurement type
Result Description
N Ratio calculated from the values measured at inputs SEC and PRIM.
Z Impedance, calculated from the amplitude and phase angle of the output signal and the
voltage measured at input SEC.
Rp, Rs Use the Rp/Rs soft key to switch between R
p
and R
s
.
Parallel or serial resistance, calculated from the output signal and the voltage measured
at input SEC.
