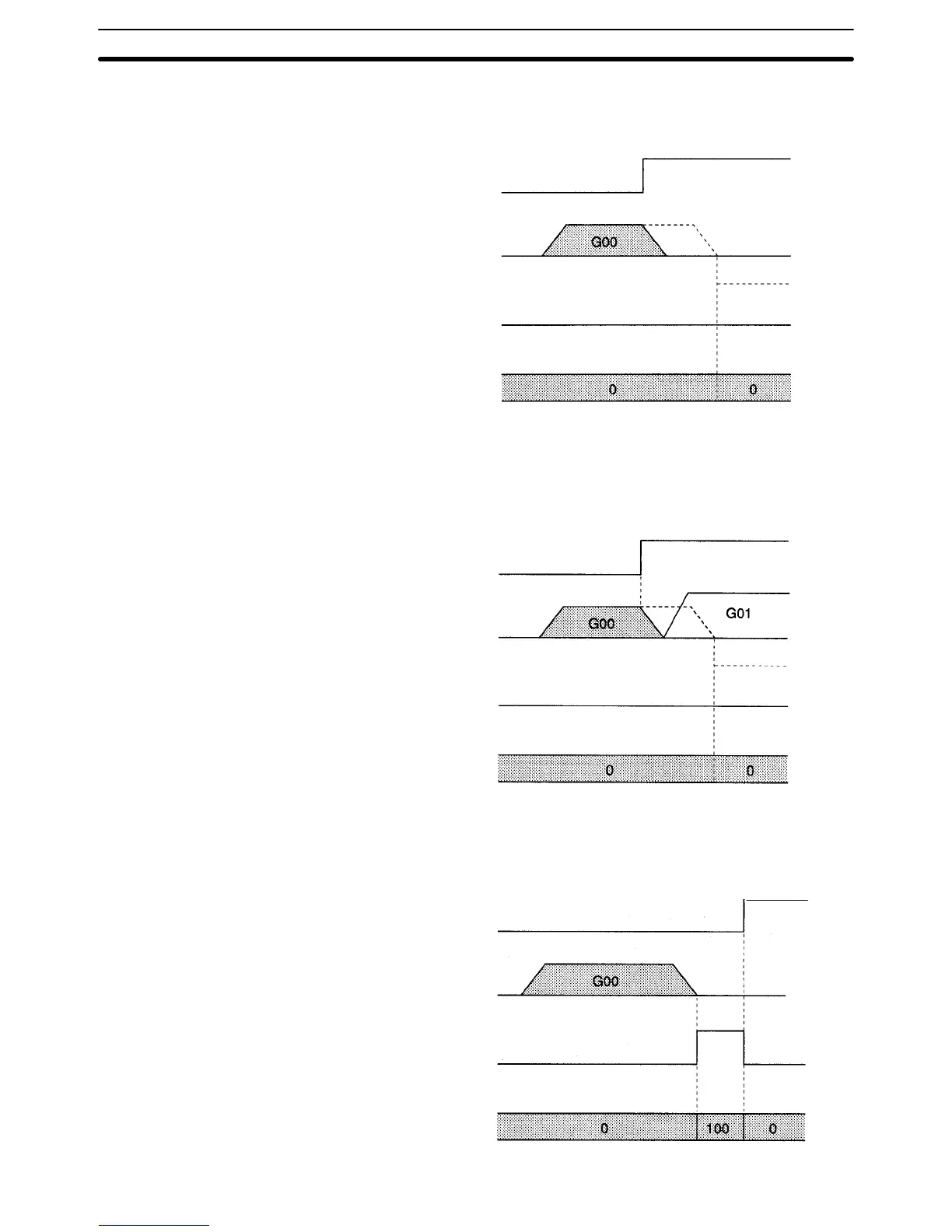

Example 1 The M strobe and M code won’t be output if a Forced Block End signal is
received before they are output.
G00 X500 M100
Forced Block End
X-axis operation
M strobe
M code
Example 2 The M strobe and M code won’t be output if the OPTIONAL END function’s
optional input is received before they are output.
G74 3
G00 X500 M100
G01 X1000
Optional input 3
X-axis operation
M strobe
M code
Example 3 When the output has been completed and the system is set to wait for the M code
reset, the M strobe will be turned OFF and the M code will be cleared to release
the M code reset.
G00 X500 M100
Forced Block End
X-axis operation
M strobe
M code
M-code Outputs
Section 5-6
