203
N005
Moves the axes to (X400, Y400) by circular interpolation in the clockwise direc-
tion with a radius of 100. A negative value is specified for the radius, so an arc
greater than a semicircle (3/4 circle) is drawn.
N006
Ends the program.
Note This series of operations is performed in Pass mode.
9-4 Indirect Addressing with Registers
This program uses registers to indirectly specify position data stored in position
data addresses and uses this data in positioning operations.
Sample Program N000 P005 XY
N001 G11
N002 G63 E1=100
N003 G63 E2=101
N004 G01 X(E1) Y(E2) F100
N005 G60 E1=E1+2
N006 G60 E2=E2+2
N007 G75 3
N008 G70 N004/L3
N009 G79
Explanation Block N000 declares the program number and axes being used.
N001
Specifies Stop mode.
N002 through N003
Set the initial position data addresses in the registers.
N004
Reads the position data from the addresses specified in the registers and moves
the axes to this point by linear interpolation.
N005 through N006
Updates the contents of the registers.
N007
If optional input 3 is ON, the next block will be skipped and the program will end.
N008
Jumps to block N004 and repeats the positioning operation 3 times.
N013
Ends the program.

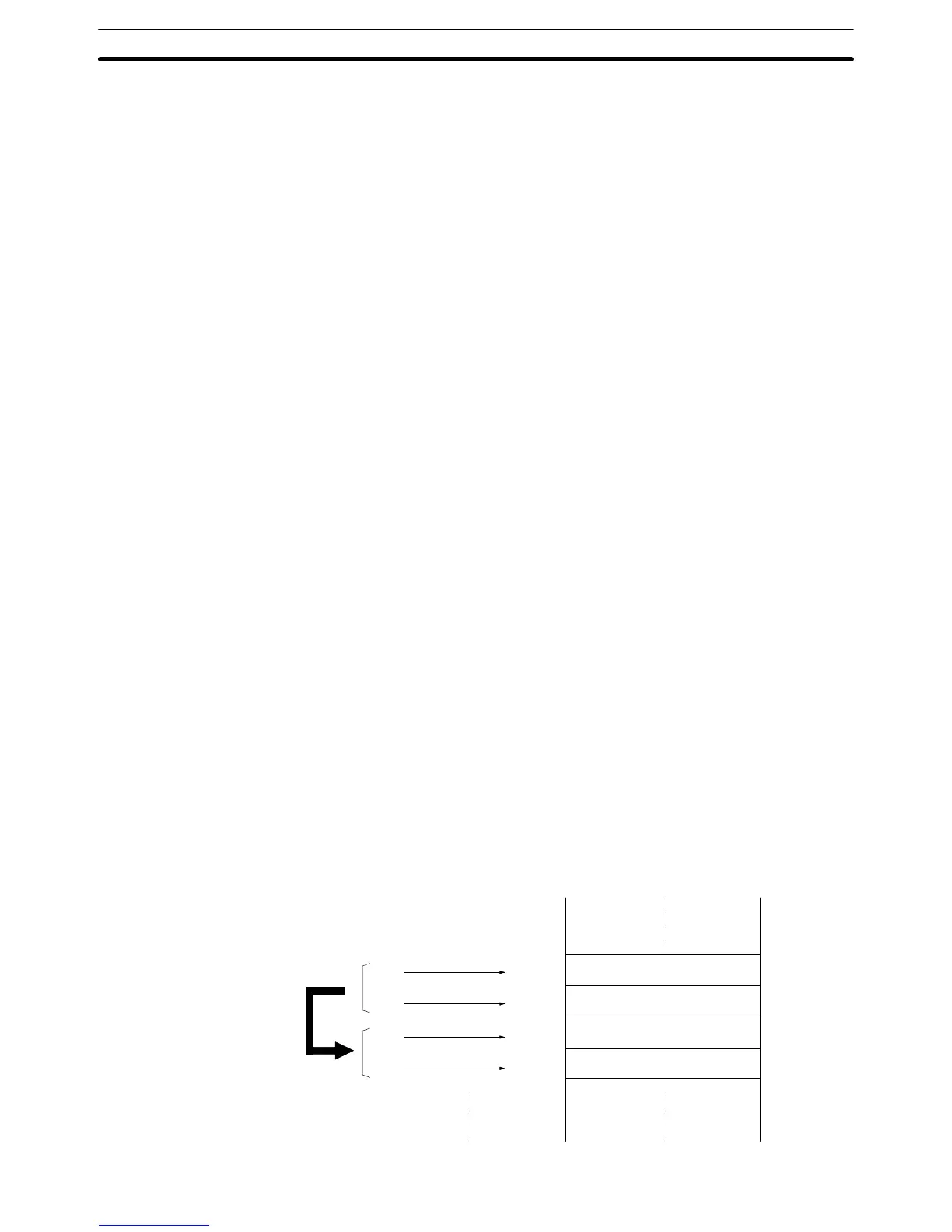

Register contents
+ 2
First X-axis position
First Y-axis position
Second X-axis position
Second Y-axis position
E1 A100
E2 A101
E1 A102
E2 A103
Indirect Addressing with Registers
Section 9-4
