4-8 Details of Intelligent Transfer
Intelligent transfer is available to the MC Unit if the MC Unit is mounted to the
C200HX, C200HG, or C200HE. Intelligent transfer makes it possible to transmit
or receive data of 128 words max. or a maximum of 42 position data items with
one instruction.
As shown in the following diagram, however, an MC Unit each must be mounted
to the CPU Backplane and I/O Backplane for intelligent transfer. The Remote I/O
Unit is not available for intelligent transfer.

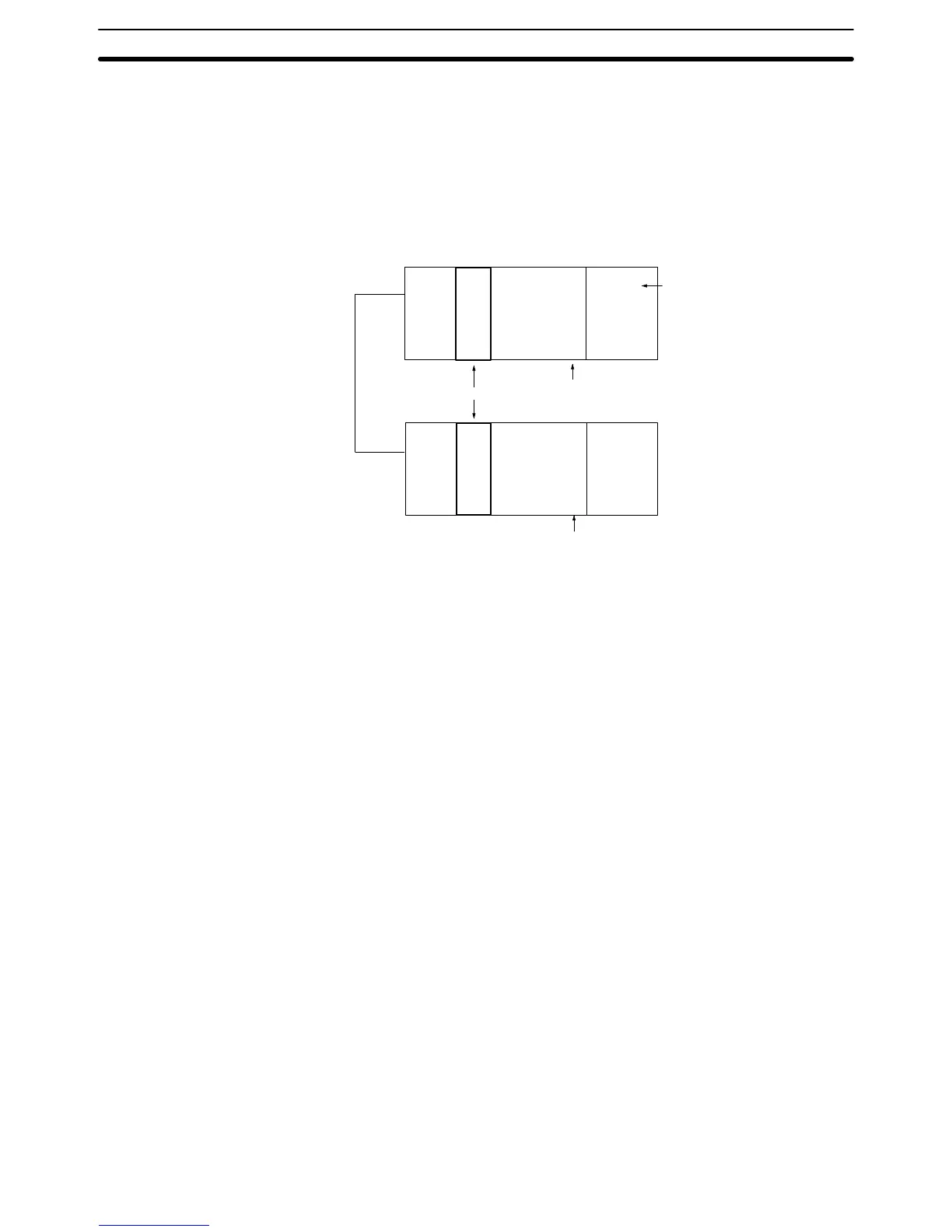

C200HX/C200HG/C200HE
CPU Backplane
MC Unit
(C200HW-BC031/BC051/BC081/BC101)
(C200HW-BI031/BI051/BI081/BI101)
I/O Backplane
Details of Intelligent Transfer
Section 4-8
