13
2-2-3 Dedicated Driver Cables (Optional)
When using OMRON’s U-, H-, or M-series Servodrivers, use Dedicated Driver
Cables that are available as options to connect the MC Unit to Servodrivers.
These Dedicated Driver Cables will eliminate the need for wiring.
The following Driver Cables are available.
Series For two axes For single axis Length (m)
R88D-U
for 30 to 750-W
R88A-CPU001M2 R88A-CPU001M1 1.0
f
or
30 t
o
750
-
W
Servodrivers
R88A-CPU002M2 R88A-CPU002M1 2.0
R88D-U
for 1 to 5-kW
R88A-CPUB001M2 R88A-CPUB001M1 1.0
f
or
1 t
o
5
-
kW
Servodrivers
R88A-CPUB002M2 R88A-CPUB002M1 2.0
R88D-H
R88A-CPH001M2 R88A-CPH001M1 1.0
R88A-CPH002M2 R88A-CPH002M1 2.0
R88D-M
R88A-CPM001M2 R88A-CPM001M1 1.0
R88A-CPM002M2 R88A-CPM002M1 2.0

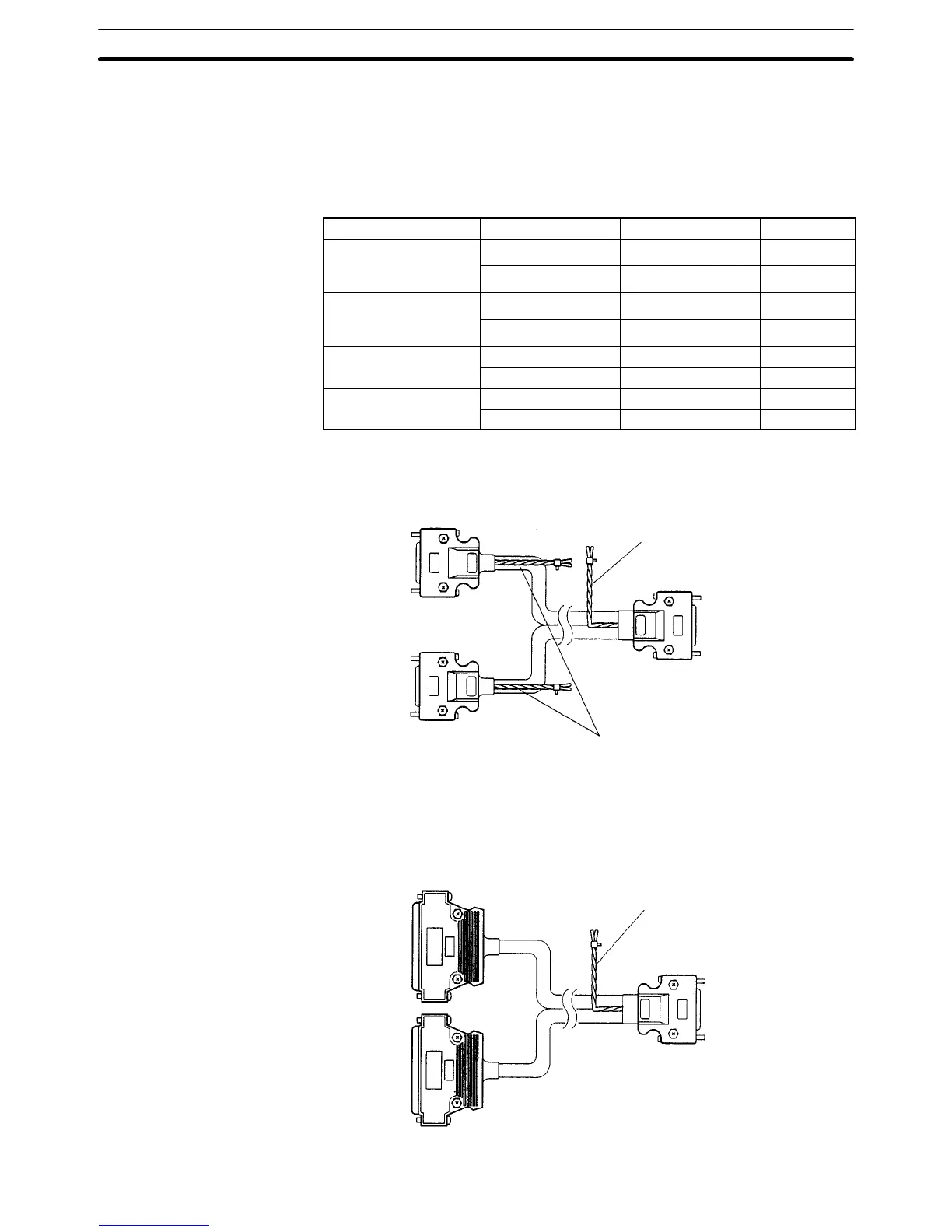

R88A-CPU001M2/002M2 (For U Series)
R88A-CPUB001M2/002M2
Connect to +24 V
Red: +24 V
Black: 0 V
Connect to a battery when using the absolute encoder.
Red: Positive
Black: Negative
R88A-CPH001M2/002M2 (For H Series)
Connect to +24 V
Red: +24 V
Black: 0 V
DRV Connectors
Section 2-2
