76
Example Programs

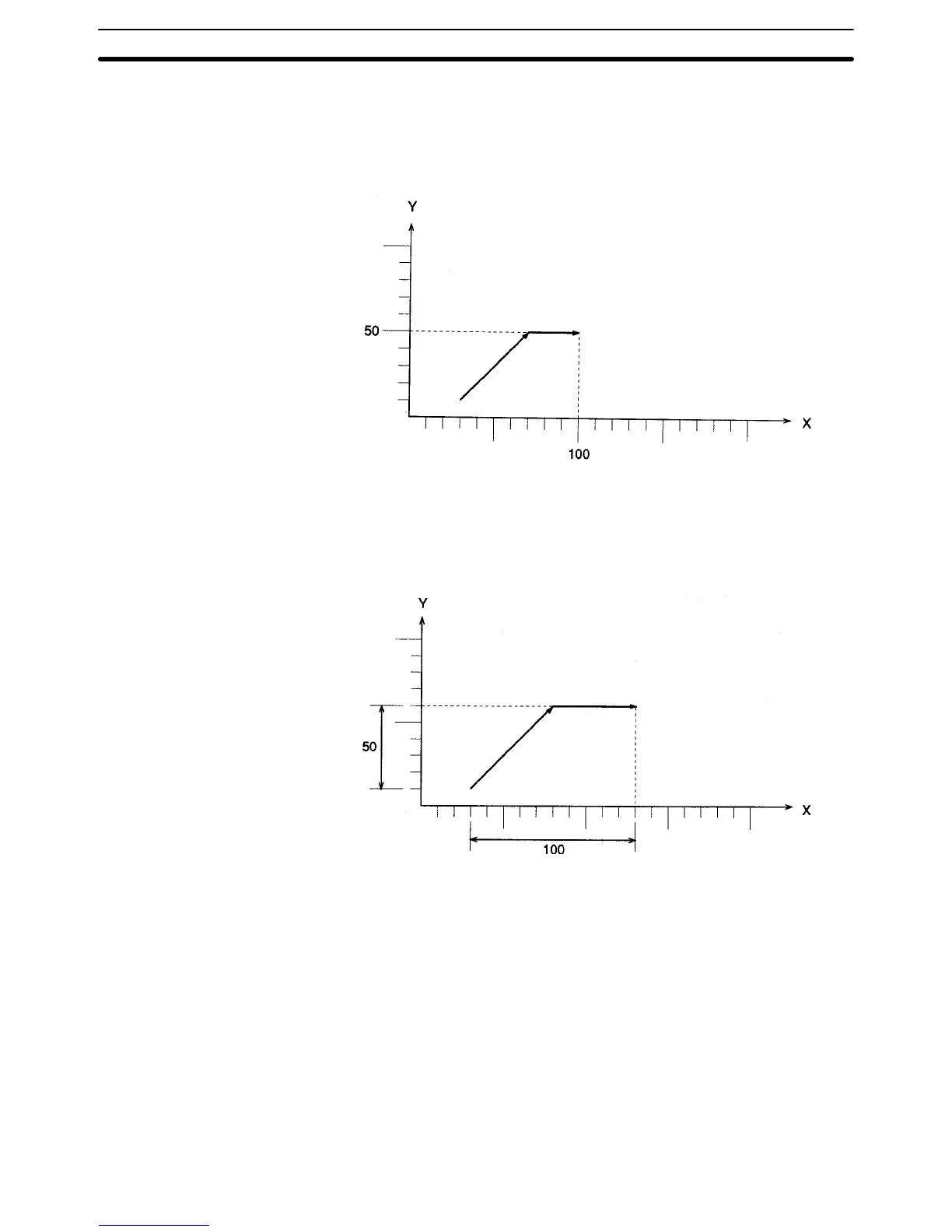

The following program is for absolute operation.
::
N010
G90
ABSOLUTE SPECIFICA
TION
N011
G00
X100
Y50
M001
::
The following program is for incremental operation.
::
N010
G91
INCREMENT
AL SPECIFICA
TION
N011
G00
X100
Y50
M001
::
Note
The X and Y axes are operated at the same speed in the above examples.
G Functions
Section 5-5
95
97
