System Configuration
18
FQ-CR2 User’s Manual

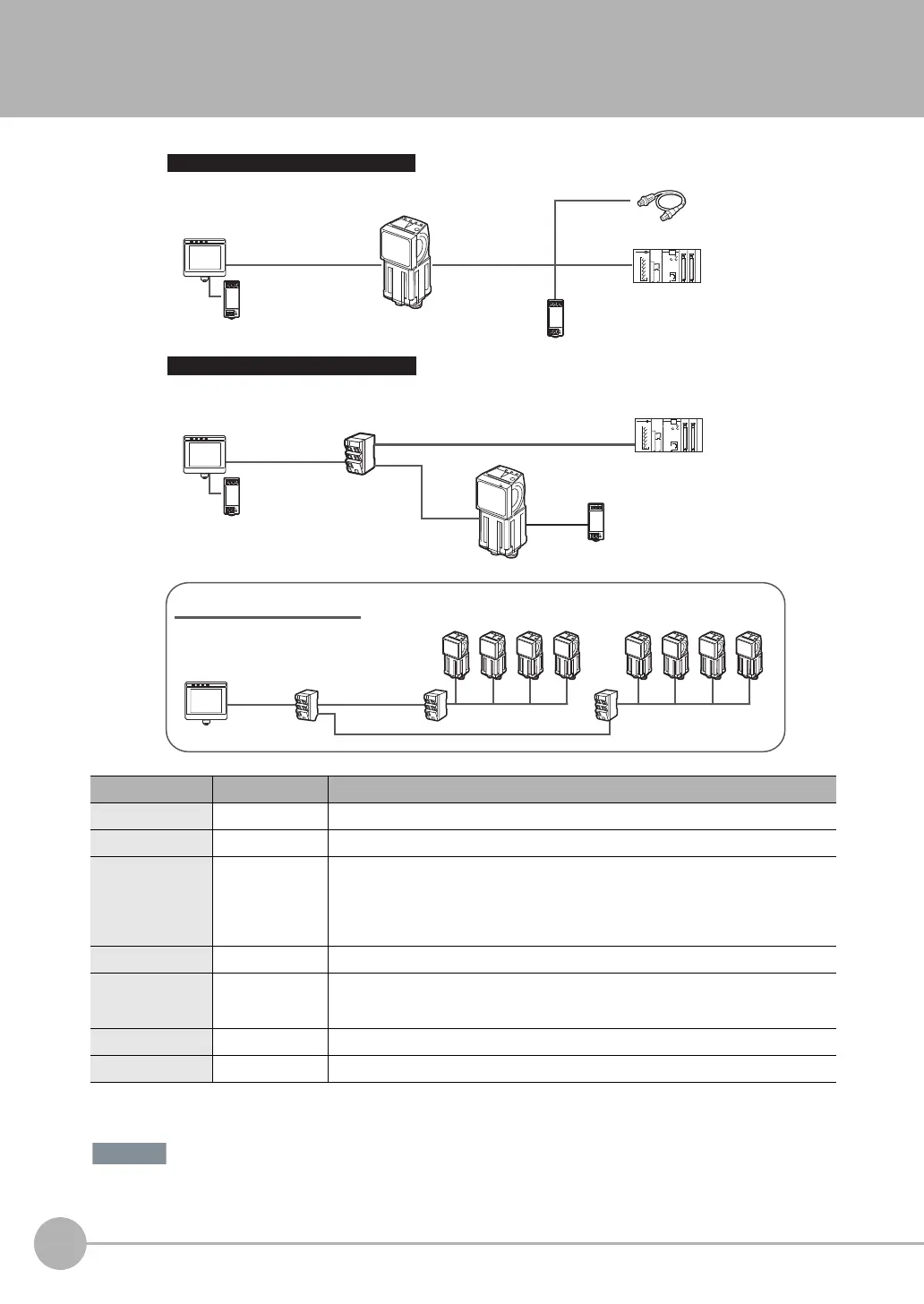

2-1 System Configuration
*1: The shape and dimensions of the Ethernet connector plug and jack are specified in ISO/IEC8877:1992 (JIS X 5110:1996) and RJ-45 of the
FCC regulations. To prevent connector connection failures, the structure of the jack of this product does not allow insertion of plugs that do not
comply with the standard. If a commercially available plug cannot be inserted, it is likely that the plug is non-compliant.
Do not connect network devices other than PLCs on the same network as the Touch Finder or computer. If
another device is connected, the responsiveness of displays and settings of the Touch Finder or computer may
become slow.
Product Model number Remarks
FQ Sensor
FQ-CR2
@@@@@
-M
This is the Sensor.
Touch Finder FQ-D@@ This is a setup console (Software Version 1.3 or higher).
PC Tool --- The PC Tool can be used instead of the Touch Finder (Software Version 1.3 or higher). If
you register as a member, you can download the free PC Tool as a special service to
purchasers.
Refer to the Member Registration Sheet that is enclosed with the Sensor for the member
registration procedure and the download procedure for special member software.
FQ Ethernet Cable FQ-WN0@@ Connects the Sensors to external devices such as the Touch Finder, computers, and PLCs.
Standard RJ45
Ethernet Cable
*1
--- Connects the Switching Hub to the Touch Finder, computers, and PLCs. Use a connector
that complies with the FCC RJ45 standard. (STP (shielded twisted-pair) cable, category 5e
or 6, impedance: 100 Ω)
I/O Cable FQ-WD0@@ Connects the Sensor to the power supply and external devices.
Switching Hub W4S1-0@@ Used to connect multiple Sensors to one Touch Finder or PC Tool.
Multiple Connection Sensors
Connecting to Ethernet
PLC
24-VDC power supply
24-VDC power
supply
FQ Ethernet Cable I/O Cable
Touch Finder or PC Tool
Setup Tool
FQ Sensor
Parallel Interface Connection
Trigger Sensor
Touch Finder or PC Tool
Setup Tool
Switching Hub
Switching HubSwitching Hub
Switching Hub
Touch Finder or PC Tool
Setup Tool
Standard RJ45 Ethernet Cable
Standard RJ45
Ethernet Cable
Standard RJ45
Ethernet Cable
Standard RJ45 Ethernet Cable
FQ Sensors (8 max.)
FQ Ethernet Cable FQ Ethernet Cable
Standard RJ45
Ethernet Cable
FQ
Sensor
24-VDC power
supply
Standard RJ45
Ethernet Cable
I/O Cable
PLC to control Sensor
24-VDC power
supply
Important
FQ Sensor User Manual.book 18 201年月8 金日 後230
