Changing the Scene to Change the Line Process
70
FQ-CR2 User’s Manual
7-1 Changing the Scene to Change the Line Process
What Are Scenes?
With an FQ Sensor, the inspection items that can be processed at the same time are registered as scenes. A
command input from an external device or a touch panel operation can be used to select a certain scene.
If a scene is registered for each type of measurement object or inspection, the line process can be changed
simply by changing the scene when the measurement object or inspection changes. A maximum of 32 screens
can be created.

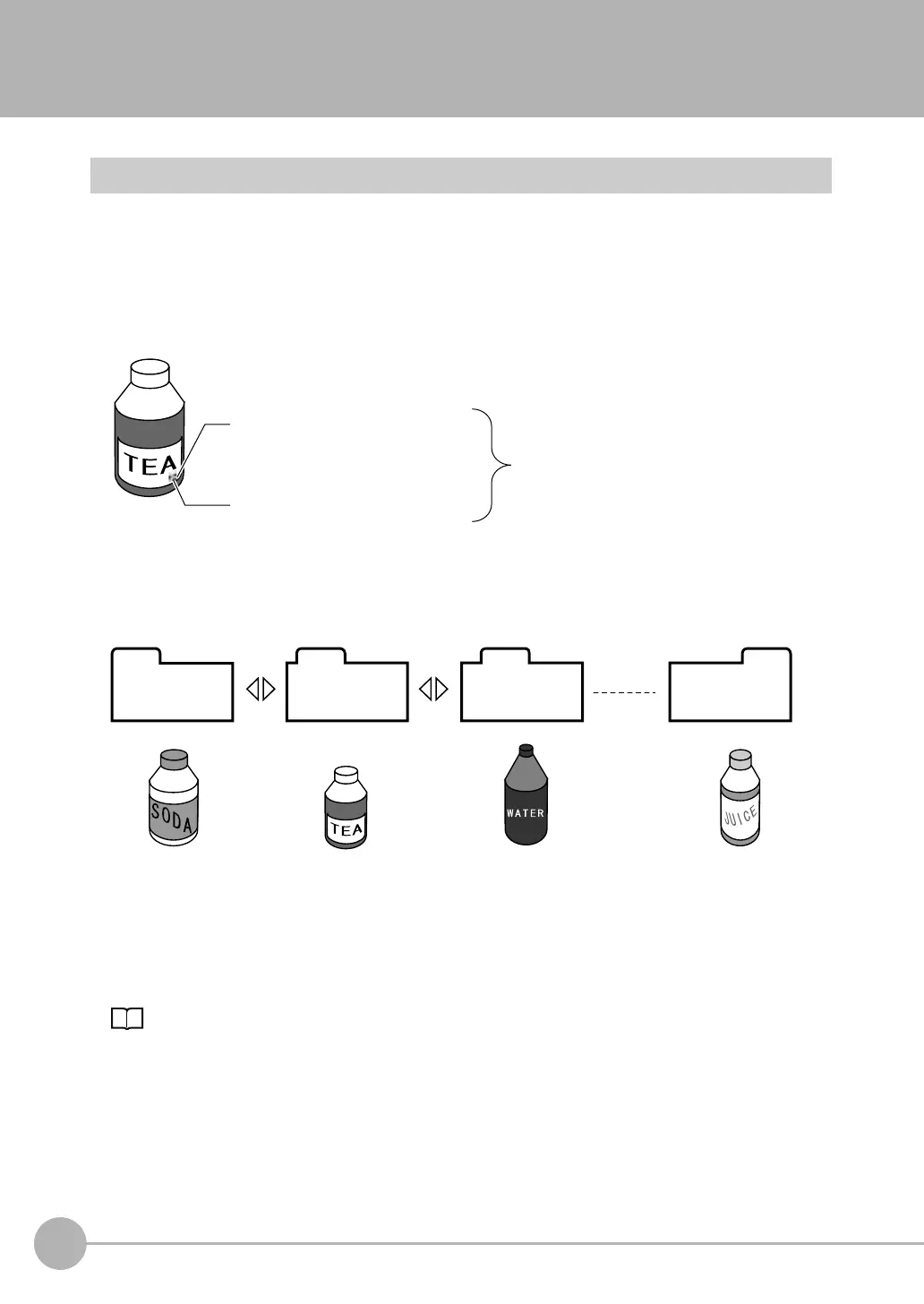

Example:
• Settings Included with Scenes
The following settings are changed when the scene is changed: Camera image ([Image] Tab Page) and
Inspection Items ([Inspect] Tab Page). The settings related to external I/O specifications that are included in
the output settings and the system settings for the overall Sensor are used for all of the scenes.
Refer to the following information for the data that is included in the scene data.
10-1 Menu Tables: p. 158
Inspection for
product A
Inspection for
product B
Inspection for
product C
Inspection for
product Z
Scene 1
Scene 2
Scene 0
Scene 31
Line Process Changes:
Scans 2D code on container
(Inspection Item 2)
Scans 2D code on container
(Inspection Item 0)
Multiple Inspection Items with different 2D
code scanning conditions can be created
and saved as one scene.
FQ Sensor User Manual.book 70 ページ ２０１１年７月８日 金曜日 午後２時３０分
To Next Page
