Display Functions
72
FQ-CR2 User’s Manual
7-2 Display Functions

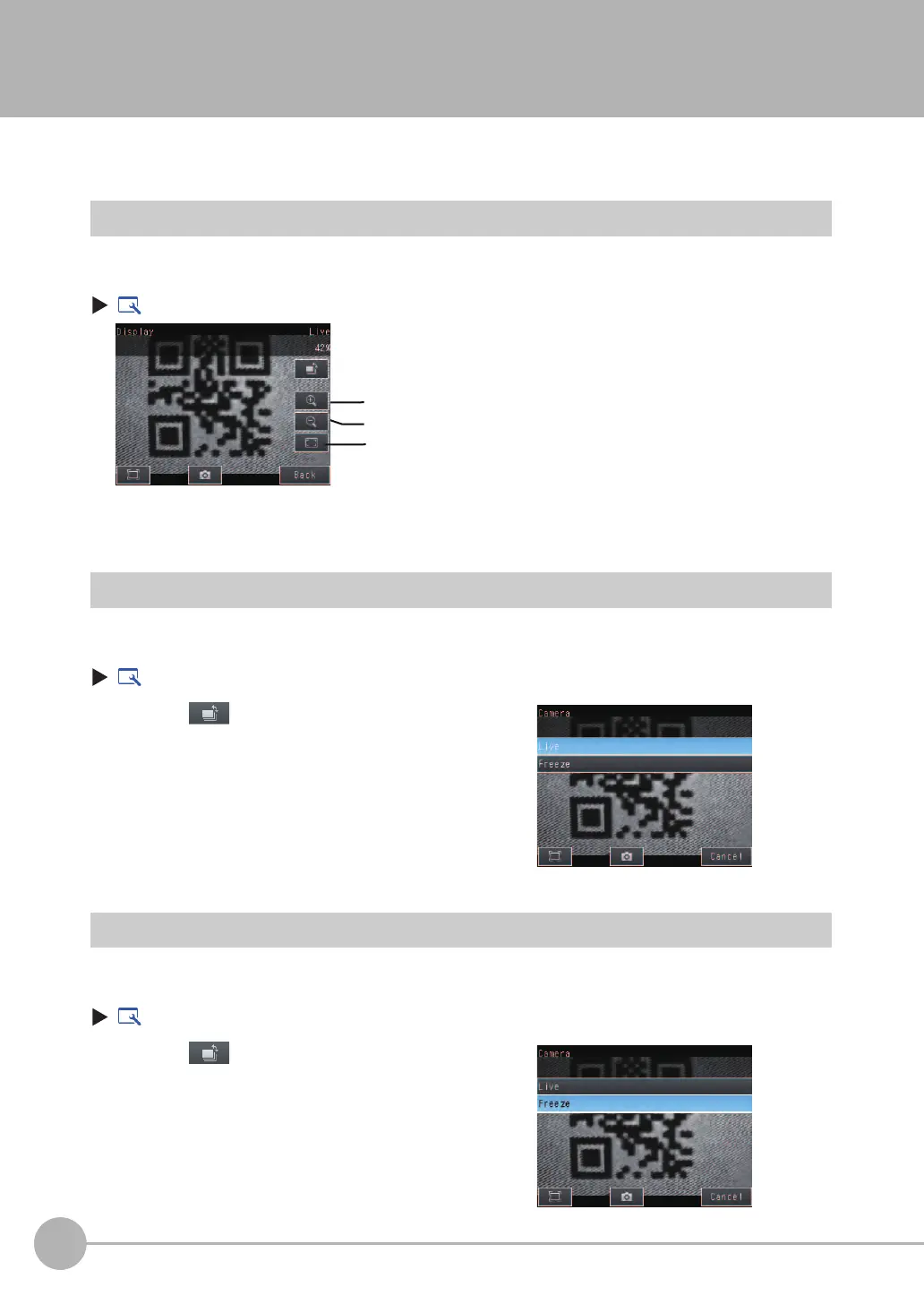

The procedures given in this section can be used to make the Sensor easier to use and the display easier to see.
Image Zoom
The display can be zoomed in or out to make the image easier to see.
(Setup Mode or Run Mode)
Press [Back] to end setting the display.
Displaying a Live Image
You can display a live image to check the image that is input by the Sensor in realtime.
(Setup Mode)
Displaying a Frozen Image
You can display a frozen image to stop image refreshing and display the last image that was input.
(Setup Mode)
4
1 Press .
2
Press [Camera].
3
Press [Live].
4
Press the [Back] Button to return to the [Display] Dis-
play.
1 Press .
2
Press [Camera].
3
Press [Freeze].
4
Press the [Back] Button to return to the [Display] Dis-
play.
Reduces the display.
Enlarges the display.
Fits the image to the display size.
