Saving Sensor Settings
FQ-CR2 User’s Manual
83
7
Convenient Functions

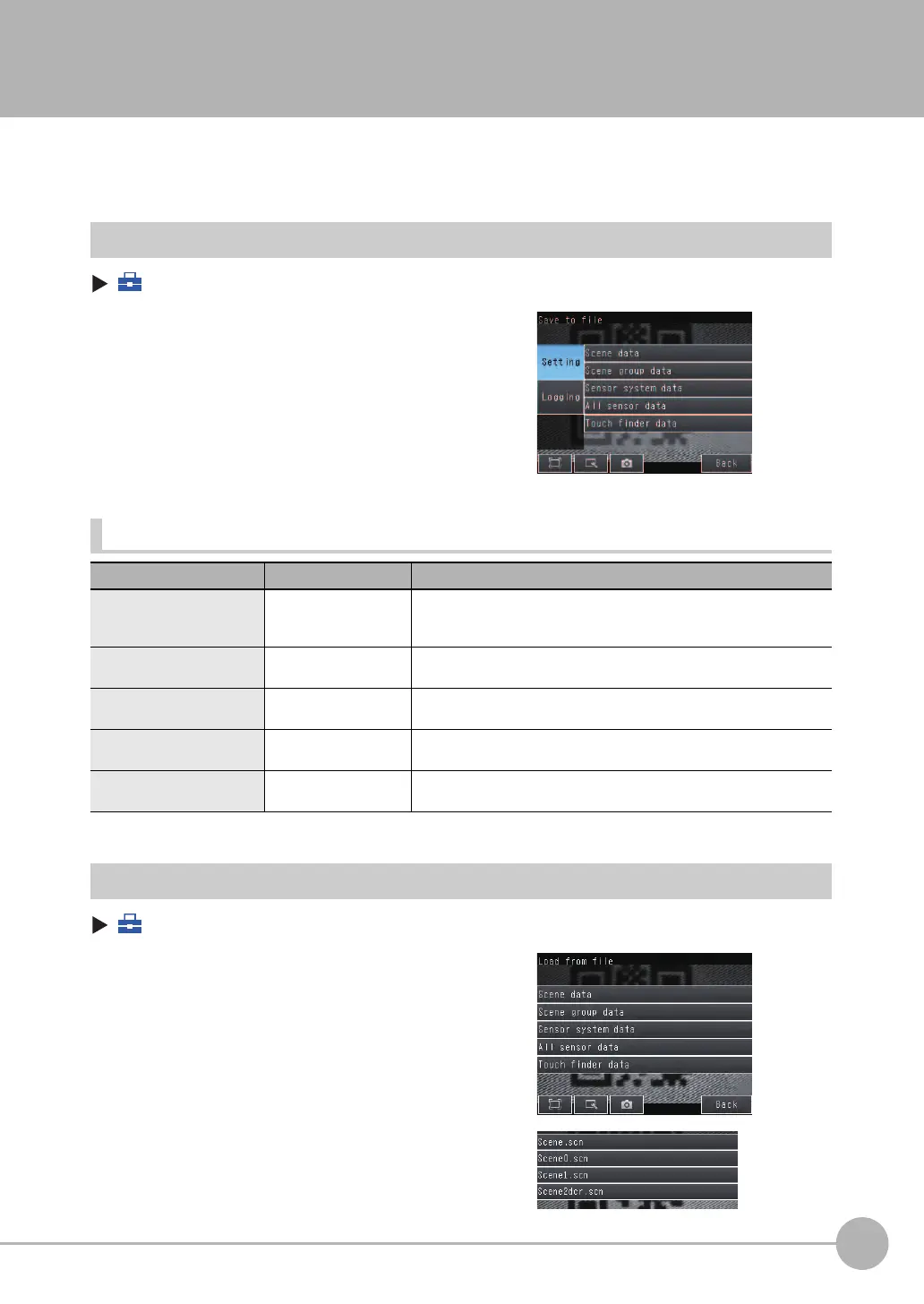

7-5 Saving Sensor Settings
The Sensor settings are saved in flash memory inside the Sensor.
This section describes how to back up the settings in and restore them from an SD card or other external
memory.
Backing Up Settings in External Memory
(Setup Mode) − [Save to file] − [Setting] Tab Page
Applicable Data
For the PC Tool, data will be saved in the following folder: \\..\My Documents\OMRON FQ
Restoring Data to the Sensor from External Memory
(Setup Mode) − [Load from file]
1 Press the data to save.
2
Enter the file name in 15 characters or less.
After entering the file name, press [OK]. The data will be
saved and the display will return to [Save to file].
Data Storage location Description
Scene data (The file name
extension is SCN.)
\sensor_name\SCN The following data is backed up for each scene.
• Settings for all inspection items
• Order of inspection items
Scene group data (The file
name extension is SGP.)
\sensor_name\SGP All scene data is backed up.
Sensor system data (The file
name extension is SYD.)
\sensor_name\SYD All system data in the Sensor is backed up.
The system data is the same for all scenes.
All Sensor data (The file
name extension is BKD.)
\sensor_name\BKD All settings in the Sensor (all scene data and Sensor system data) is
backed up.
Touch Finder data (The file
name extension is MSD.)
\MSD All settings in the Touch Finder are backed up.
1 Press the data to be restored.
2
The selected data will be read from external memory
and displayed.
Press the file to load.
