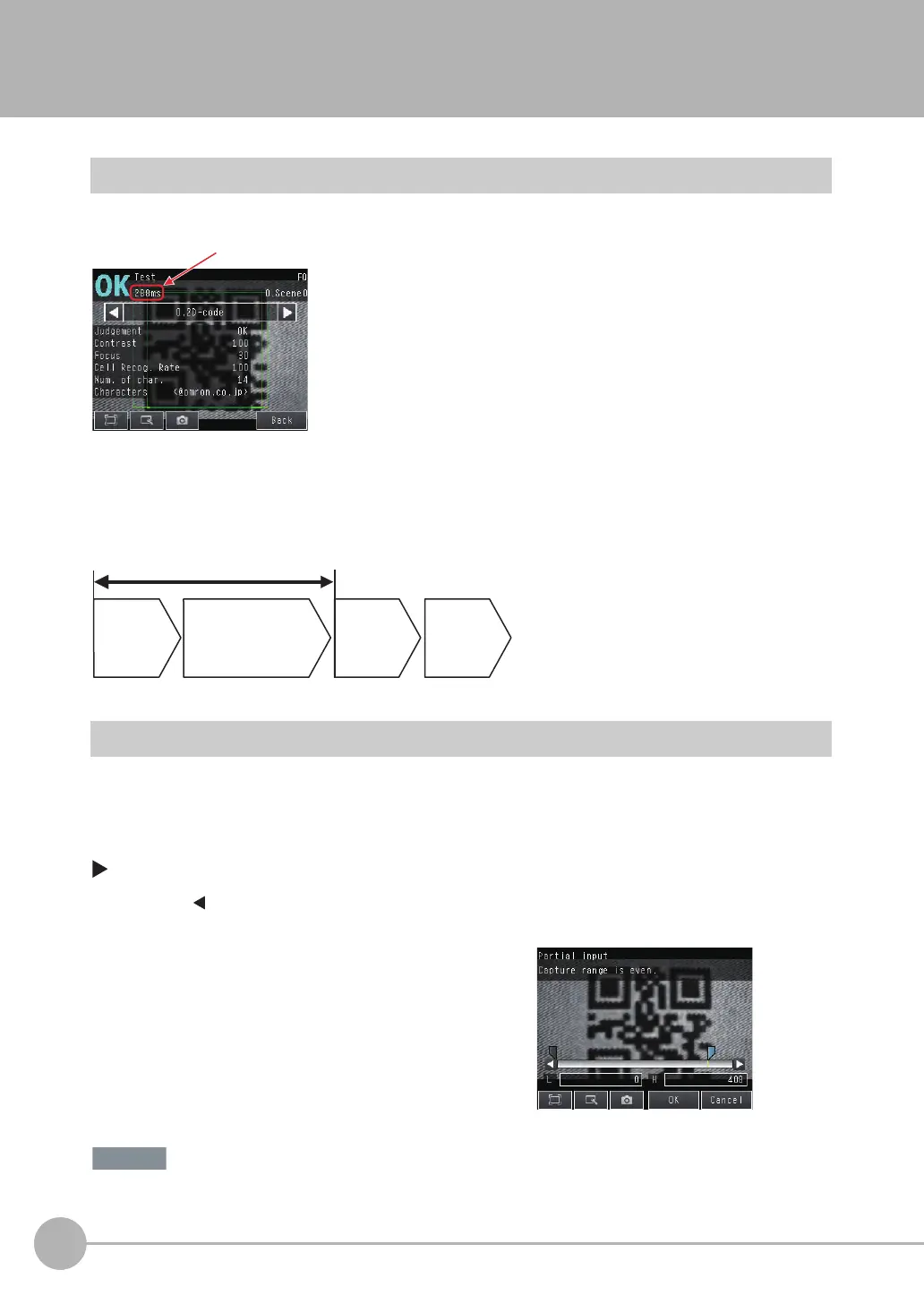

Shortening the Measurement Takt Time
56
FQ User’s Manual
5-2 Shortening the Measurement Takt Time
Checking the Measurement Takt Time
The measurement time of this Sensor can be checked from the Setup or Run Mode display.
The measurement time is the time taken from when a trigger is input until when all measurement processes are
executed.
During the measurement time, this Sensor will not accept the next trigger. This means that the measurement
time is the basic measurement takt time.
Increasing Image Input Speed
With the partial input function, it is possible to input only images that are in the region that is necessary for
measurements.
The image measurement region becomes smaller and thus the image input time is shortened.
[Image] [Camera setup]
If you use partial input, perform teaching again.
1 Press [ ] – [Partial input] on the right side of the dis-
play.
2 Change the input size.
3 Press [OK].
4 Press [Back].
Measurement
time
Display
Measurement
Image input
File
logging
Measurement time
= Measurement takt time
Inputting a trigger
Important
FQ Sensor User Manual.book 56 201年月8 金日 後230
