Logging Measurement Data and Image Data
76
FQ-CR2 User’s Manual

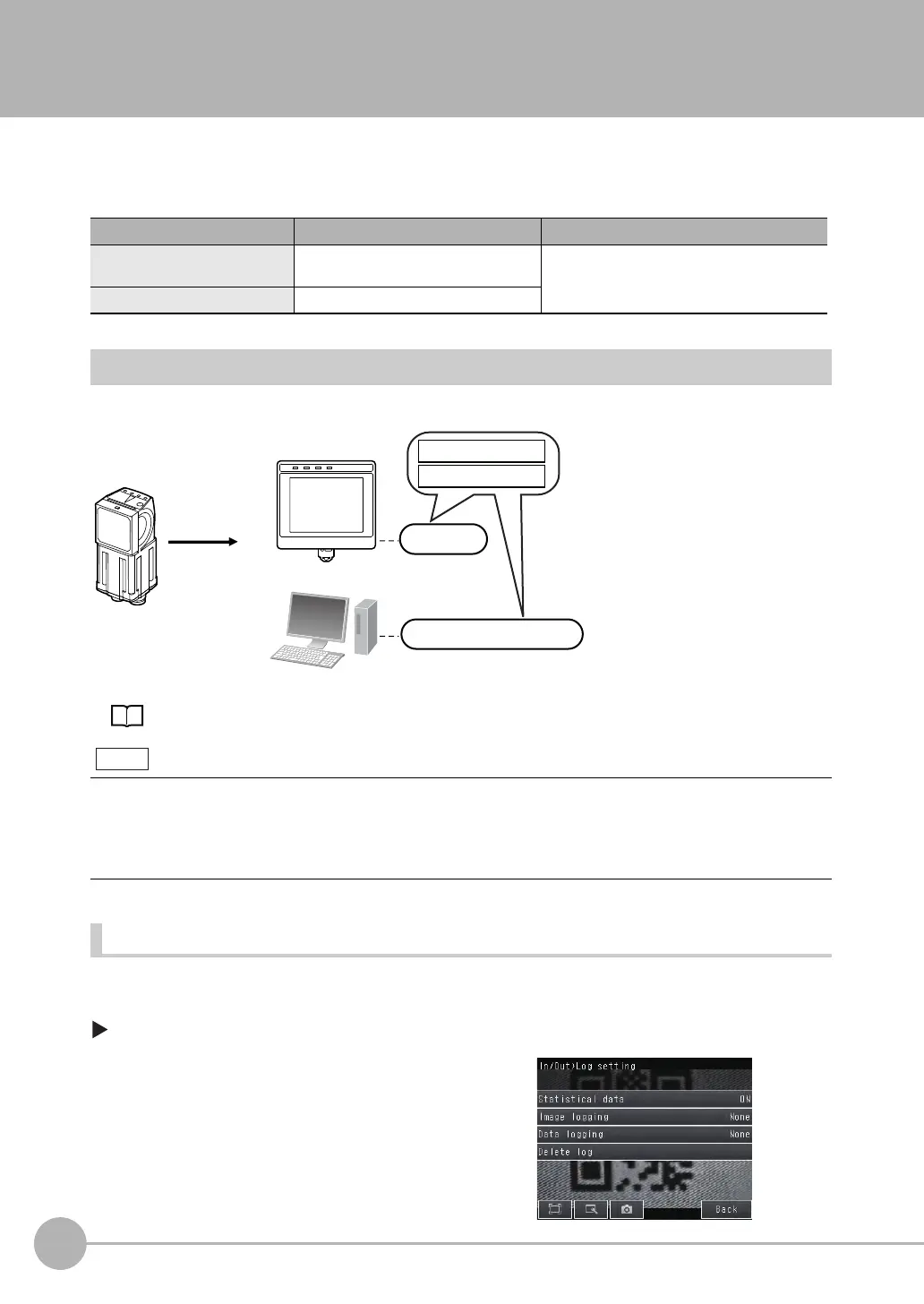

7-4 Logging Measurement Data and Image Data
There are two ways to log data. Data can be temporarily saved in memory inside the Sensor (called recent
results logging) or large amounts of data can be saved in SD cards or other external media (called file logging).
The amounts of data that can be logged are given in the following table.
Logging All Data (File Logging)
Large amounts of measurement and image data can be saved in files in external memory (SD cards or computer).
*1: Image data and measurement data can be logged in the same way as for the Touch Finder by installing the PC Tool for FQ.
System Configuration: p. 18
Setting the Data To Be Logged
You can select the data to be logged.
[In/Out] − [Log setting]
Logged data Recent results logging File logging
Measurement data (Measured val-
ues)
1,000 measurement values max. Up to the capacity of the external memory
Image data (Measured values) 20 images max.
Only the data for the Sensor that is currently being displayed will be logged even if more than one Sensor is con-
nected.
If multiple sensors are displayed, or if the most recent NG sensor is displayed, only the results of the sensor that was
displayed before changing to the other sensor monitor screen will continue to be logged. Simultaneous logging of the
results of multiple sensors is not possible.
1 Press the data for which to change the logging pa-
rameter.
2
Change the logging parameter and then press [Back].
Hard disk drive
Computer*1
Saved for
each
measurement
SD card
Data logging file
FQ Sensor
Image logging file
Touch Finder
Note
FQ Sensor User Manual.book 76 ページ ２０１１年７月８日 金曜日 午後２時３０分
