Advanced Console Server & RIM Gateway User Manual 103
to dial to establish the connection, defaults to *99***1#), Username/ Password (optional) and Dial string (optional
AT commands). However you generally will only need to enter your provider’s APN and leave the other fields blank
 Enter the carrier’s APN e.g. for AT&T (USA) simply enter i2gold, for T-Mobile (USA) enter epc.tmobile.com, for
InterNode (Aust) enter internode and for Telstra (Aust) enter telstra.internet
 If the SIM Card is configured with a PIN Code, you will be required to unlock the Card by entering the PIN Code.
If the PIN Code is entered incorrectly three times, then the PUK Code will be required to unlock the Card.

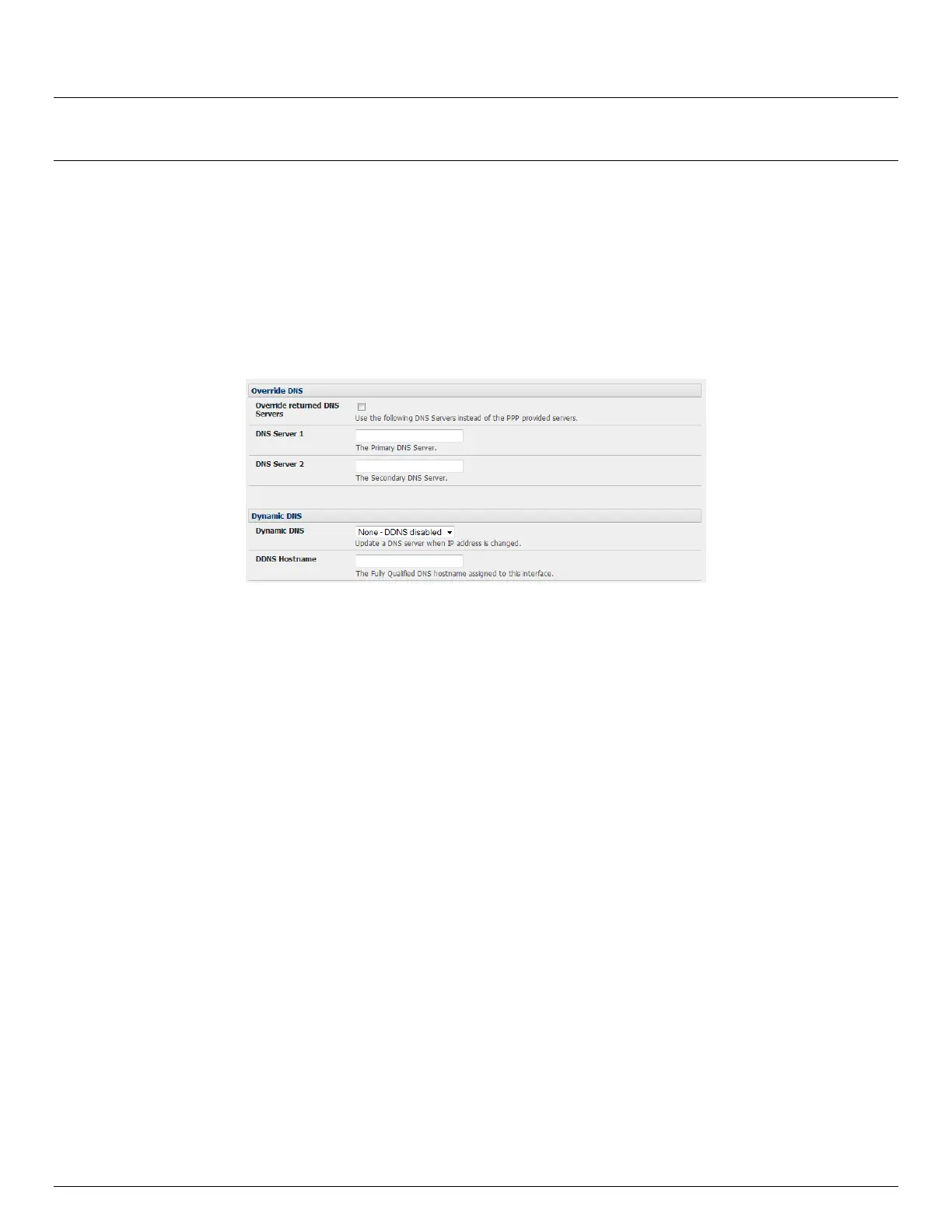

You may also need to set Override DNS to use alternate DNS servers from those provided by your carrier.
 To enable Override DNS, check the Override returned DNS Servers box. Enter the IP of the DNS servers into
the spaces provided.
 Check Apply and a radio connection will be established with your cellular carrier
5.6.2 Connect to the CDMA EV-DO carrier network
The ACM5004-GV, ACM5504-5-GV-I and IM4200-DAC-X2-GV models have an internal CDMA modem. The IM4200-
DAC-X2, ACM5000, ACM5500 and IM4004-5 models also support attaching an external USB CDMA cellular modem from
Sierra Wireless to one of its USB 2.0 ports. Both will connect to the Verizon network in North America.
After creating an account with the CDMA carrier some carriers require an additional step to provision the Internal Cellular
Modem, referred to as Provisioning. The ACM5004-GV (and IM4200-DAC-X2) supports:
- Over-the-Air Service Provisioning (OTASP) where modem specific parameters can be retrieved via a voice call to
a special phone number, and
- a manual process where the phone number and other parameters can be entered manually
