User Manual
Advanced Console Server & RIM Gateway User Manual 179
MONITOR managedups@192.168.0.1 1 username password slave
- managedups is the UPS Name of the Managed UPS
- 192.168.0.1 is the IP address of the Opengear console server
- 1 indicates the server has a single power supply attached to this UPS
- username is the Username of the Managed UPS
- password is the Password of the Manager UPS
There are NUT monitoring clients available for Windows computers (WinNUT).
If you have an RPC (PDU) it is also possible to shut down UPS powered computers and other equipment without them
have a client running (e.g. communications and surveillance gear). Set up a UPS alert and using this to trigger a script
which control a PDU to shut off the power (refer Chapter 15).
8.2.4 UPS alerts
You can set UPS alerts using Alerts & Logging: Alerts (refer Chapter 7- Alerts & Logging)
8.2.5 UPS status
You can monitor the current status of your network, serially or USB connected Managed UPSes and any configured
Remote UPSes

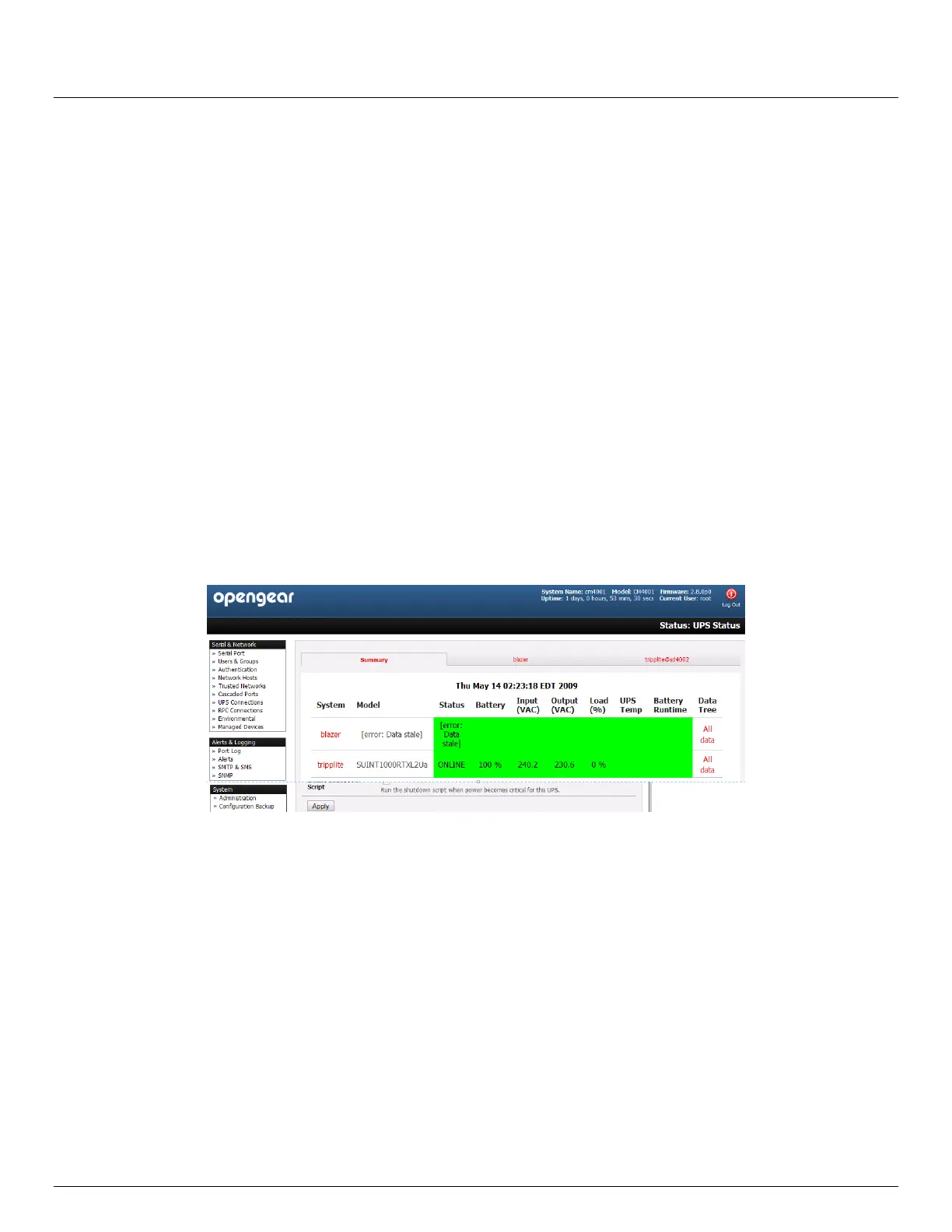

 Select the Status: UPS Status menu and a table with the summary status of all connected UPS hardware will be
displayed
 Click on any particular UPS System name in the table and you will be presented with a more detailed graphical
information on the select UPS System
