User Manual
Advanced Console Server & RIM Gateway User Manual 105
Manual Activation:
Some carriers may not support OTASP in which case it may be necessary to manually provision the modem.

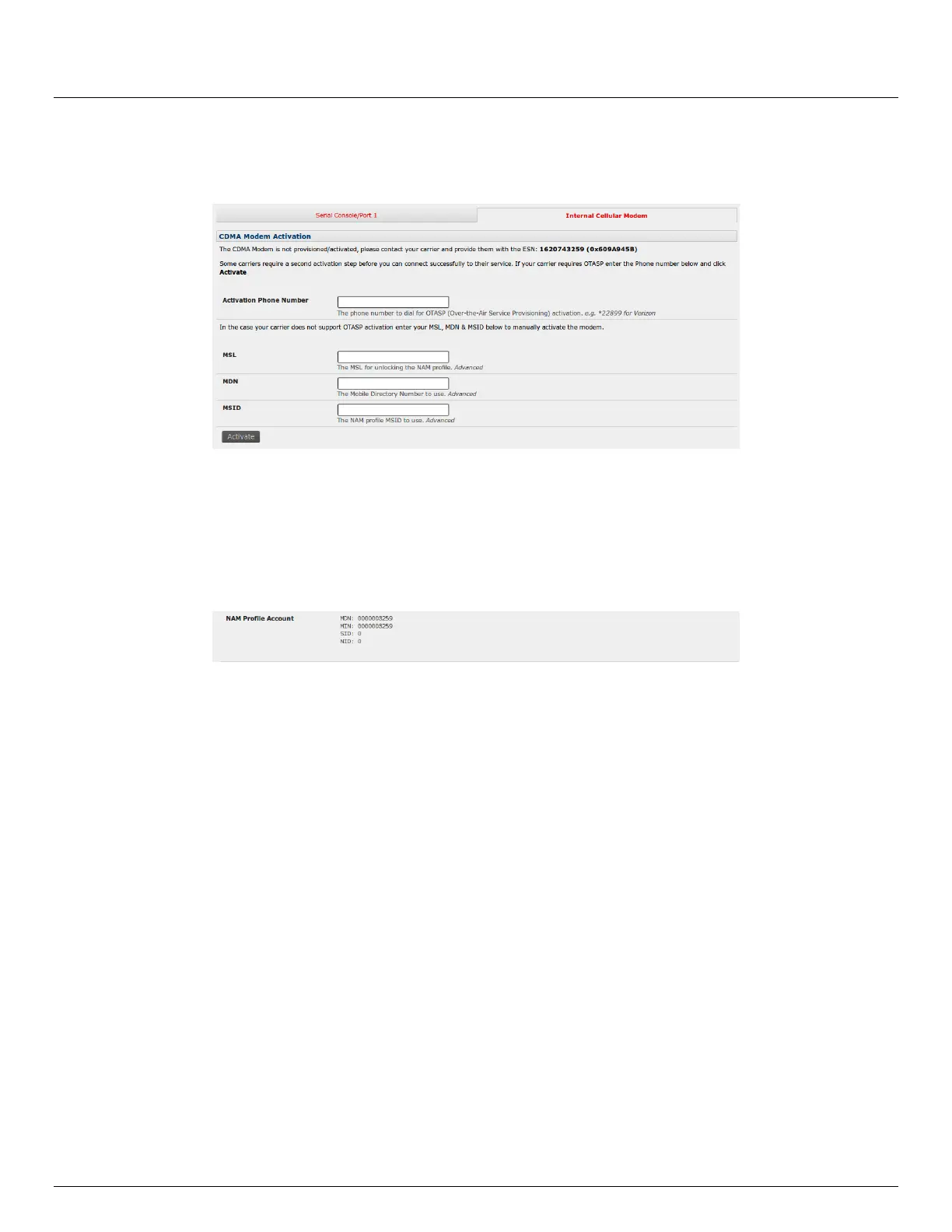

Select Internal Cellular Modem panel on the System: Dial menu
Enter the MSL, MDN and MSID values. These values are specific to your carrier and for manual activation you
will have to investigate what values your carrier uses in each field. For example Verizon have been known to use
an MSL of 000000 and the phone number assigned to the Opengear device as both the MDN and MSID with no
spaces or hyphens e.g. “5551231234” for “555-123-1234”
Click Activate. If no errors occur you will see the new values entered into the NAM Profile at the Cellular page
on Status: Statistics
Navigate to the Internal Cellular Modem tab on System: Dial. To connect to your carriers 3G network enter the
appropriate phone number (usually #777) and a Username and Password if directed to by your account/plan
documentation
Select Enable and then click Apply to initiate the Always On Out-of-Band connection
5.6.3 Verify cellular connection
Out-of-band access is enabled by default so the cellular modem connection should now be on.
You can verify the connection status from the Status: Statistics
o Select the Cellular tab and in Service Availability verify Mode is set to Online
o Select Failover& Out-of-Band and the Connection Status reads Connected
o You can check your allocated IP address
