Chapter 3: Initial System Configuration
44 Console Server & RIM Gateway User Manual

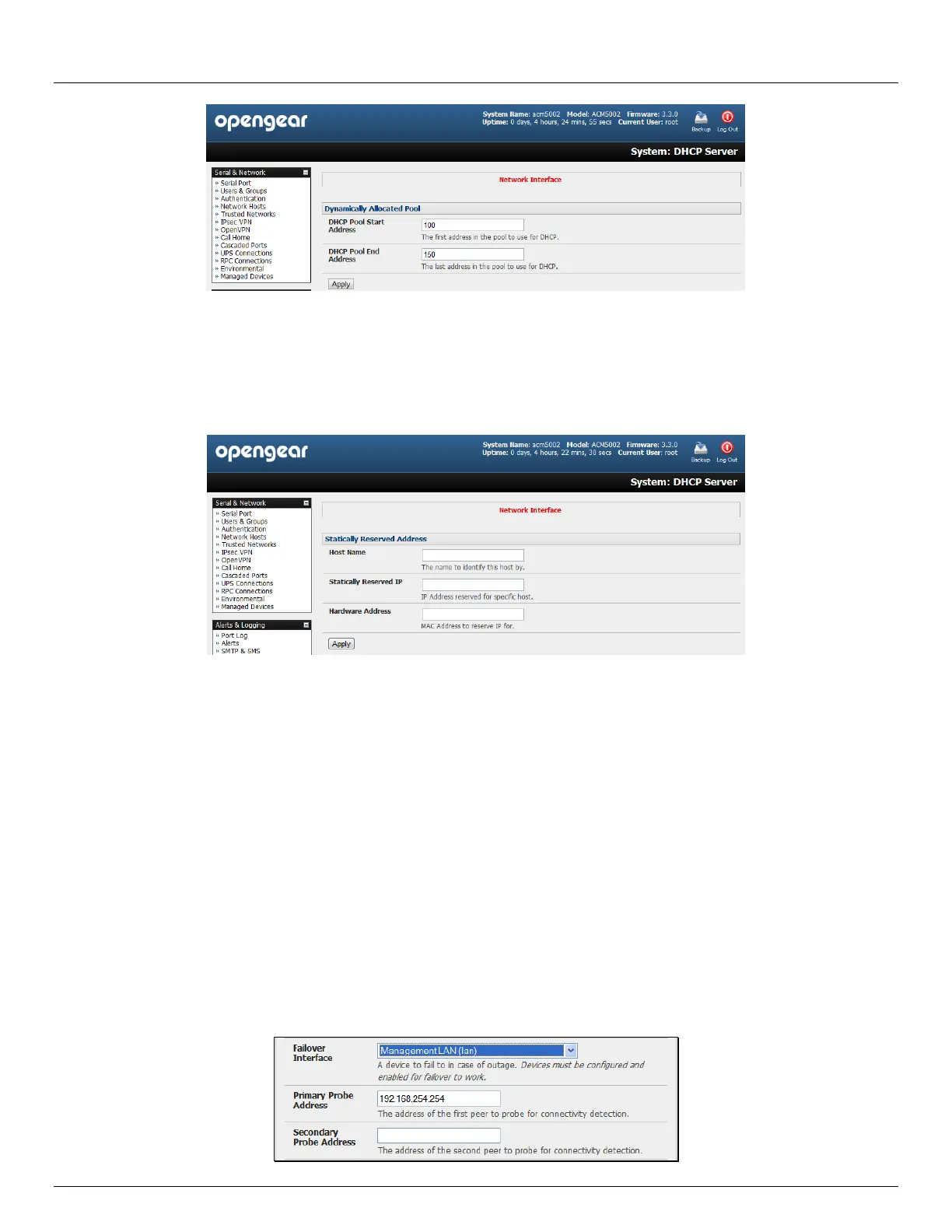

The DHCP server also supports pre-assigning IP addresses to be allocated only to specific MAC addresses and reserving
IP addresses to be used by connected hosts with fixed IP addresses. To reserve an IP addresses for a particular host:
 Click Add in the Reserved Addresses field
 Enter the Hostname, the Hardware Address (MAC) and the Statically Reserved IP address for the DHCP client
and click Apply
When DHCP has initially allocated hosts addresses it is recommended to copy these into the pre-assigned list so the
same IP address will be reallocated in the event of a reboot.
3.6.3 Select Failover or broadband OoB
The IM4200 family, ACM5508-2-I/M, ACM5504-5-G-I, IM4004-5 and ACM5004-2 console servers provide a failover option
so in the event of a problem using the main LAN connection for accessing the console server; an alternate access path is
used.
By default the failover is not enabled. To enable:
 Select the Network page on the System: IP menu
 Now select the Failover Interface to be used in the event of an outage on the main network. This can be:
o an alternate broadband Ethernet connection (which would be the Network/LAN2 port on IM4200 family
and ACM5004-2 or ETH 1 on the IM4004-5) or
o the IM4200 family internal modem or
o an external serial modem/ISDN device connected to the IM42xx Console port (for out-dialing to an ISP or
the remote management office)
