User Manual
Advanced Console Server & RIM Gateway User Manual 169

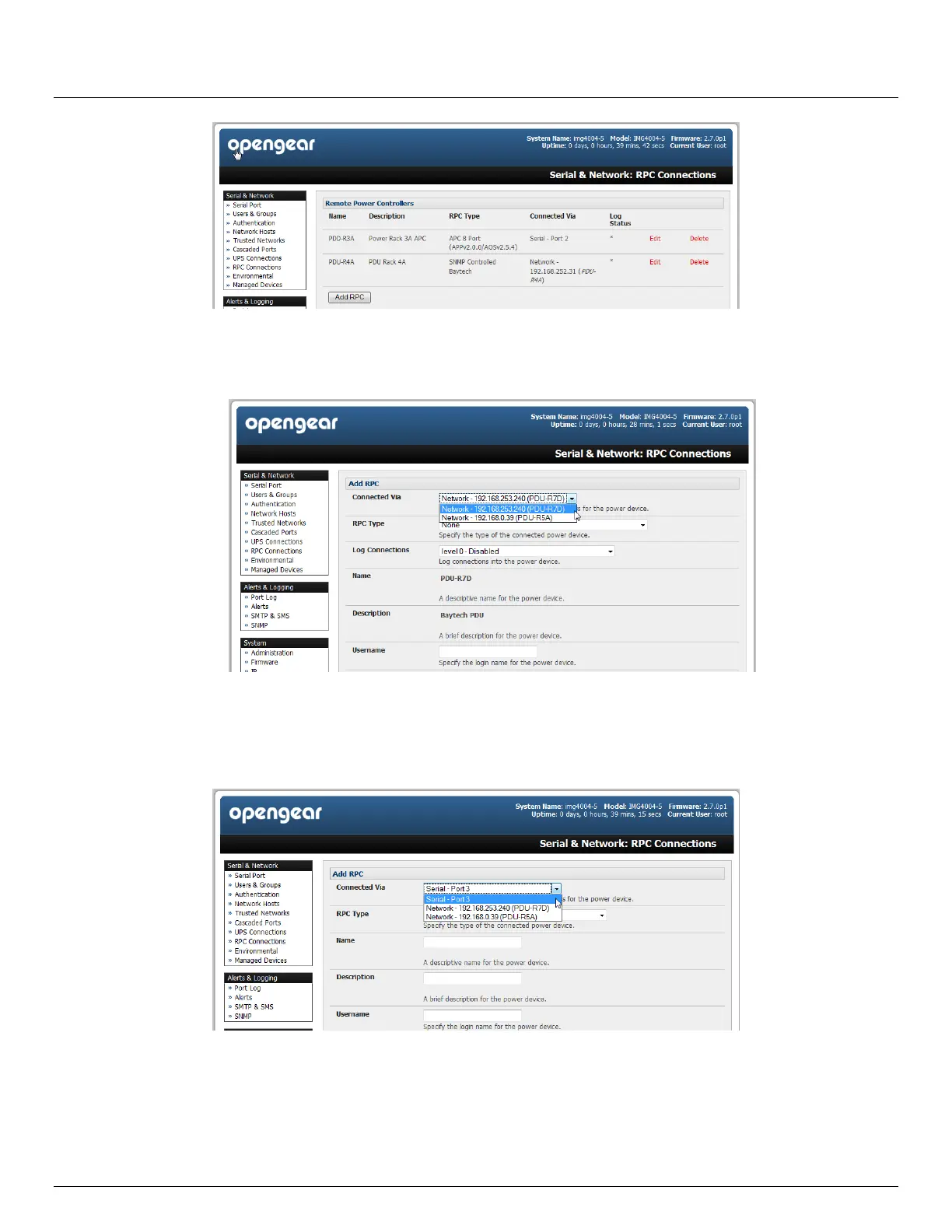

 Click Add RPC
 Connected Via presents a list of serial ports and network Host connections that you have set up with device type
RPC (but have yet to connect to a specific RPC device):
- When you select Connect Via for a Network RPC connection then the corresponding Host
Name/Description that you set up for that connection will be entered as the Name and Description for
the power device
- Alternately if you select to Connect Via a Serial connection then you will need to enter a Name and
Description for the power device
 Select the appropriate RPC Type for the PDU (or IPMI) being connected:
- If you are connecting to the RPC via the network you will be presented with the IPMI protocol options and
the SNMP RPC Types currently supported by the embedded Network UPS Tools
