User Manual
Advanced Console Server & RIM Gateway User Manual 175
 For serial UPSes attach the UPS to the selected serial port on the console server. From the Serial and Network:
Serial Port menu, configure the Common Settings of that port with the RS232 properties etc required by the
UPS (refer Chapter 4.1.1 Common Settings). Then select UPS as the Device Type
 Similarly for each network connected UPS go to Serial & Network: Network Hosts menu and configure the UPS
as a connected Host by specifying it as Device Type: UPS and clicking Apply
 No such configuration is required for USB connected UPS hardware

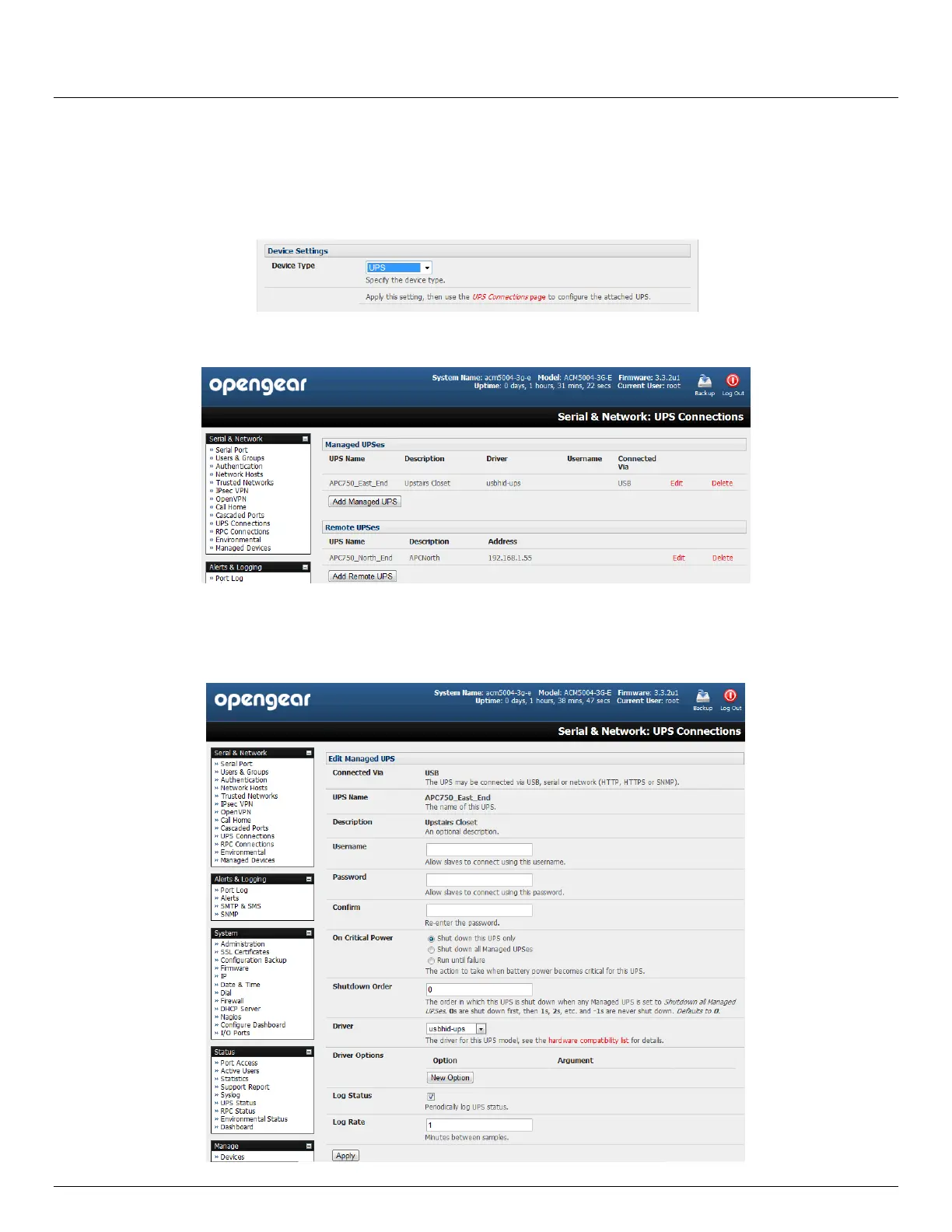

 Select the Serial & Network: UPS Connections menu. The Managed UPSes section will display all the UPS
connections that have already been configured.
 Click Add Managed UPS
