Advanced Console Server & RIM Gateway User Manual 91

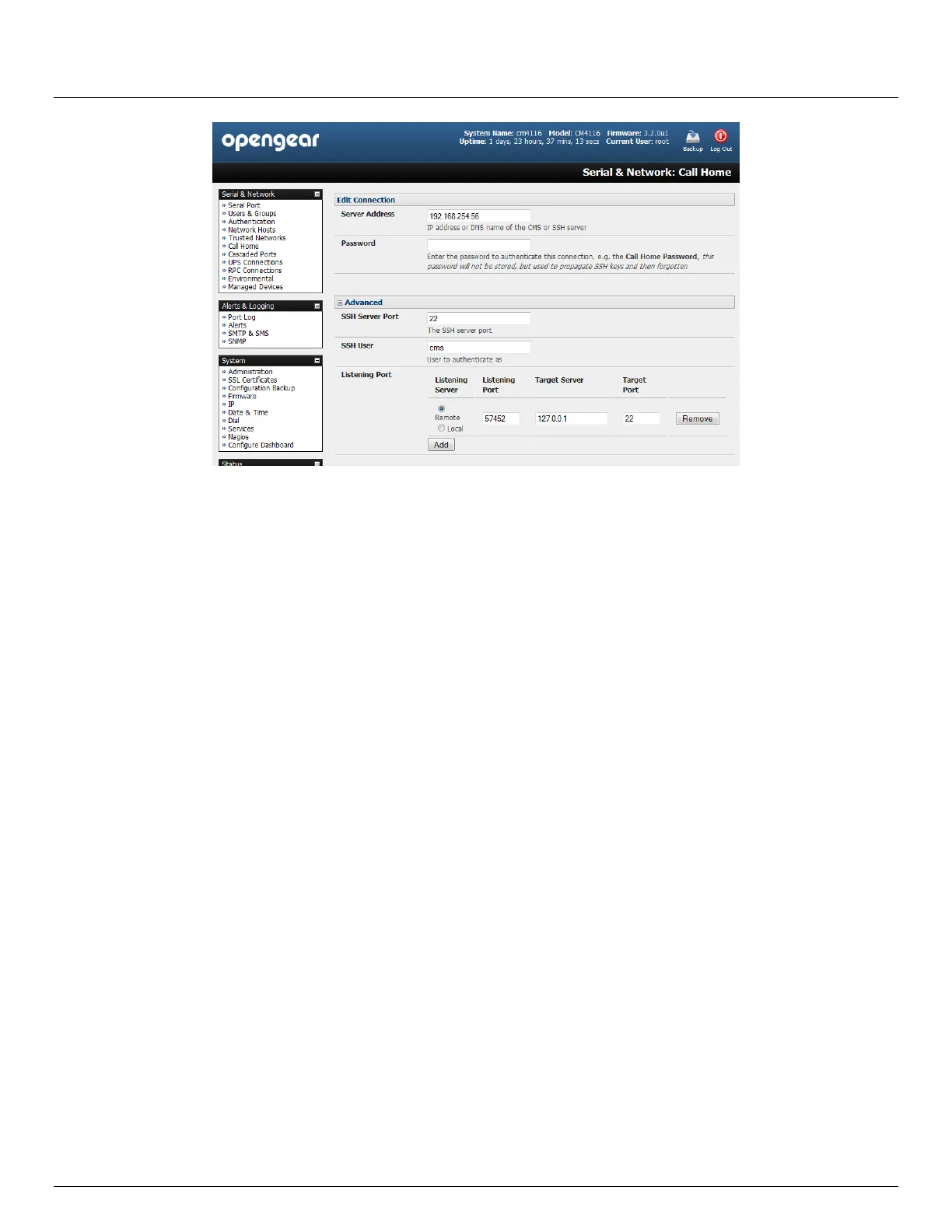

By selecting Listening Server, you may create a Remote port forward from the Server to this unit, or a Local port forward

from this unit to the Server:

 Specify a Listening Port to forward from, leave this field blank to allocate an unused port

 Enter the Target Server and Target Port that will be the recipient of forwarded connections
