■ ATEX, IECEx, EAC explosionproof
Use attached cable gland. It is needed to use rubber packing which fits with the outer diameter of using
cable for the cable gland. The cable outer diameters fitting to attached rubber packings are as follows;
Screw Size: G3/4 or M25×1.5 Screw Size: G3/4 or M25×1.5
Remarks) The union part of cable gland (screw size part from the above drawing) is able to be selected from 2
kinds, G3/4 or M25 x 1.5.
Packing OD Cable OD Remarks
φ9 φ8.1 to φ9.0
Used for the case of FISCO Explosionproof
(Only 1 piece for output)
φ10 φ9.1 to φ10.0
φ11 φ10.1 to φ11.0
Standard Feature
(4 kinds at the left are attached.)
φ12 φ11.1 to φ12.0
φ13 φ12.1 to φ13.0
φ14 φ13.1 to φ14.0

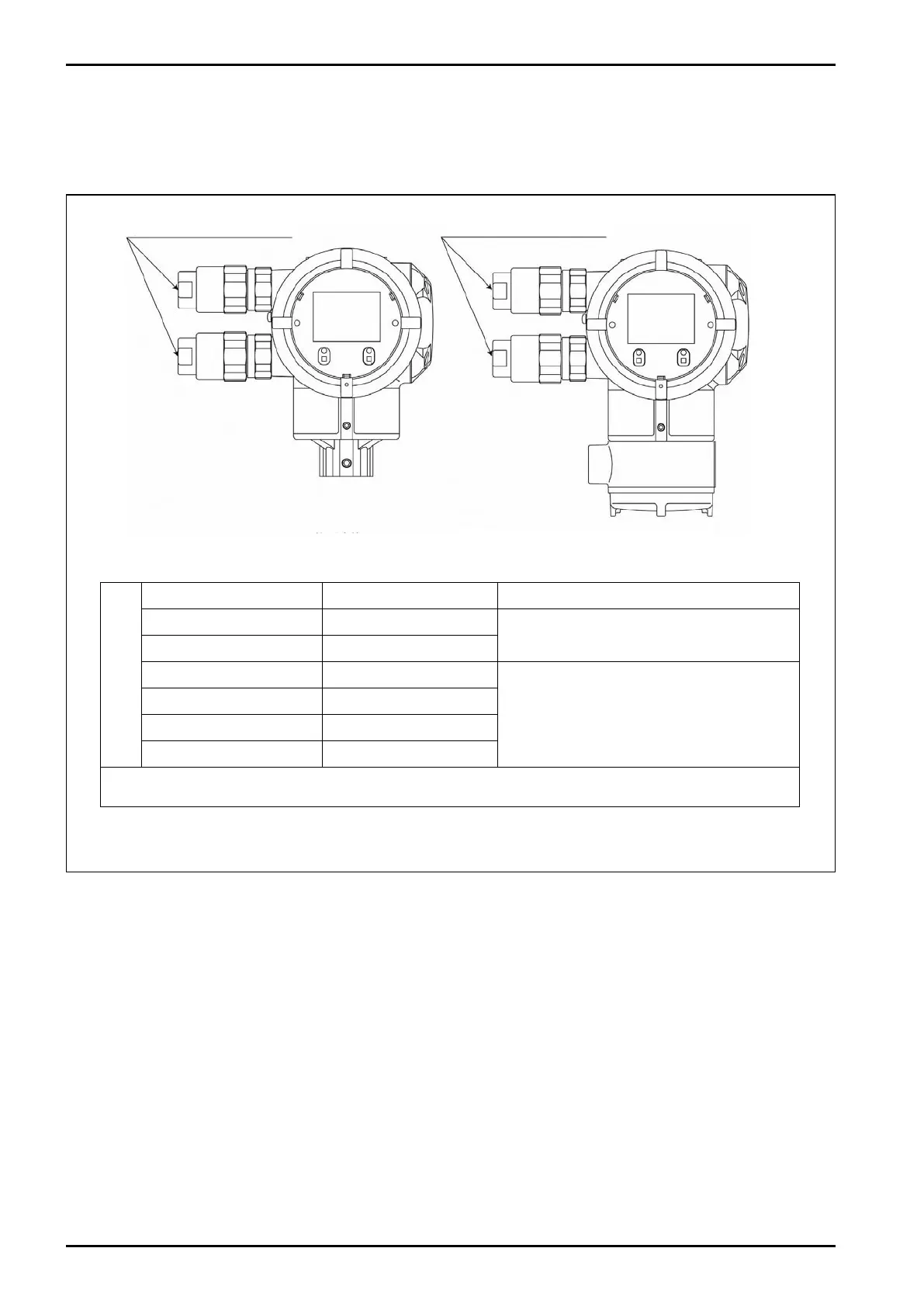

Accessories for Converter Electric Wire Connection Part: 2 pieces, Standard Feature Type Cable Gland
Unit: mm
Cable Gland
〈Caution〉
◆ Seal off properly not to make the infiltration of rain water and dust from cable, rubber packing, screw
tightening part and so on.
◆ The use of parts other than attached cable gland is prohibited.
◆ Do not install equipment while leaving the connection of blanking plug attached at shipping.
◆ Please refer to our service center if any parts are missing, damaged and so on.
Integral Type Converter
Separate Type Converter
