■ CSA explosionproof
Adapters are already attached to the electric wire connection port. Use equipment under the status of
adapter connected.

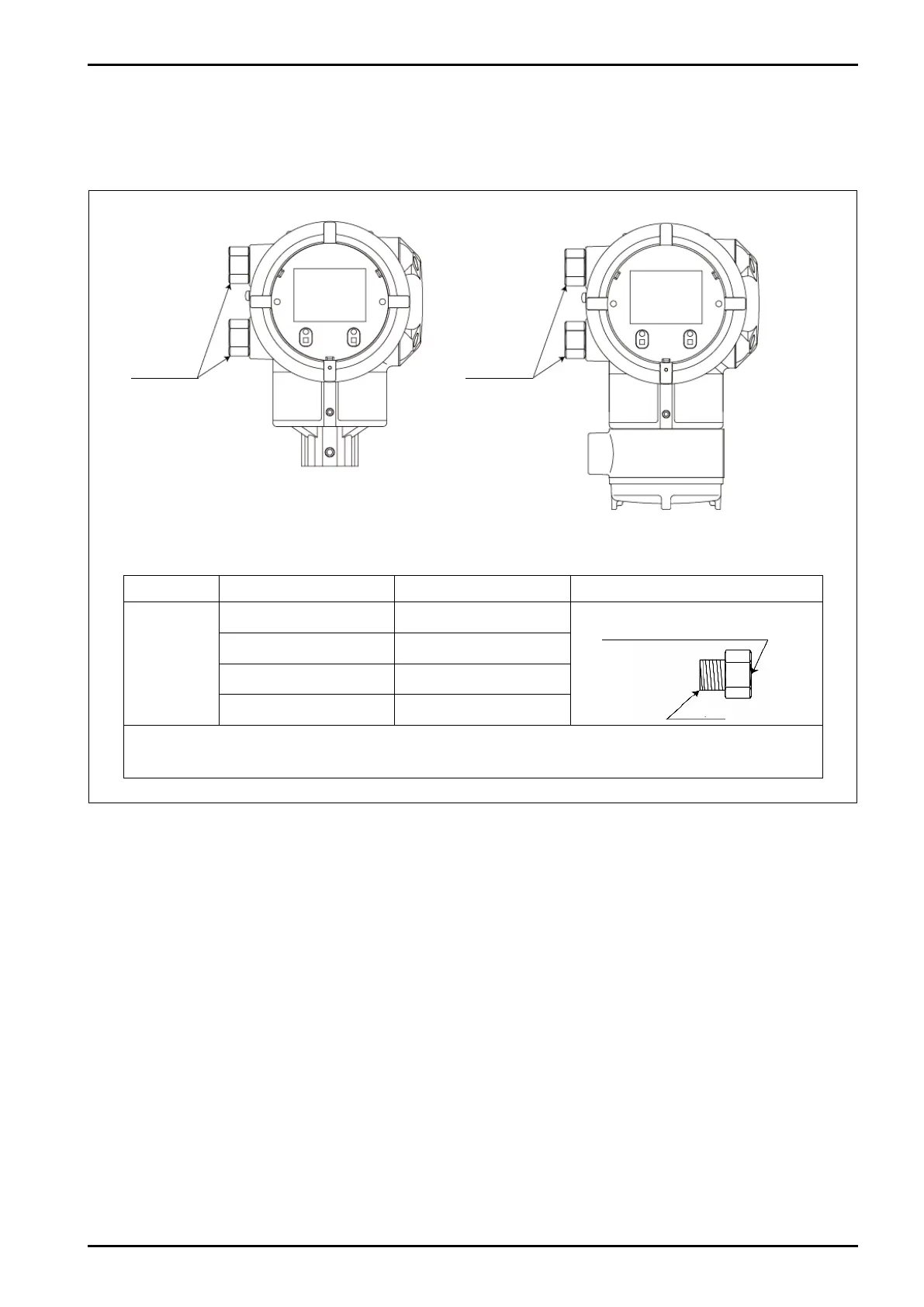

Manufacturer Model Size of Connecting Screw Outline Drawing of Adapter
REDAPT
AD-U-11-56・30 3/4”NPT
AD-U-11-56・29 1/2”NPT
AD-U-11-56・05 M25
AD-U-11-56・04 M20
Accessories for Converter Electric Wire Connection Part
Adapter 2
Unit: mm
Caution in Use of Adapter
◆ Seal off properly not to make the infiltration of rain water and dust from screw tightening part.
◆ Please refer to our service center if any parts are missing, damaged and so on.
Usable Cable Gland
・Conformance Certification : Should have the NRTL Authentication Article
・Explosion-proof Notation : Greater than Class Ⅰ, Zone 1, AEx d ⅡB
・Screw Joint Part : Should be able to connect to the adapter.
・IP Protection Class : Greater than IP66.
・Operating Temperature Range : －40℃ to +60℃
Adapter Adapter
Subjectedtotheconnecting
screwsizeontheLeft
G3/4
Adapter Adapter
Subjectedtotheconnecting
screwsizeontheLeft
G3/4
Integral Type Converter
Separate Type Converter
