High−speed Counter/Pulse Output/ PWM OutputFP0
9 − 11
9.3 High−speed Counter Function
9.3.3 I/O Allocation
The inputting, as shown in the table on section 9.2.1, will differ depending on the
channel number being used.
The output turned on and off can be specified from Y0 to Y7 as desired with instructions
F166 and F167.

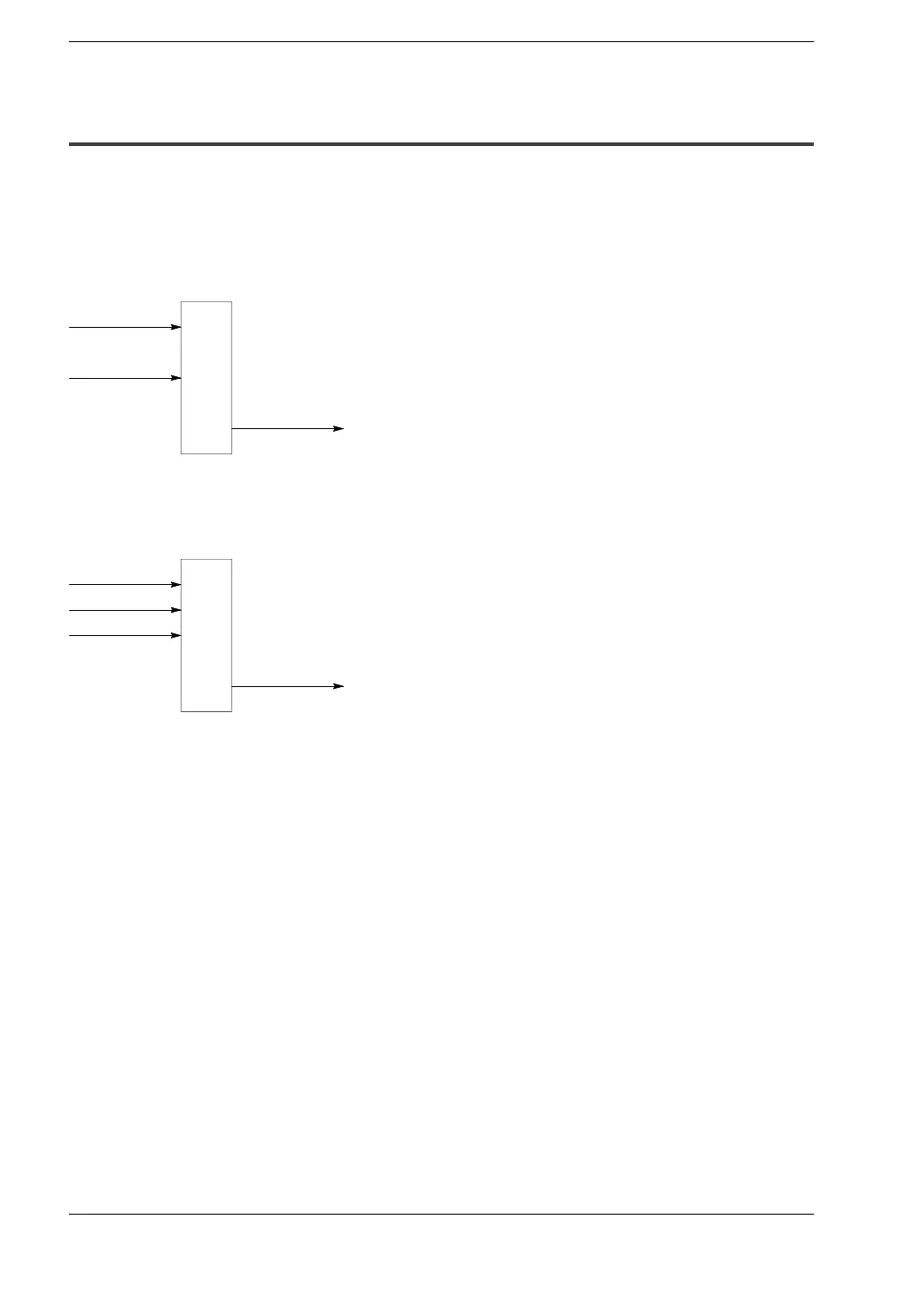

When using CH0 with incremental input and reset input
X0
X2
Yn
*
Count input
Reset input
On and off output
* The output turned on and off when values match can be specified from Y0 to Y7 as
desired.
When using CH0 with 2−phase input and reset input
X0
X2
A phase input
Reset input
Yn
*
On and off output
X1
B phase input
* The output turned on and off when values match can be specified from Y0 to Y7 as
desired.
