F0 MV, H 112, DT 300
X5
F0 MV, K 300, DT 301
F169 PLS, DT 300, H 0
F0 MV, H 122, DT 310
X6
F0 MV, K 300, DT 311
F169 PLS, DT 310, H 0
Pulse output control clear
DF/
X7
F0 MV, H 8, DT9052
F0 MV, H 0, DT9052
High−speed Counter/Pulse Output/ PWM OutputFP0
9 − 31

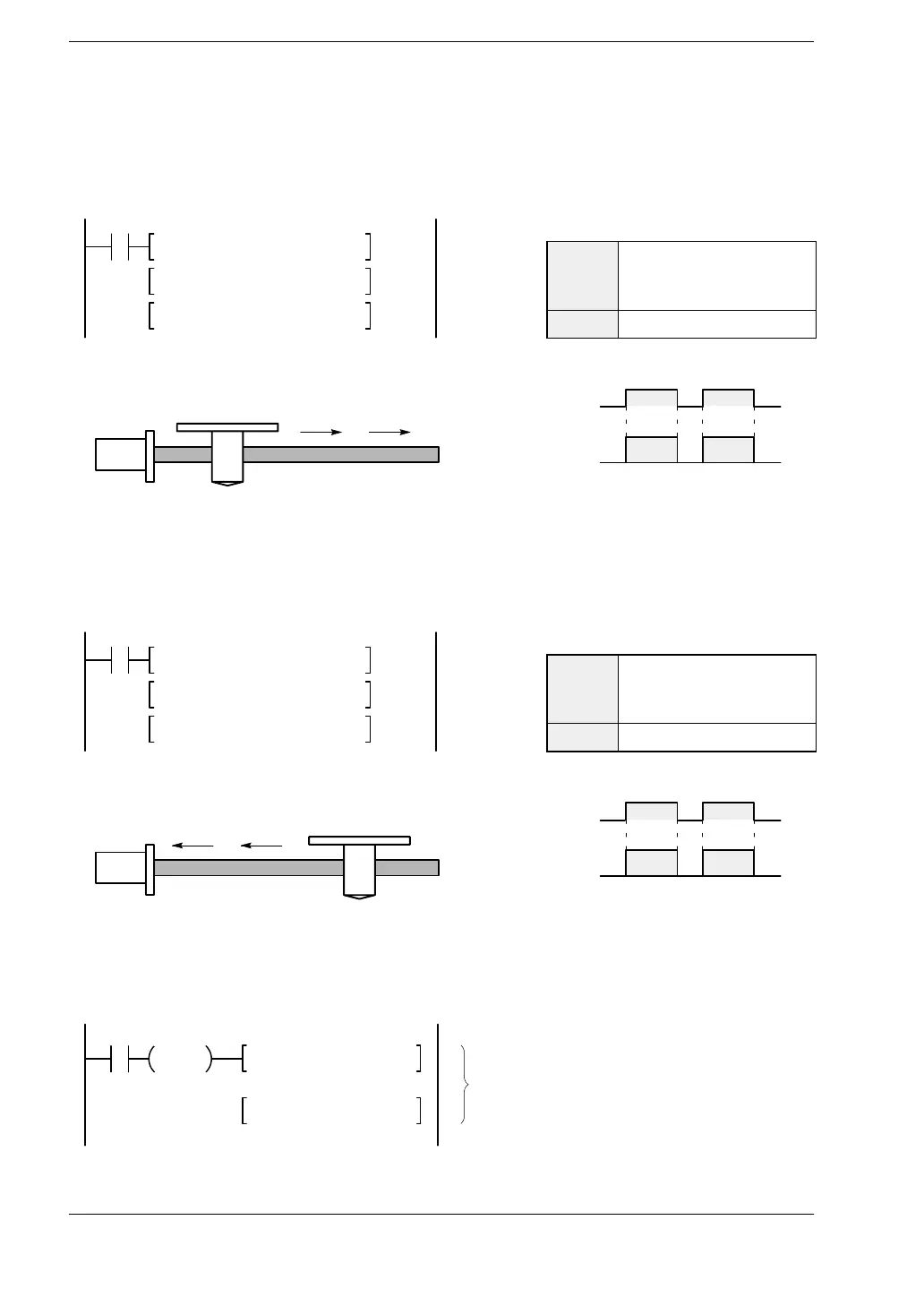

9.4 Pulse Output Function
JOG operation (plus direction)
While X5 is in the on state, a pulse is output from Y0. At this time, directional output Y2
does not turn on.
DT300 Control code: H112
[refer to “instruction
F169 (PLS)”]
DT301 Speed: 300 Hz
Motor
(− side) (+ side)
on
off
X5
300 Hz
0Hz
Y0(Pulse)
JOG operation (minus direction)
While X6 is in the on state, a pulse is output from Y0. At this time, directional output Y2
turns on.
DT310 Control code: H122
[refer to “instruction
F169 (PLS)”]
DT311 Speed: 300 Hz
Motor
(− side) (+ side)
on
off
X6
300 Hz
0Hz
Y0(Pulse)
Emergency stop (over limit)
If X7 turns off while a pulse is being output from Y0, the output of the pulse is stopped.
