14-16
FP0

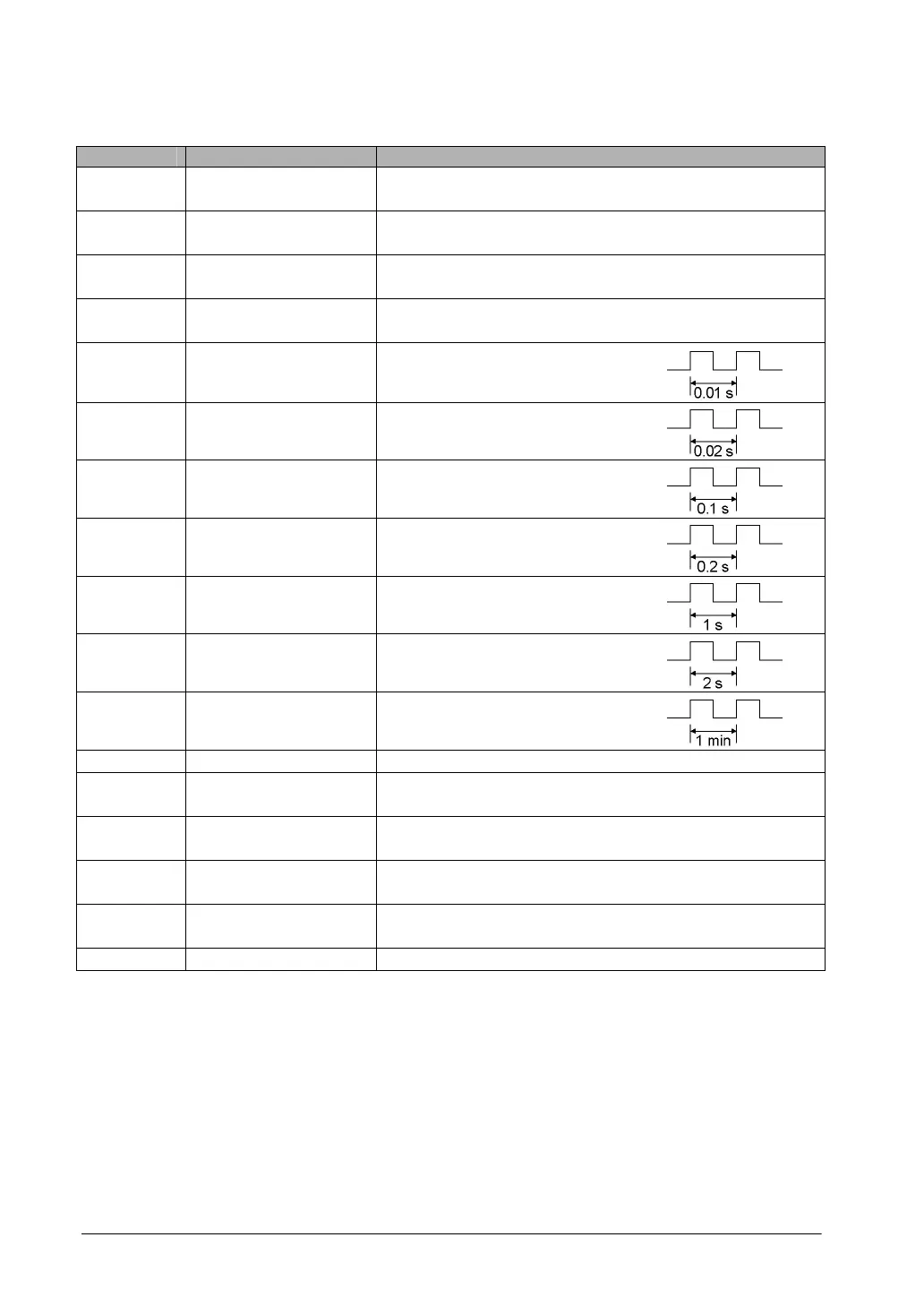

Address Name Description
R9013 Initial on pulse relay
Turns on only at the first scan in the operation.
Turns off from the second scan and maintains the off state.
R9014 Initial off pulse relay
Turns off only at the first scan in the operation.
Turns on from the second scan andmaintains the on state.
R9015
Step ladder initial on
pulse relay
Turns on for an instant only in the first scan of the process
the moment step ladder process is opened.
R9016,
R9017
Not used
-
R9018
0.01 s clock pulse
relay
Repeats on/off operations in 0.01 s
cycles.
R9019
0.02 s clock pulse
relay
Repeats on/off operations in 0.02 s
cycles.
R901A 0.1 s clock pulse relay
Repeats on/off operations in 0.1 s
cycles.
R901B 0.2 s clock pulse relay
Repeats on/off operations in 0.2 s
cycles.
R901C 1 s clock pulse relay
Repeats on/off operations in 1 s
cycles.
R901D 2 s clock pulse relay
Repeats on/off operations in 2 s
cycles.
R901E
1 min clock pulse
relay
Repeats on/off operations in 1 min
cycles.
R901F Not used -
R9020 RUN mode flag
Turns off while the mode selector is set to PROG.
Turns on while the mode selector is set to RUN.
R9021 to
R9025
Not used -
R9026
(*Note)
Message flag Turns on while the F149 (MSG) instruction is executed.
R9027
(*Note)
Remote mode flag Turns on while the mode selector is set to REMOTE.
R9028 Not used -
Note) Used by the system.
