Panasonic FP0 - Page 292

14-50

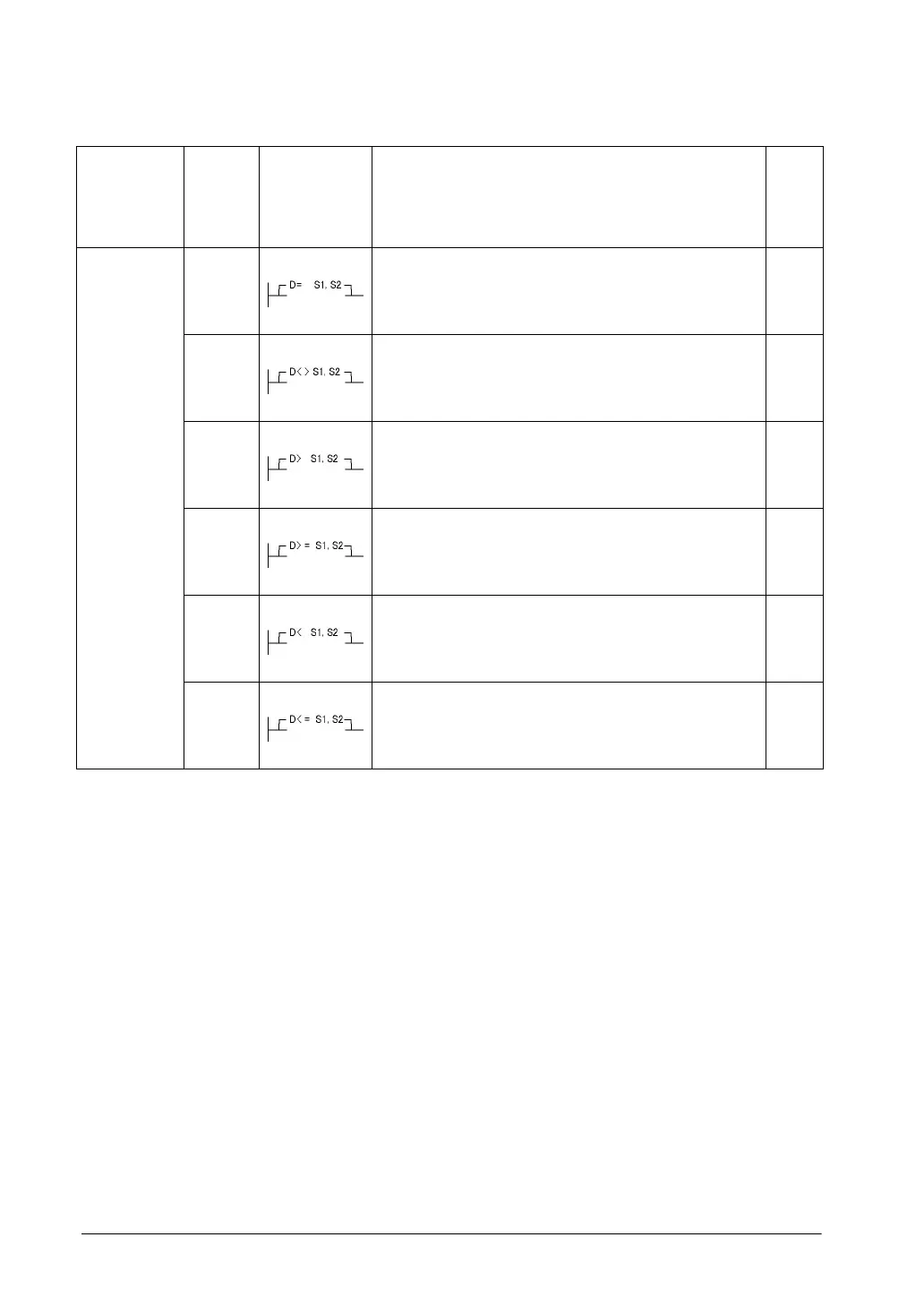

Name Boolean Symbol Description Steps
STD= Begins a logic operation by comparing two 32-bit data in
the comparative condition “(S1+1, S1)=(S2+1, S2)”.
9
STD<> Begins a logic operation by comparing two 32-bit data in
the comparative condition “(S1+1, S1)<(S2+1, S2)” or
“(S1+1, S1)>(S2+1, S2)”.
9
STD> Begins a logic operation by comparing two 32-bit data in
the comparative condition “(S1+1, S1)>(S2+1, S2)”.
9
STD>= Begins a logic operation by comparing two 32-bit data in
the comparative condition “(S1+1, S1)>(S2+1, S2)” or
“(S1+1, S1)=(S2+1, S2)”.
9
STD< Begins a logic operation by comparing two 32-bit data in
the comparative condition “(S1+1, S1)<(S2+1, S2)”.
9
32-bit data
compare
(Start)
STD<=
Begins a logic operation by comparing two 32-bit data in
the comparative condition “(S1+1, S1)<(S2+1, S2)” or
“(S1+1, S1)=(S2+1, S2)”.
9
