(1) Mirror inversion
The mirror inversion has two types, horizontal inversion (Mirror) and vertical inversion (Flip).
• “Mirror” Horizontal mirror inversion (Y axis symmetric)
All character strings and CAD files are marked at the position symmetric to Y axis.
• “Flip” Vertical mirror inversion (X axis symmetric)
All character strings and CAD files are marked at the position symmetric to X axis.
Both horizontal and vertical inversions are available to be set simultaneously.

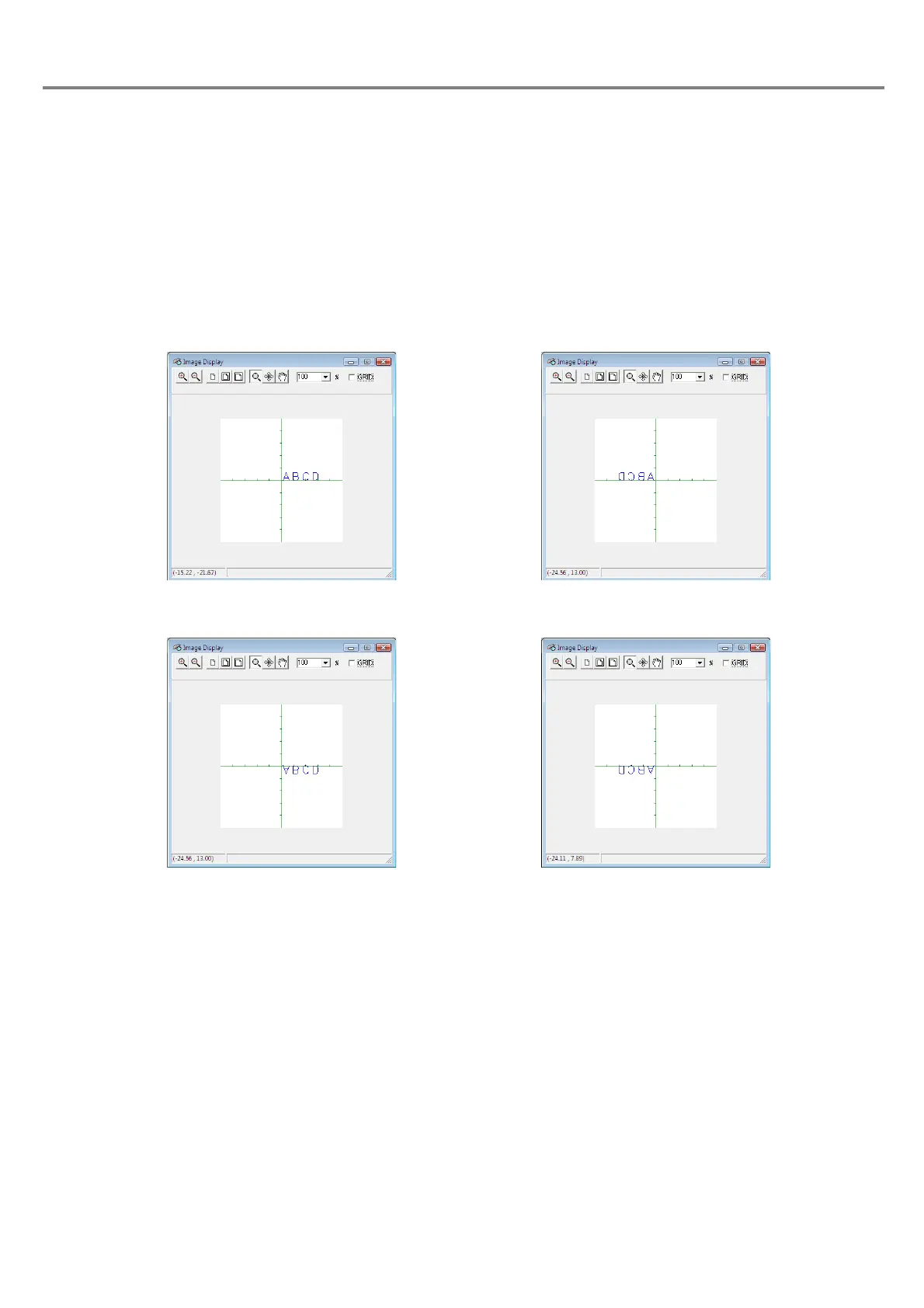

The relation between the respective check box set ON/OFF and image indication is as follows.
Mirror (Y axis symmetric): OFF Mirror (Y axis symmetric): ON
Flip (X axis symmetric)
: OFF Flip (X axis symmetric) : OFF
Mirror (Y axis symmetric): OFF Mirror (Y axis symmetric): ON
Flip (X axis symmetric)
: ON Flip (X axis symmetric)
: ON
