1-3 Installation

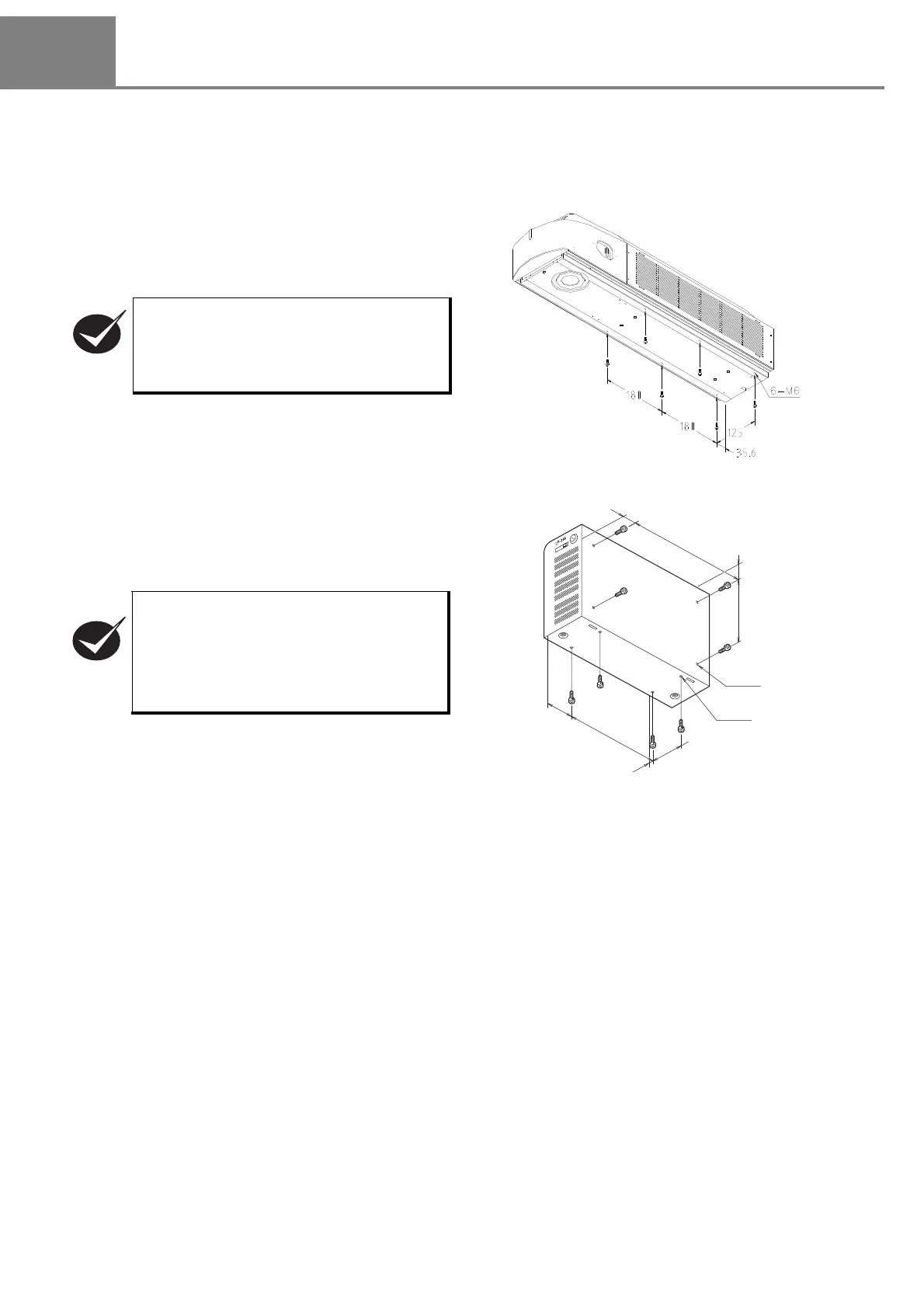

1-3-1 Installation Method
(1) Installation Method
Head
This head can be fixed from the bottom with M6 screw
at six locations.
Power Supply BOX
This power supply BOX can be fixed from the bottom
with M4 screw at four locations.
• The inserting length of the screw shall be
10mm or less.
• The tightening torque shall be 2.0N•m or
less.
• The inserting length of the screw shall be
10mm or less. Note that the inserting
length of the screw on side surface of LP-
310-C shall be 5mm or less.
• The tightening torque shall be 2.0N•m or
less.
CHECK
30
35
140
4-M4
4-M4
70
200
57.5
12.5
255
CHECK
