38

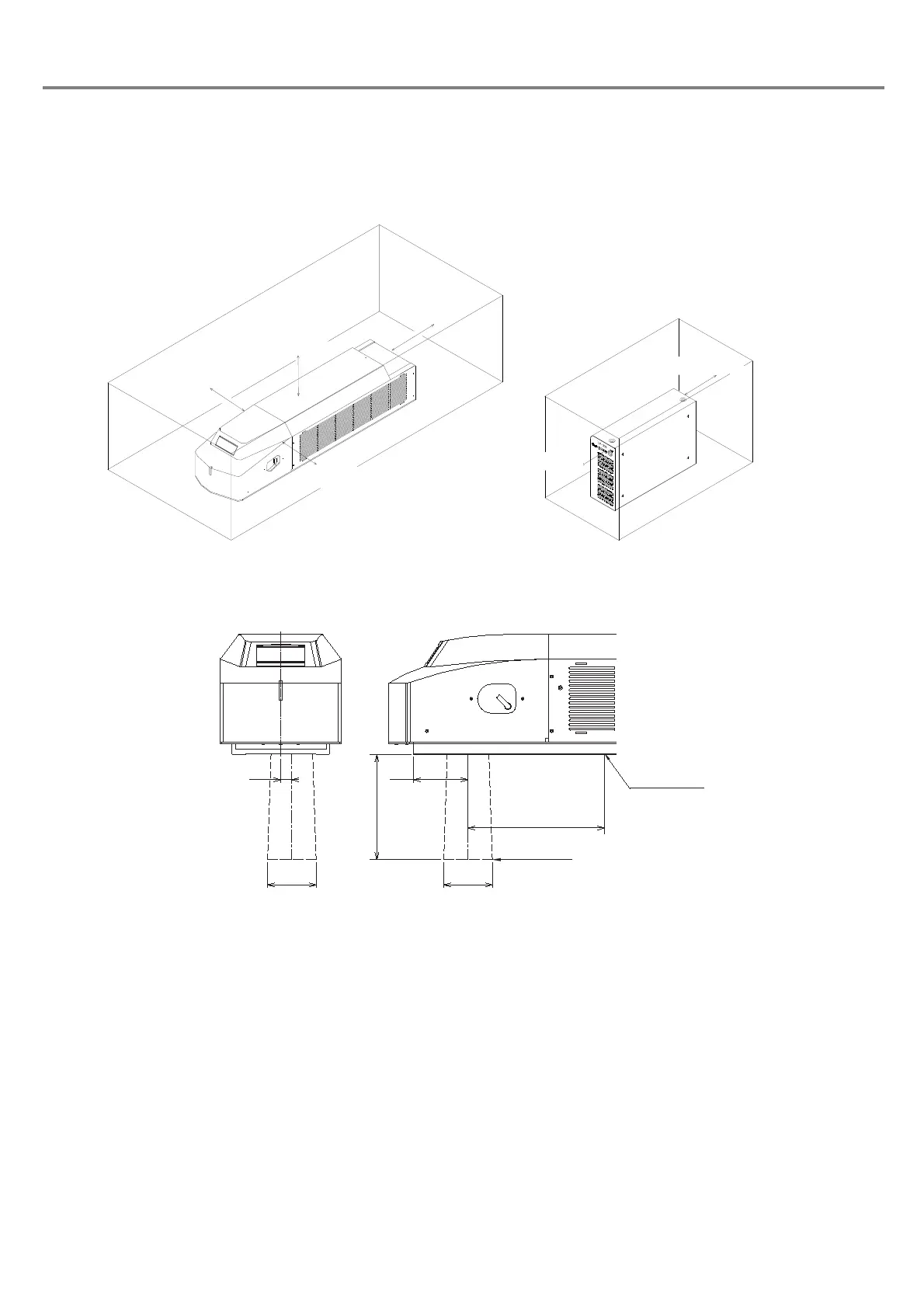

(3) Installation Space
Since this product is operated by the forced air-cooling, both fan and slit for cooling are equipped. Make
space around the product as shown in the following figure.
Head Power Supply BOX
1-3-2 Center of Marking
１５ｃｍ以上
１５ｃｍ以上
１５ｃｍ以上
１５ｃｍ以上
２０ｃｍ以上
１５ｃｍ以上
Min. 15cm
Min. 15cm
Min. 15cm
Min. 20cm
Min. 15cm
Min. 15cm
145
78
50
Marking Position
50
200
16
Screw hole
for fixing
Marking Area: 50mmX50mm
