Associated Equipment
Page 6-10 890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D
8
9
10
11
B
C
D
1
2
3
4
5
6
7
E

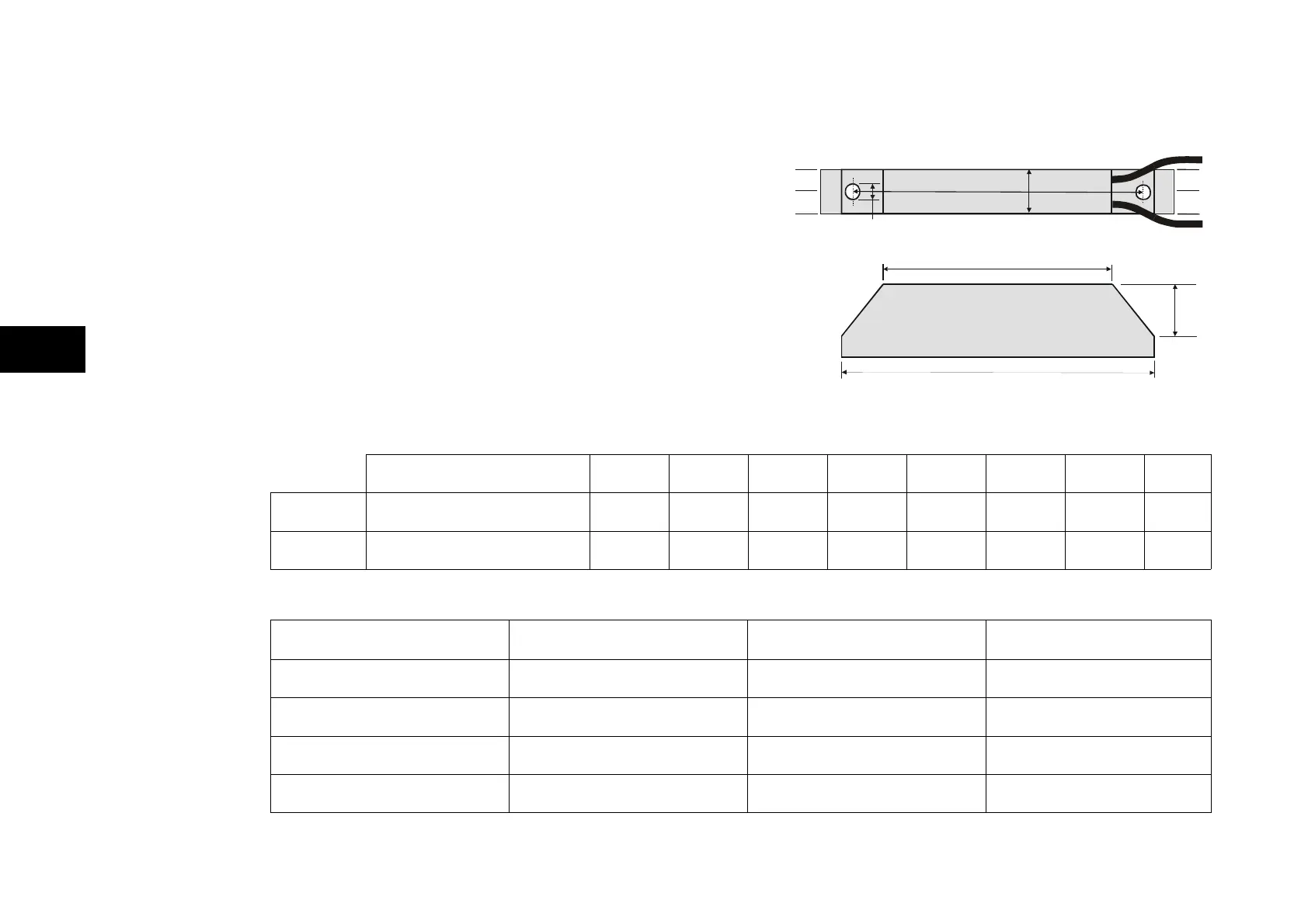

890SD Resistor Selection
These small, metal-clad resistors should be mounted on a
heatsink (back panel) and covered to prevent injury from
burning.
There are four resistor values available.
Each one can support "10 x Power Rating" for 5 seconds.
Refer to the following "Calculation".
IMPORTANT The continuous rating quoted is not to be exceeded
under repetitive loading.
Flying Lead Length L1 L2 L3 a b D W H
500W
500 335 316 295 13 17 5.3 60 30
200W
500 165 146 125 13 17 5.3 60 30
Dimensions are in millimetres
SSD Part Number Power Rating (W)
Resistance (Ω)
Current Rating (A)
CZ467717 200 100 1.4
CZ463068 200 56 1.9
CZ467716 500 56 3.0
CZ388396 500 36 3.7
L1
H
flying leads
L2
L3
W
a
b
a
b
D
To Next Page
