The Keypad
Page 8-10 890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D
8
9
10
11
B
C
D
1
2
3
4
5
6
7
E

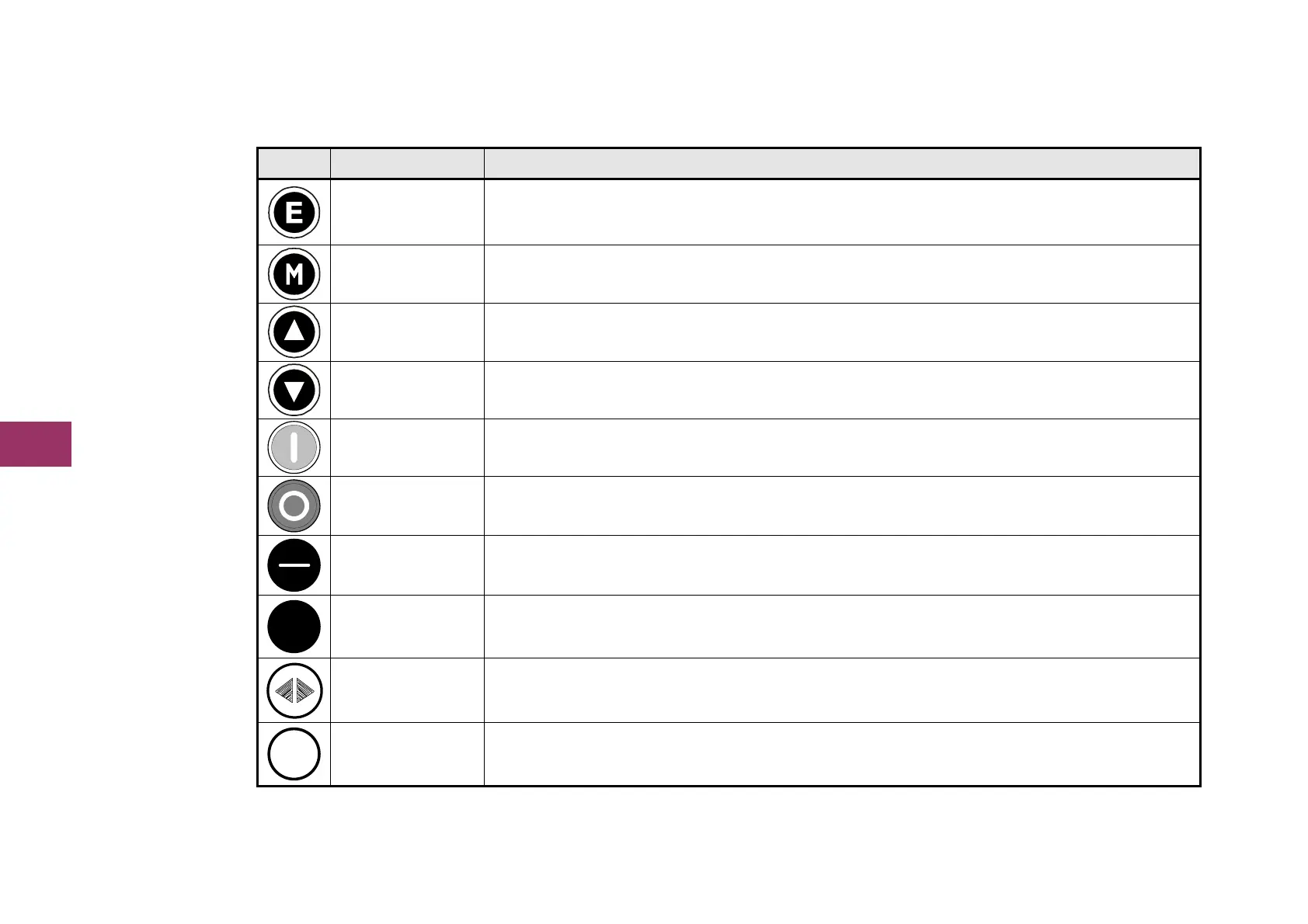

Control Key Definitions
Key Operation Description
Escape
Navigation – Hold to display the Welcome screen
Trip Message – Clear Trip or Error message from display
Menu
Bypasses the time-out from the Welcome screen to display the Diagnostics
menu
Increment Move up through the Diagnostics menu
Decrement Move down through the Diagnostics menu
Run Local Mode – Run the unit (power-up the DC link)
Stop
Local Mode – Stops the unit (power-down the DC link)
Trip Reset – Resets trip condition allowing unit to resume operation
R
L
Local/Remote Toggles between Remote and Local Mode
PROG
Prog KEY INACTIVE
Forward/
Reverse
KEY INACTIVE
JOG
Jog KEY INACTIVE
To Next Page
