The Keypad
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D Page 8-7
8
9
10
11
B
C
D
1
2
3
4
5
6
7
E
Drive Status Indications
The keypad can display the following status information:

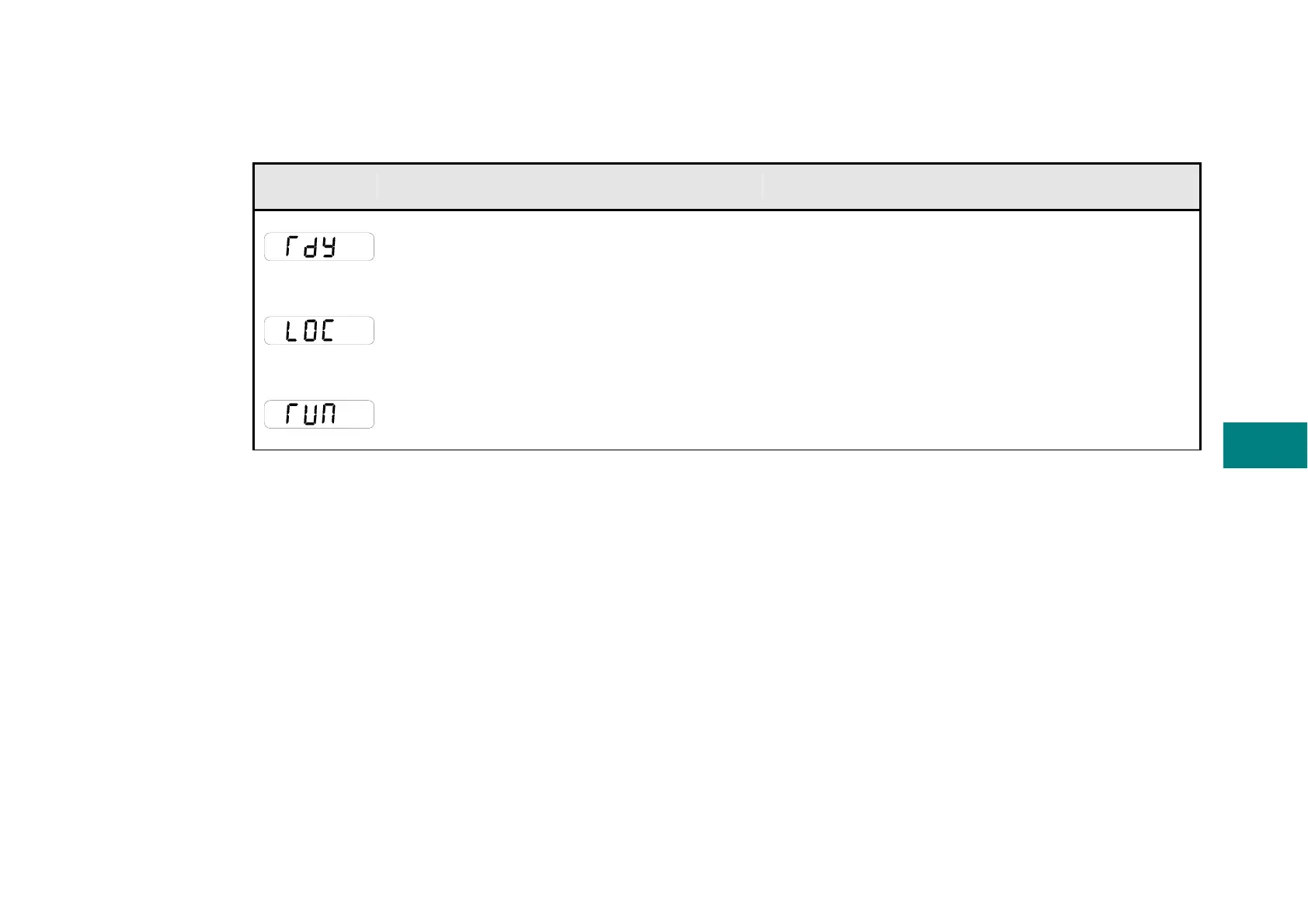

Display Status Indication and Meaning Possible Cause
READY/HEALTHY No alarms present.
Remote mode selected
LOCAL Local Mode selected, healthy,
no alarms present
Added or removed from the display letter-
by-letter to indicate entering or leaving
Local Mode
RUN Not possible to change between
Local/Remote mode
The drive is running in Local mode or the
Remote run signal is active
Alert Message Displays
A message will be displayed on the Keypad when either:
♦ A requested operation is not allowed
♦ The drive has tripped
Most messages are displayed for only a short period, or for as long as an illegal operation is tried, however,
trip messages must be acknowledged by pressing the E key.
Experience will show how to avoid most messages. Refer to Chapter 10: “Trips and Fault Finding” for trip
messages and reasons.
