890CS & 890CD Common Bus Units
Page
4-36
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D
8
9
10
11
A
B
C
D
1
2
3
4
5
6
7
E
4.2: Configure the 890CD Common Bus Drive
You must now configure each 890CD Common Bus Drive to your application. This is done using the DSE
890 Configuration Tool supplied on the CD, or the keypad.
Using the DSE 890 Configuration Tool
The DSE 890 (Drive System Explorer) Configuration Tool has a full Help system. Insert the DSE 890 disk
into your PC and follow the on-screen instructions. Use the tool to set-up the I/O connectivity so that it
meets the requirements for each 890CD Common Bus Drive. When connected, enter the set-up parameters
as discussed on page 4-
38.

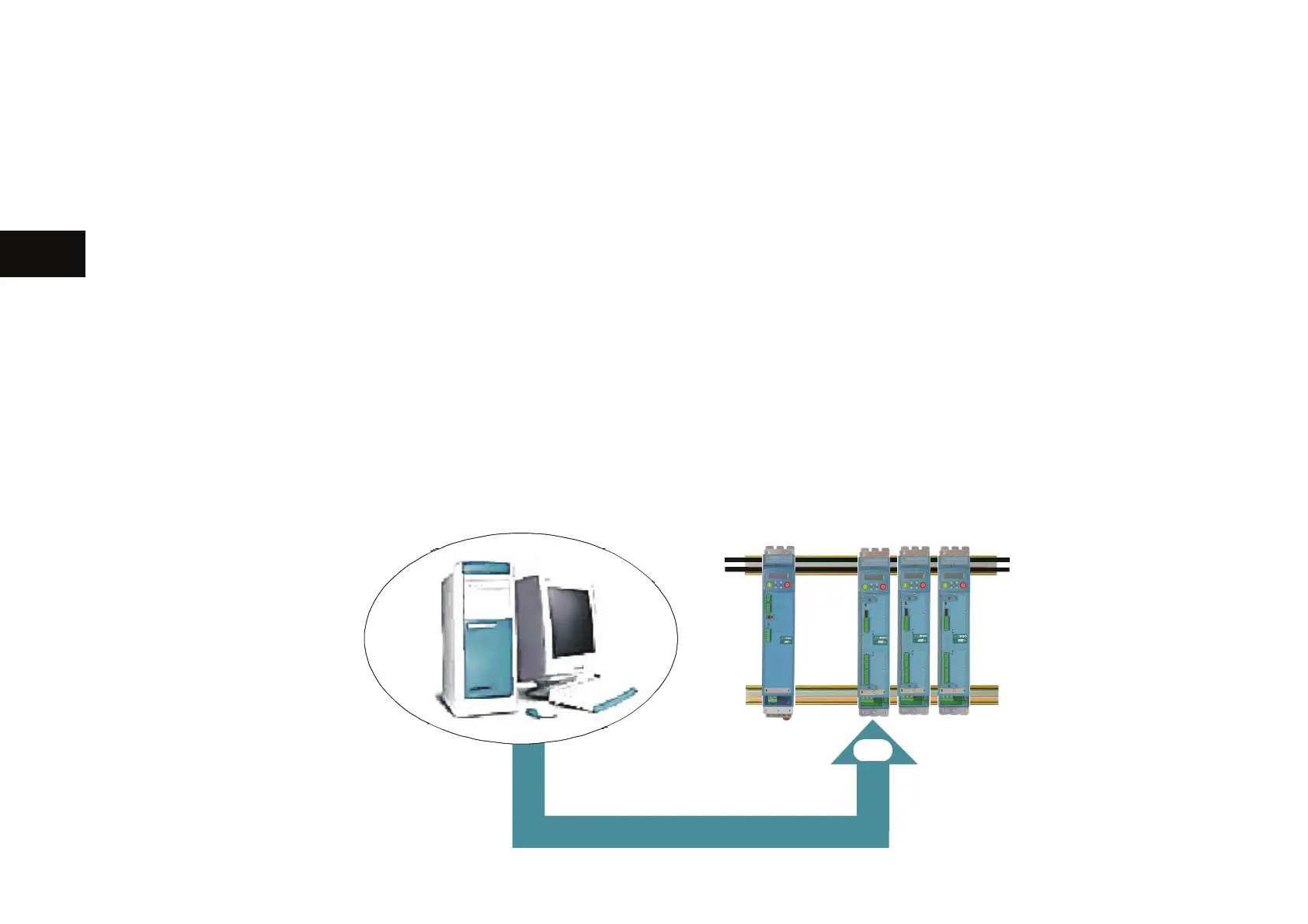

Connecting to a PC
Connect the 890CD Common Bus Drive to your PC using an approved mini-USB lead. You can order this
lead from Parker SSD Drives: part number CM471050 (3m long) or CM465778 (1m long).
890CS
Supply
890CD
Drives
mini-USB
X10
