Selecting Local or Remote Mode
The unit can operate in one of two ways:
Remote Mode: Remote control using digital and analog inputs and outputs
Local Mode: Local control using the Keypad
Local control keys are inactive when Remote Mode is selected.
You must be at the top of the MMI, showing the software version, before you can change between local and
remote modes.
Note You can only change between Local and Remote Mode when the unit is
“stopped” and the Keypad is displaying the software version.

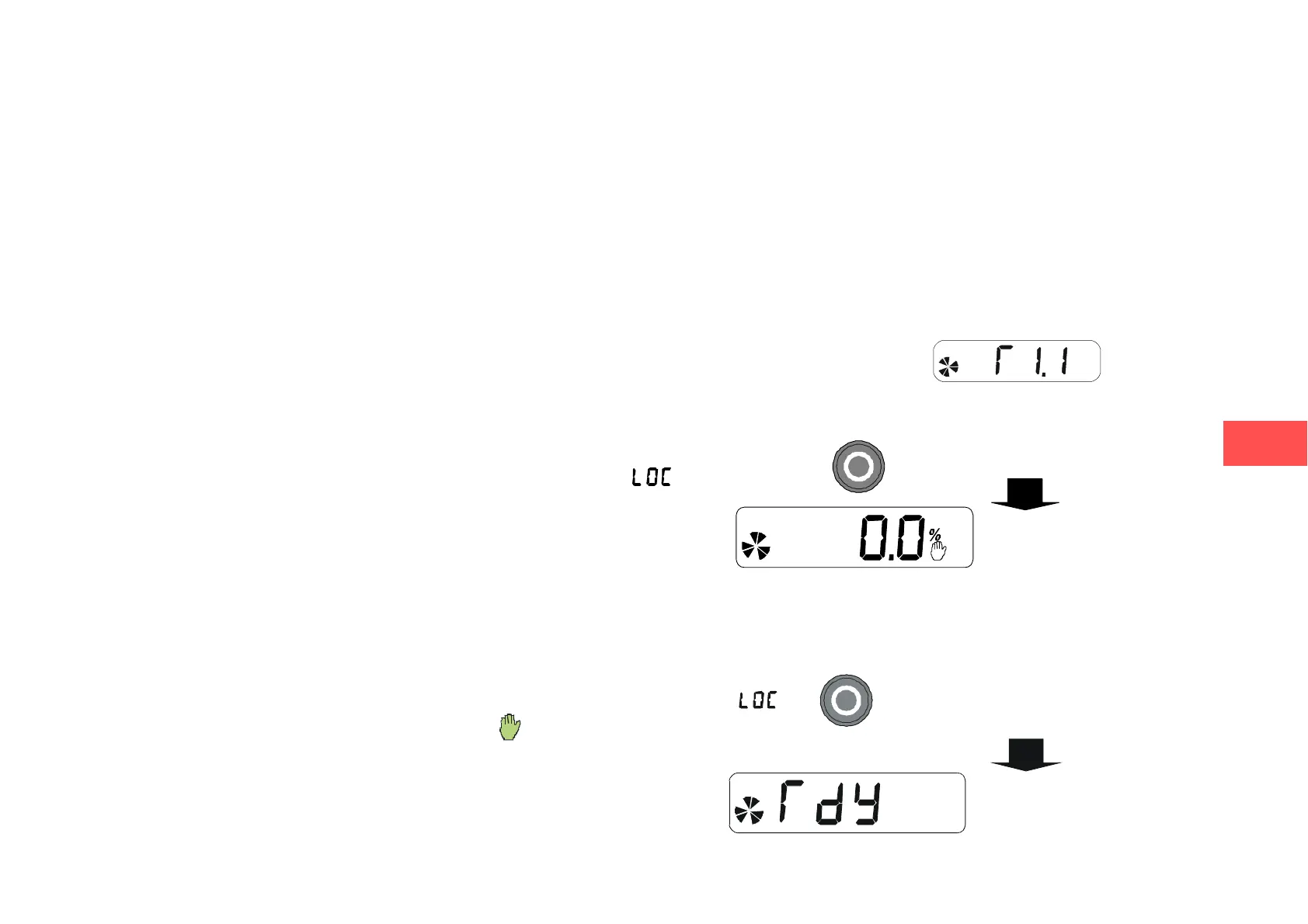

Remote to Local Mode:
Local to Remote Mode:
REMOTE
LOCAL
Hold the Stop key down until
the display spells
Release the key to display
the previous menu
for example,Local Setpoint
REMOTE
LOCAL
Release the key to display
the previous menu
Hold the Stop key down until
and are removed from the display
