The Keypad
Page 8-4 890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D
8
9
10
11
B
C
D
1
2
3
4
5
6
7
E

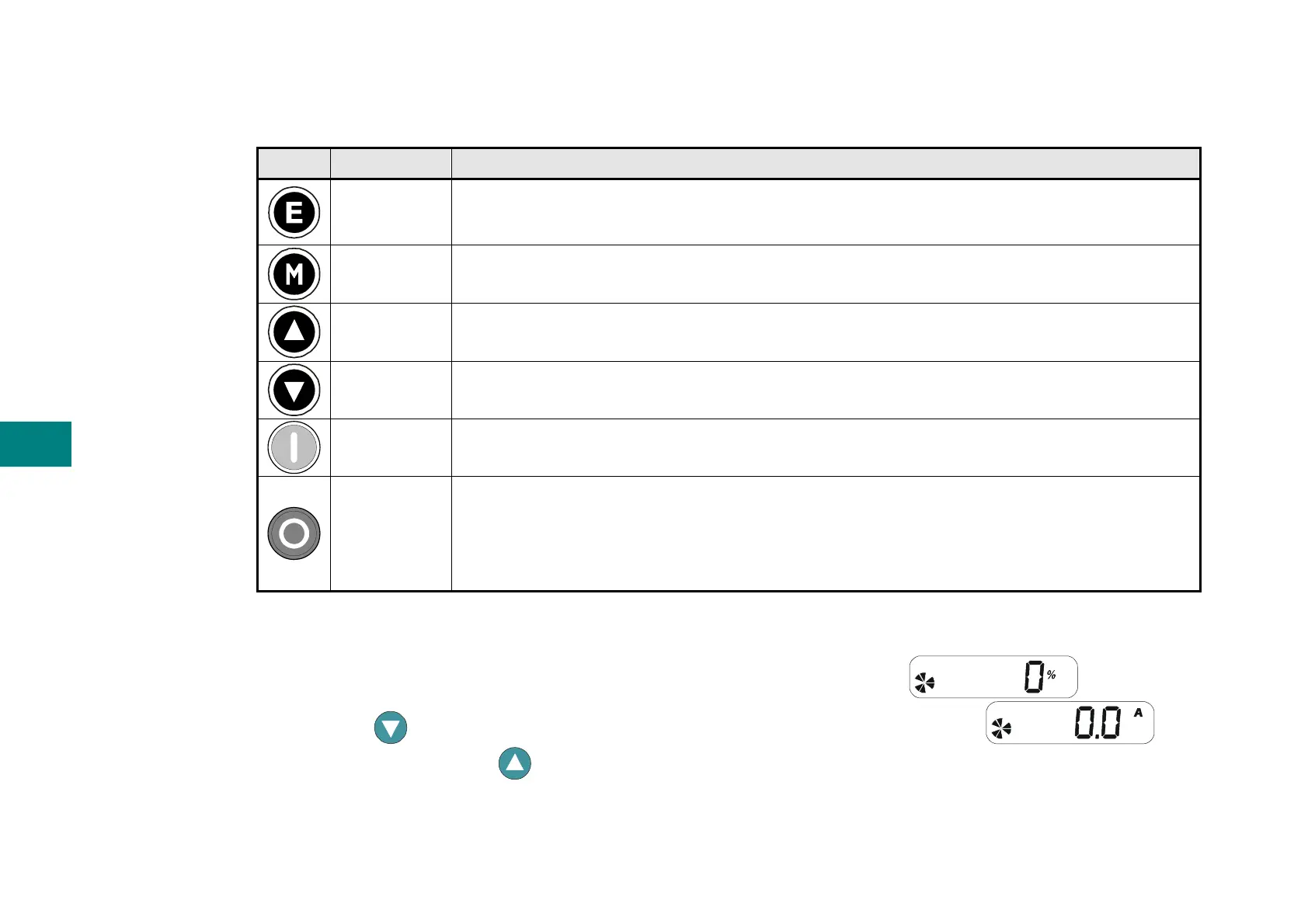

Control Key Definitions
Key Operation Description
Escape
Navigation – Hold to display the Welcome screen
Trip Message – Clear Trip or Error message from display
Menu
Bypasses the time-out from the Welcome screen to display the Diagnostics
menu.
Increment Move up through the Diagnostics menu
Decrement Move down through the Diagnostics menu
Run Local Mode – Run the unit (power-up the DC link)
Stop
Local Mode – Stops the unit (power-down the DC link)
Navigation – Press and hold to toggle between Local and Remote Mode (refer
to page 8-
8)
Trip Reset – Resets trip condition allowing unit to resume operation
Example: To view the INPUT CURRENT diagnostic
1. The display will default to show the OUTPUT POWER (%) diagnostic .
2. Press the
key repeatedly to scroll to the INPUT CURRENT (A) diagnostic .
Alternatively, press the
key just once to cycle round the list.
