The Keypad
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D Page 8-17
8
9
10
11
B
C
D
1
2
3
4
5
6
7
E

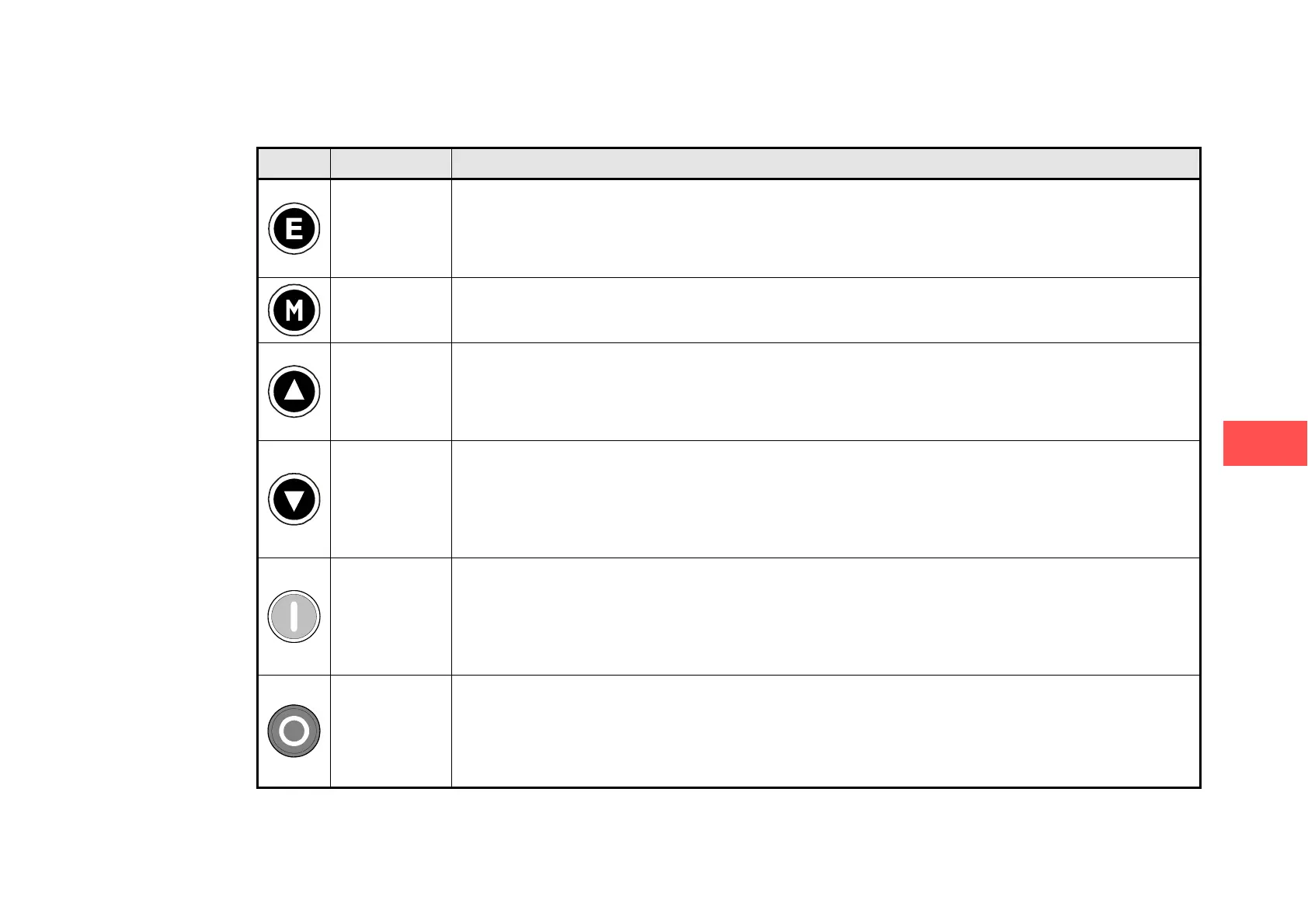

Control Key Definitions
Key Operation Description
Escape
Navigation - Moves upwards through the list of parameters.
Parameter - Increments the value of the displayed parameter.
Command Acknowledge - Confirms action when in a command menu.
Menu
Navigation - Moves downwards through the list of parameters.
Parameter - Decrements the value of the displayed parameter.
Increment
Navigation - Displays the previous level’s Menu.
Parameter - Returns to the parameter list.
Trip Message - Clear the Trip or Error message from the display.
Decrement
Navigation -
Displays the next Menu level, or the first parameter of the current
Menu.
Parameter - Allows a writable parameter to be modified (this is indicated by
→
appearing on the left of the bottom line).
Run
Control - Runs the motor at a speed determined by the LOCAL SETPOINT or
REMOTE SETPOINT parameter.
Trip Reset - Resets any trips and then runs the motor as above. Only operates
when the drive is in Local Start/Stop (Seq) Mode.
Stop
Control - Toggles between Remote and Local Mode for both Start/Stop (Seq)
and Speed Control (Ref). When toggling, the display automatically goes to the
relevant SETPOINT screen, and the SETPOINT (LOCAL) screen will have the V
and W keys enabled to alter the setpoint.
