Page 5-6 890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D
8
9
10
11
A
B
C
D
1
2
3
4
5
6
7
E

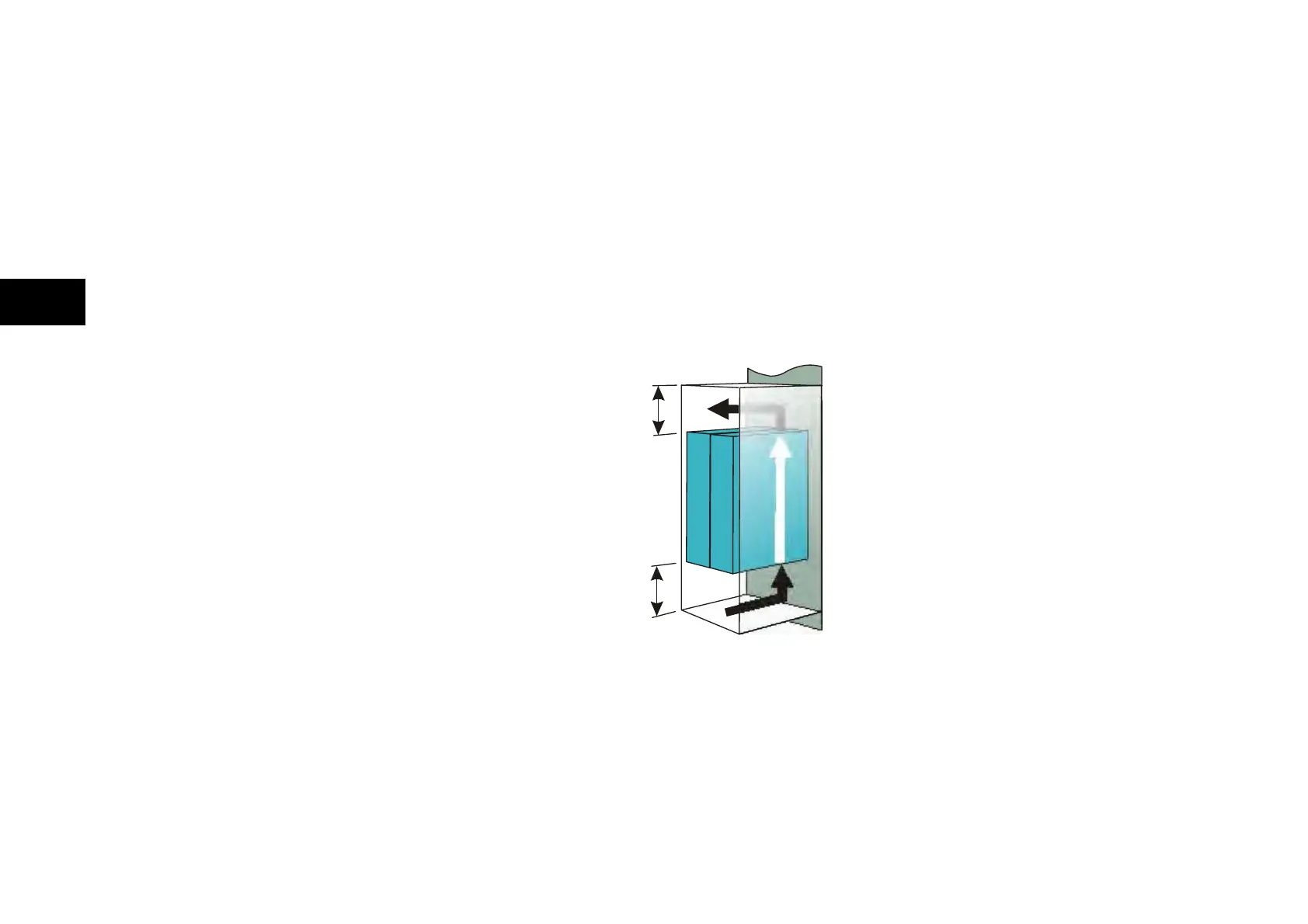

Cooling
Units are designed for mounting side-by-side as shown. A minimum of 150mm (6") free-air space must be
allowed at the top and bottom of each unit.
The 890 gives off heat in normal operation. The mounting surface for the unit should be normally cool.
Allow a free flow of air through the top and bottom ventilation slots and heatsink. Remember that any other
equipment may have its own clearance requirements. If you mount 890s above and below each other, the
minimum top and bottom clearances should be added to produce an overall clearance value.
150mm
150mm
