890CS & 890CD Common Bus Units
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D Page
4-37
8
9
10
11
A
B
C
D
1
2
3
4
5
6
7
E
8
9
1
2
3
4
5
6
E

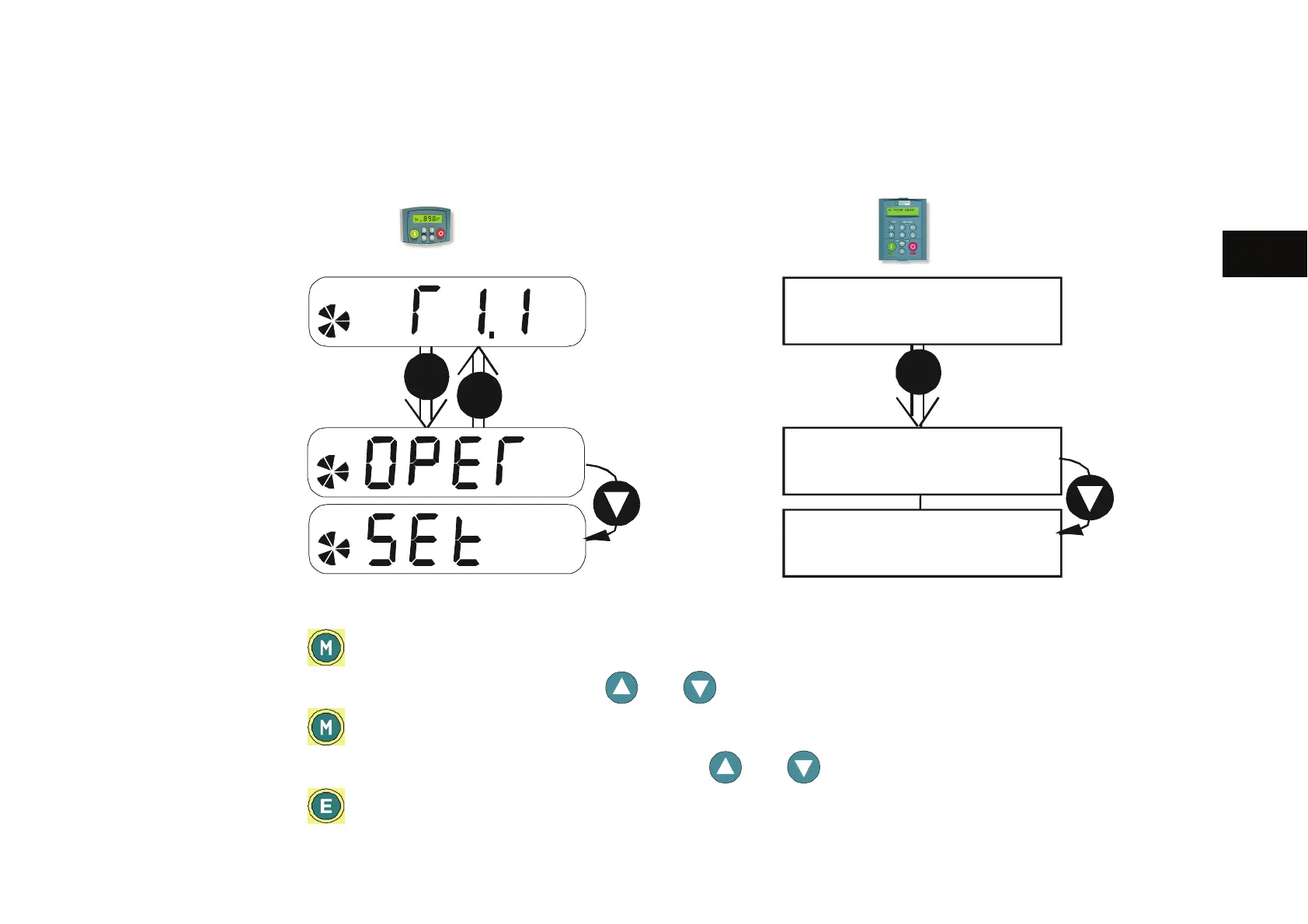

Using the Keypad
Fit the keypad to the front of the unit, or connect remotely. The set-up parameters are stored in the SET
menu on the 6511 keypad, and the QUICK SETUP menu on the 6901 keypad.
6511 Keypad
6901 Keypad
M
time-out
E
x 2
WELCOME SCREEN
SETUP
OPERATOR
menu at level 1
M
menu at level 1
QUICK SETUP
x 2
How to Edit a Parameter
Press to enter the SET/QUICKSETUP menu.
Scroll through the parameters using the
and
keys.
Press
to select a parameter for editing.
Increment/decrement the parameter value using the
and keys.
Press
to exit the parameter.
