The Keypad
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D Page 8-57
8
9
10
11
A
B
C
D
1
2
3
4
5
6
7
E

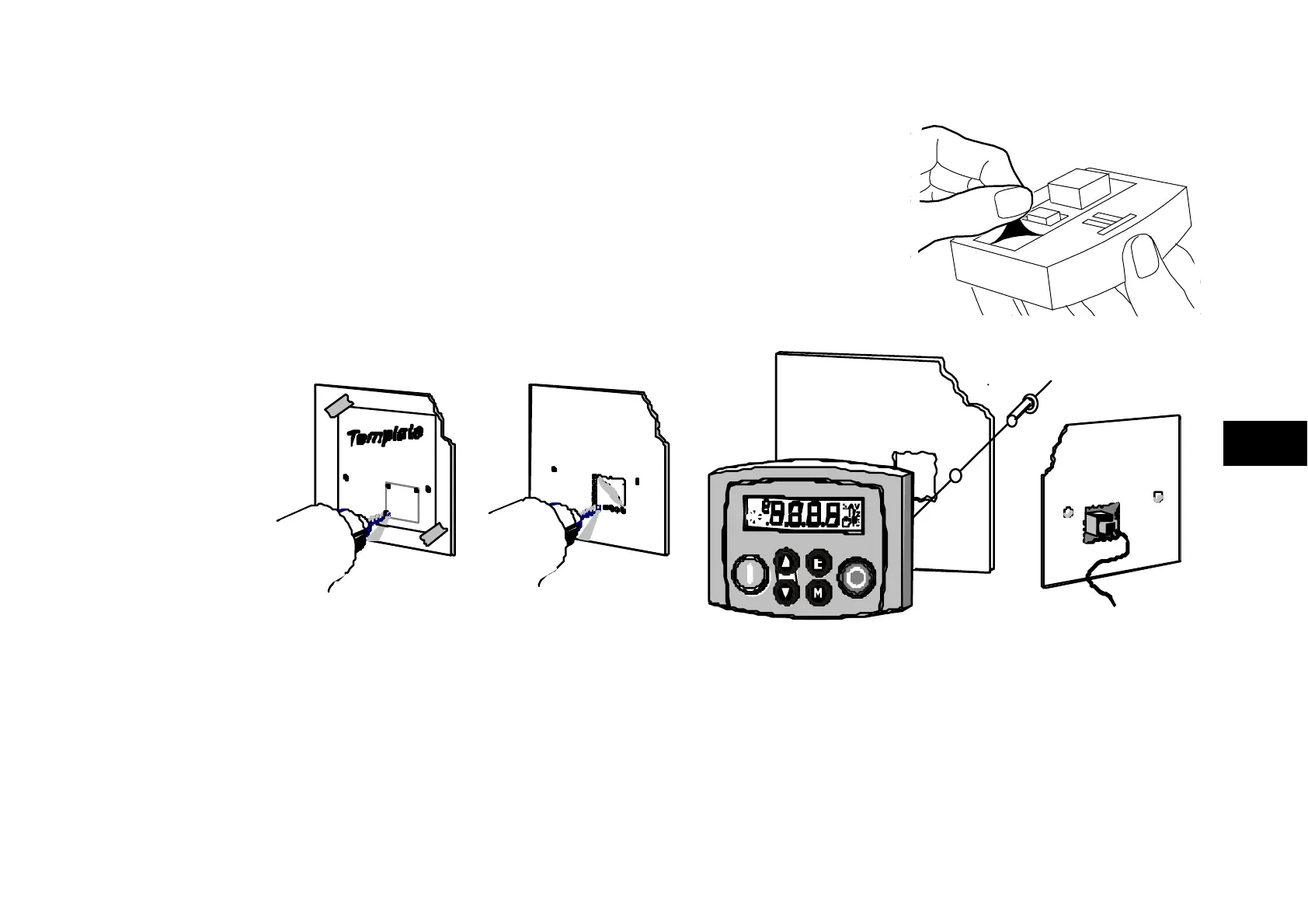

Fitting the Remote 6511 Keypad
You can remote-mount the keypad using a standard P3 lead, SSD Part
Number CM057375U300, to connect the keypad to the drive.
Two self-tapping screws are provided with the keypad. Remove the
protective film from the gasket. An enclosure rating of IP54 is achieved
for the remote keypad when correctly mounted.
2 1 1
P3
4
3
To Keypad port
