Parker ac890 Reference Manual

890CS & 890CD Common Bus Units
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D Page 4-15
8
9
10
11
A
B
C
D
1
2
3
4
5
6
7
E
8
9
1
2
3
4
5
6
E
Power Connections - 890CS Common Bus Supply
The frame B and frame D 890CS units are each available in two power ratings:
Frame B1 : 32A AC rms Input Current Frame D1 : 108A AC rms Input Current
Frame B2 : 54A AC rms Input Current Frame D2 : 162A AC rms Input Current
See the product rating label on the side of the unit to check the power rating. "0032" = 32A etc.

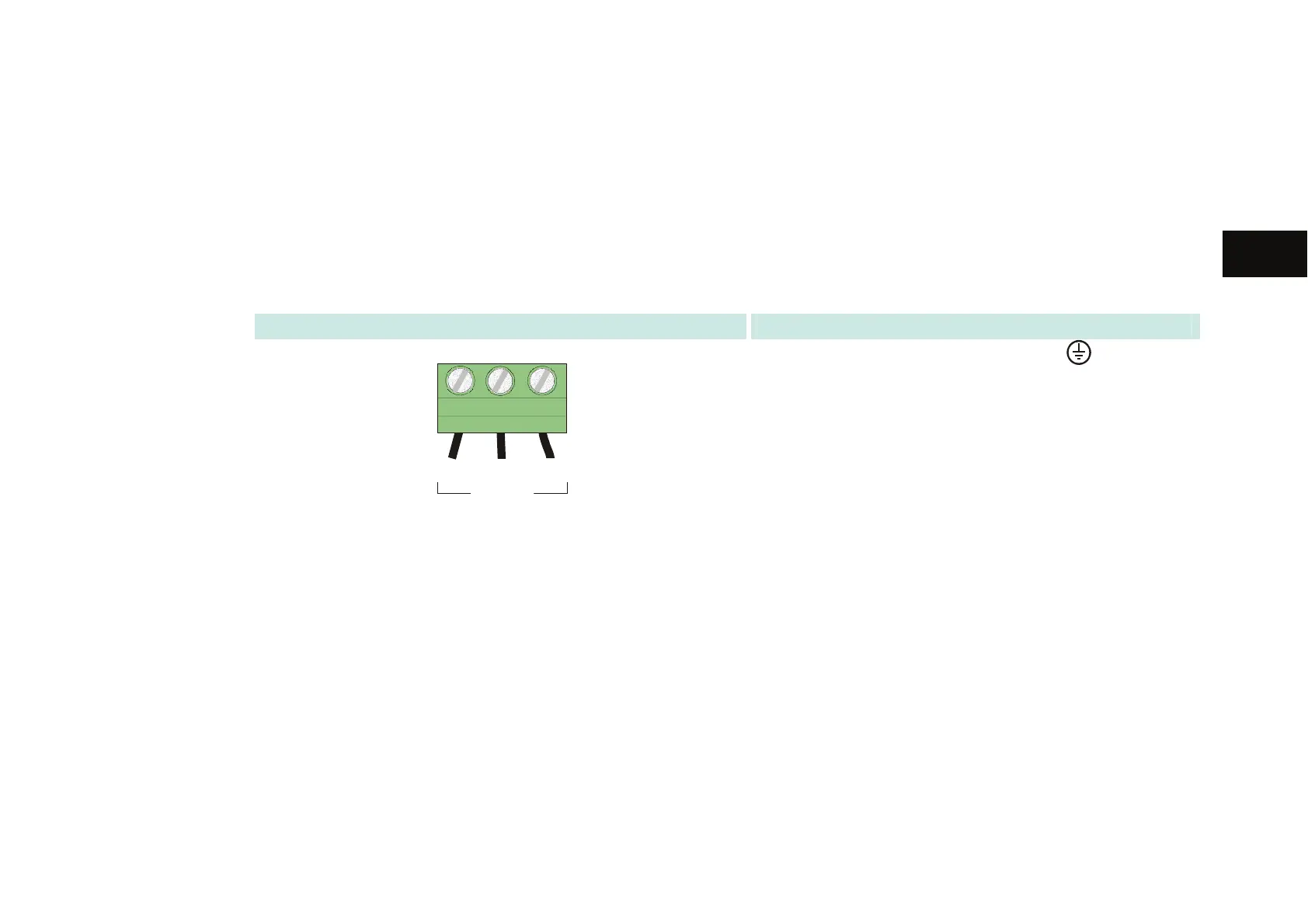

Power Connections - 890CS Common Bus Supply
SUPPLY EARTH/GROUND
SUPPLY
L1 L2 L3
Fix earth connections to
.
Maximum wire sizes:
Frame B1: 10mm
2
/ 8AWG
Frame B2: 16mm
2
/ 4AWG
Frame D1: 50mm
2
/ 1/0AWG
Frame D2: 95mm
2
/ 4/0AWG
Connect 3-phase supply in any order.
Maximum wire sizes:
Frame B1: 10mm
2
/ 8AWG, 2.5-3Nm / 1.8-2.2lbf
Frame B2: 16mm
2
/ 4AWG, 2.5-3Nm / 1.8-2.2lbf
Frame D1: 50mm
2
/ 1/0AWG, 15-20Nm / 11-14.8lbf
Frame D2: 95mm
2
/ 4/0AWG, 15-20Nm / 11-14.8lbf
Refer to the 890 Installation Kit for
earth/ground fixing details.
Each unit must be permanently earthed
according to EN 50178.
For permanent earthing: one conductor, PE1, of
>10mm² cross-section is required; or two
individual incoming protective earth conductors,
PE1 & PE2, of <10mm² cross-section. Each earth
conductor must be suitable for the fault current
according to EN 60204.
