The Keypad
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D Page 8-41
8
9
10
11
A
B
C
D
1
2
3
4
5
6
7
E
Navigating the Menu System
On power-up, the Keypad defaults into the OPERATOR menu,
timing out from the Welcome screen. You can skip the timeout
by pressing the
M
key immediately after power-up which will
take you directly to the OPERATOR menu.

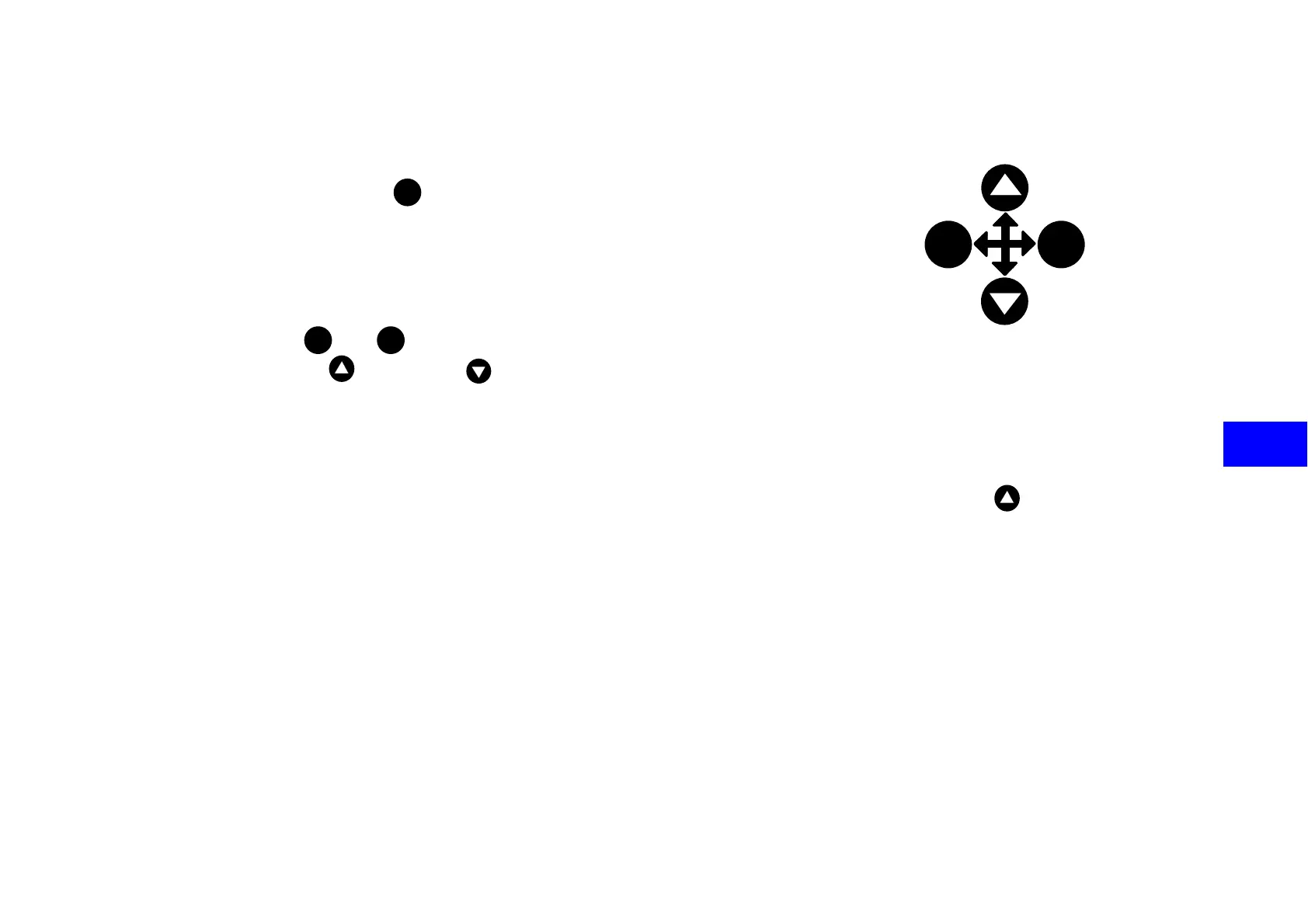

The menu system can be thought of as map which is navigated
using the four keys shown opposite.
Keys
E
and
M
navigate through the menu levels.
The up (
) and down ( ) keys scroll through the Menu and
Parameter lists.
Refer to “The Menu System Map” to see how the full menu is mapped.
HINT: Remember that because the Menu and Parameter lists are looped, the
key can quickly
move you to the last Menu or Parameter in the loop.
scroll
scroll
exit to
previous
menu
next menu
NAVIGATING THE MENU
E
M
