890CS & 890CD Common Bus Units
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D Page
4-19
8
9
10
11
A
B
C
D
1
2
3
4
5
6
7
E
8
9
1
2
3
4
5
6
E

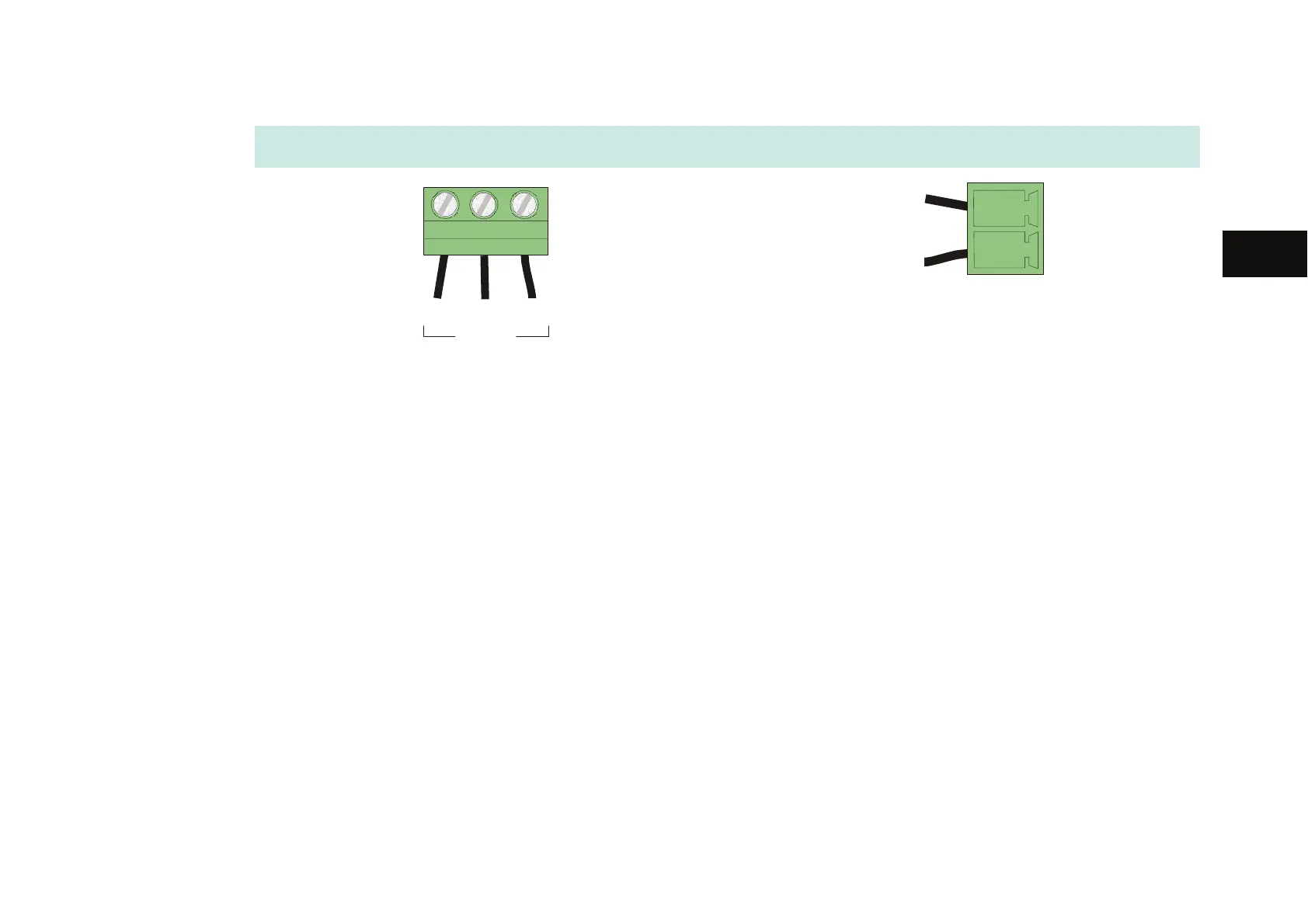

Power Connections - 890CD Common Bus Drive
MOTOR MOTOR THERMISTOR
MOTOR
M1 M2 M3
MOTOR
THERM.
Detects over-temperature in motors fitted with an
internal thermistor.
M1 (U), M2 (V), M3 (W).
Connect to the motor in any order.
Maximum wire sizes:
Frame B: 10mm
2
/ 8AWG, 0.5-0.9Nm / 0.4-0.7lbf
Frame C: 10mm
2
/ 8AWG, 1.2Nm / 0.9lbf
Frame D: 10mm
2
/ 8AWG, 2-4Nm / 1.5-3lbf
Link these terminals for motors not fitted with an
internal thermistor (or set SETUP::TRIPS::I/O
TRIPS::INVERT THERMIST to True).
Maximum wire size:
0.22 Nm/0.16lbf
The connections have no polarity. Thermistor PTC
`Type A’ is supported as defined in IEC 34-11 Part 2:
Rising temperature trip resistance: 1650 to 4000
Ω
Falling temperature trip reset resistance: 750 to
1650
Ω
