Setting up Compax3
192-120113 N08 C3I12T11 - December 2010
165
4.4.2. Scope
In this chapter you can read about:
Monitor information ........................................................................................................165
User interface ................................................................................................................166
Example: Setting the Oscilloscope .................................................................................171
The integrated oscilloscope function features a 4-channel oscilloscope for the
display and measurement of signal images (digital and analog) consisting of a
graphic display and a user interface.
Special feature:
In the single mode you can close the ServoManager after the activation of the
measurement and disconnect the PC from Compax3 and upload the measurement
into the ServoManager later.
4.4.2.1 Monitor information

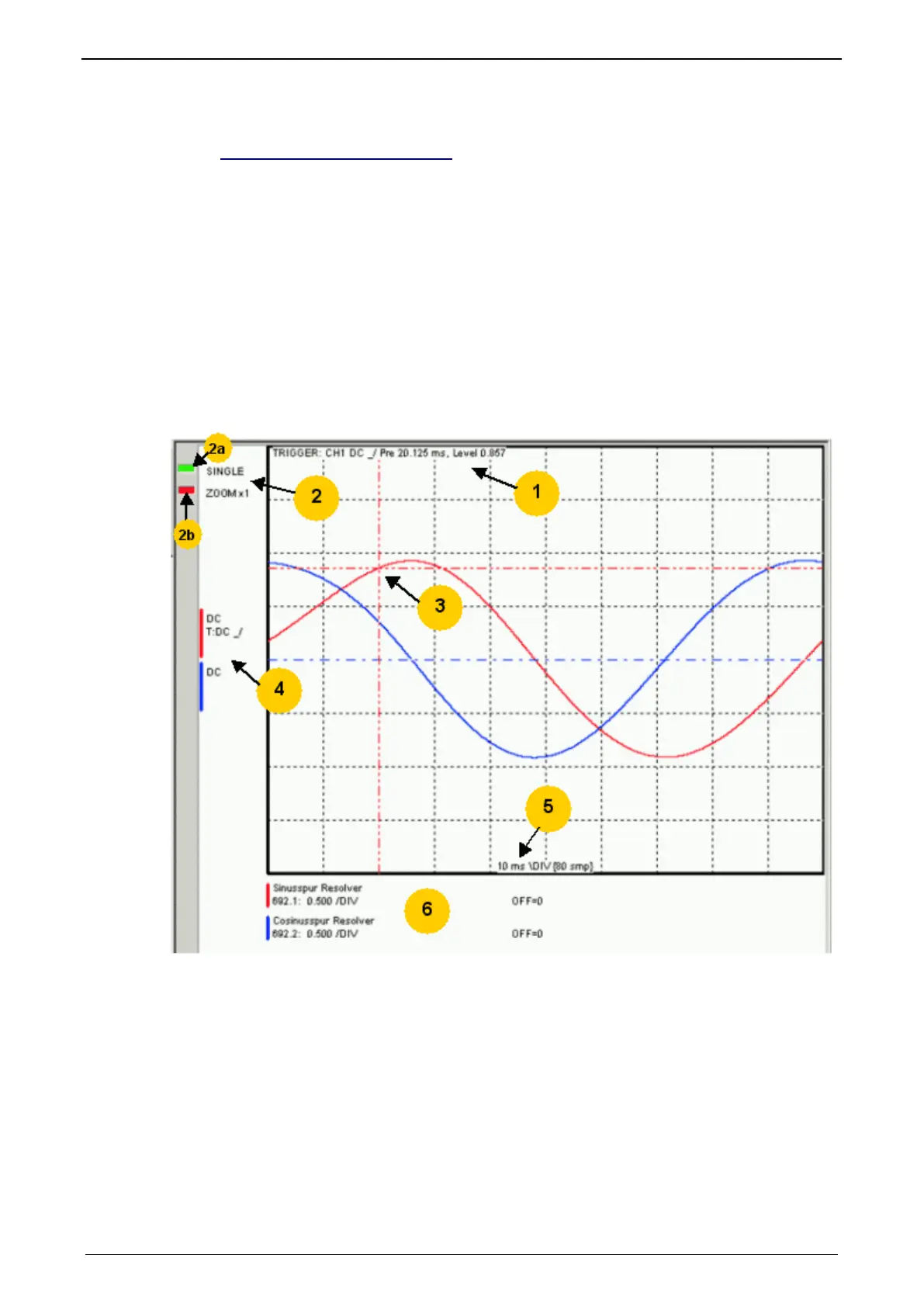

1: Display of the trigger information
2: Display of the operating mode and the zoom setting
 2a: Green indicates, that a measurement is active (a measurement can be
started or stopped by clicking here).
 2b: Active channel: The active channel can be changed sequentially by clicking
here (only with valid signal source).
3: Trigger point for Single and Normal operating mode
4: Channel information: Type of display and trigger setting
5: X-DIV: X deviation set
6: Single channel sources

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
