Parker Compax3 User Manual

Parker EME
Setting up Compax3
192-120113 N08 C3I12T11 - December 2010
287

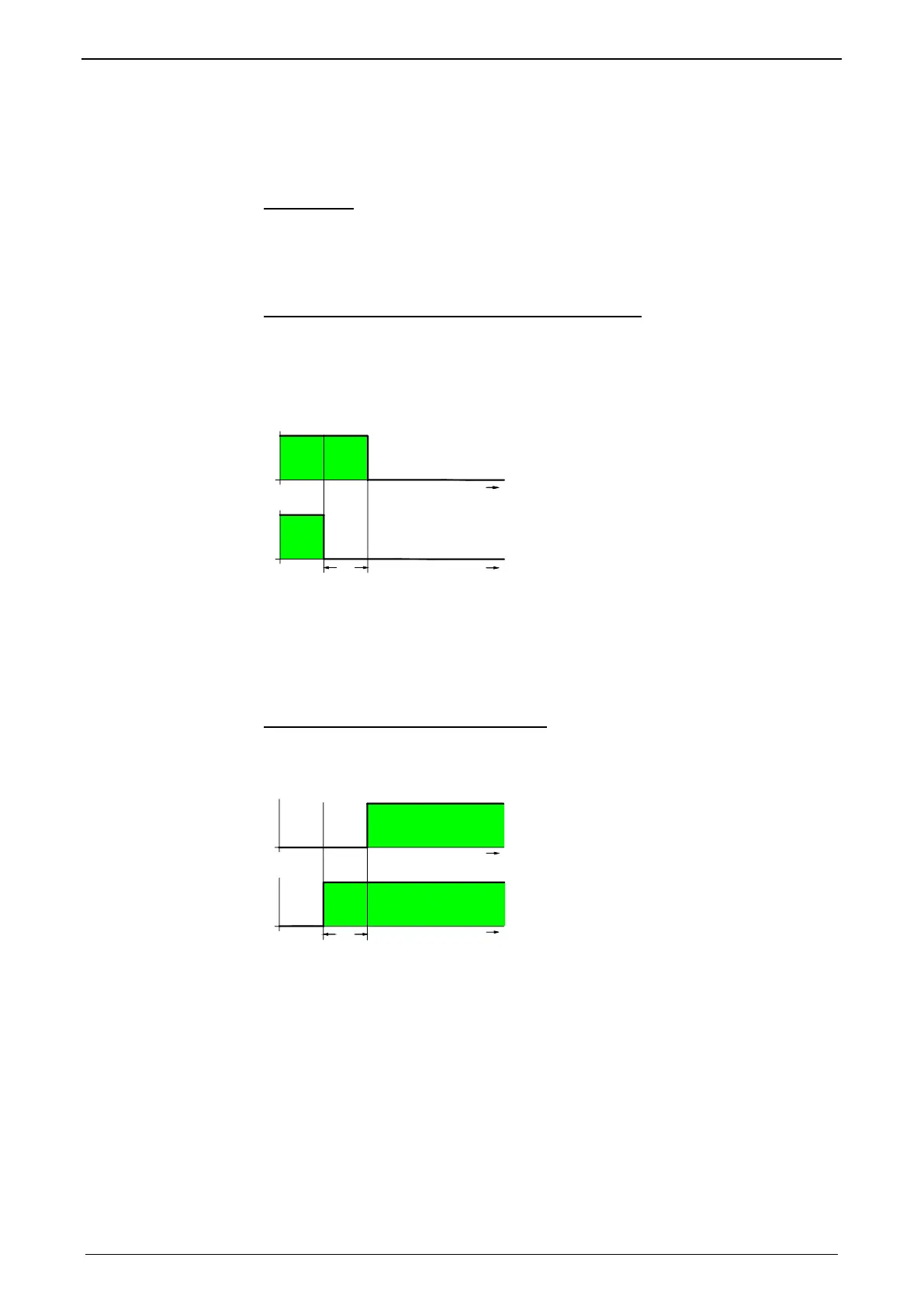

4.4.11. Turning the motor holding brake on and off
Compax3 controls the holding brake of the motor and the power output stage. The
time behavior can be set.
Application:
With an axis that is subject to momentum when it is halted (e. g. for a z-axis) the
drive can be switched on and off such that no movement of the load takes place.
The drive thereby remains energized during the holding brake response time. This
is adjustable.
The power output stage current is de-energized by:
 Error or
 I2=X12/8="0V"
Thereafter the motor is braked to zero rotation speed on the set ramp.
When zero speed is reached, the motor is de-energized with the delay "brake
closing delay time".
t
1
t
2
3
4
5
1: Motor powered
2: Motor de-energized
3: Open brake
4: Engage the brake
5: Brake closing delay time
The power output stage is enabled by:
 Quit (after an error)
 I2=X12/8 = 24V
The motor is energized with the delay "delay time for brake release".
t
t
2
1
4
3
5
1: Motor powered
2: Motor de-energized
3: Open brake
4: Engage the brake
5: Delay time for brake release

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
