Parker Compax3 User Manual

Parker EME
Compax3 device description
192-120113 N08 C3I12T11 - December 2010
31
Caution!
When the control voltage is missing there is no indication whether or not high
voltage supply is available.
Attention - PE connection!
PE connection with 10mm
2
via a grounding screw at the bottom of the device.
Attention - hot surface!
The heat dissipator can reach very high temperatures (>70°C)
Line cross sections of the line connections X1, X2, X3
Compax3 device:
Cross-section: Minimum... Maximum[mm
2
]
S025V2, S063V2
0.25 ... 2.5 (AWG: 24 ... 12)
S100V2, S150V2
S015V4, S038V4, S075V4, S150V4
0.25 ... 4 (AWG: 24 ... 10)
S300V4
0.5 ... 6 (AWG: 20 ... 7)

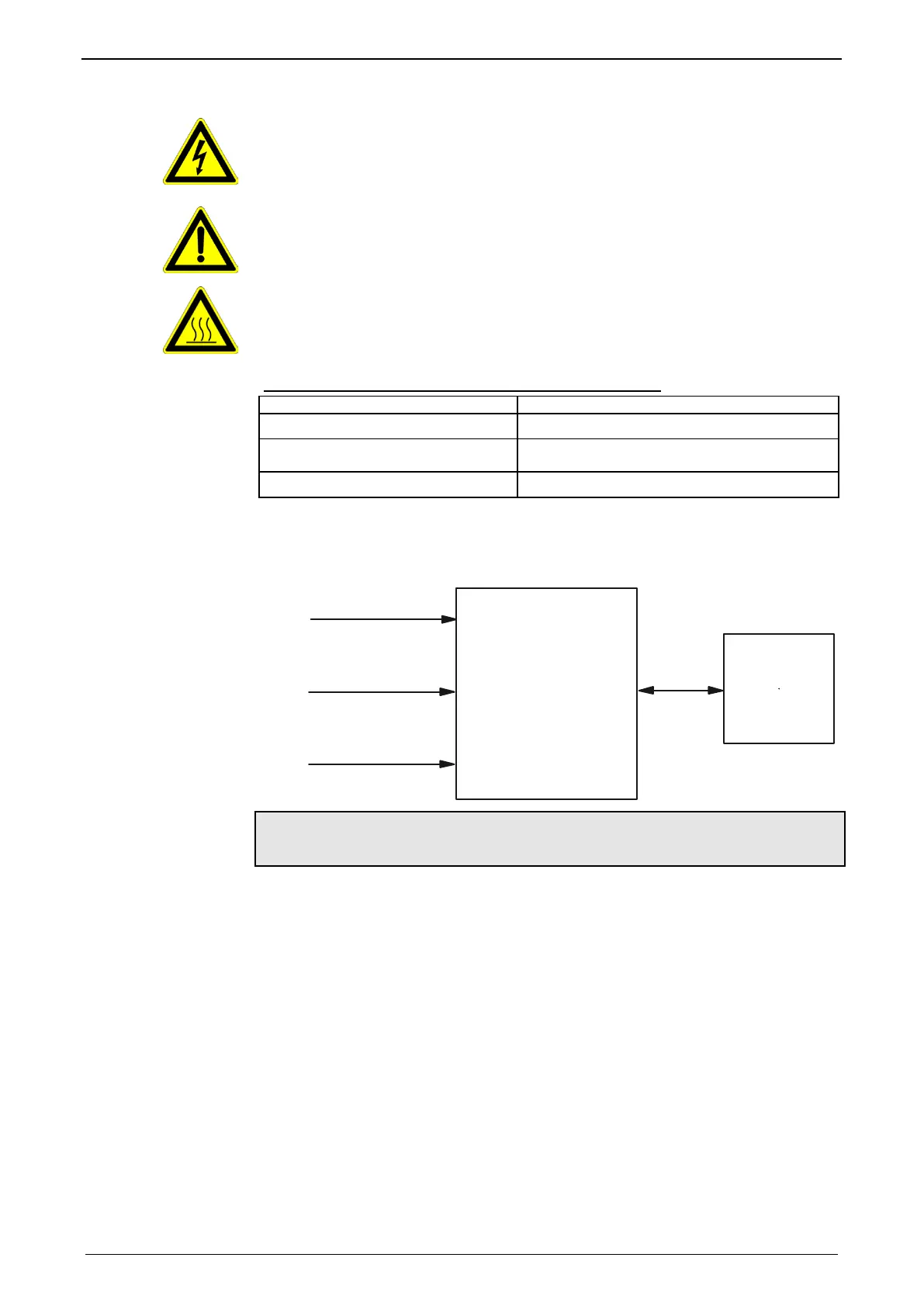

3.3.2. Connector and pin assignment C3S
AC - Versorgung
AC - Supply
X1
X10
DC - Versorgung
DC - Supply
X4 (24VDC)
Freigabe 24VDC
Enable 24VDC
X4/3
RS232
SSK1
PC
Compax3
Further information on the assignment of the plug mounted at the particular
device can be found below!
Overview:

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
