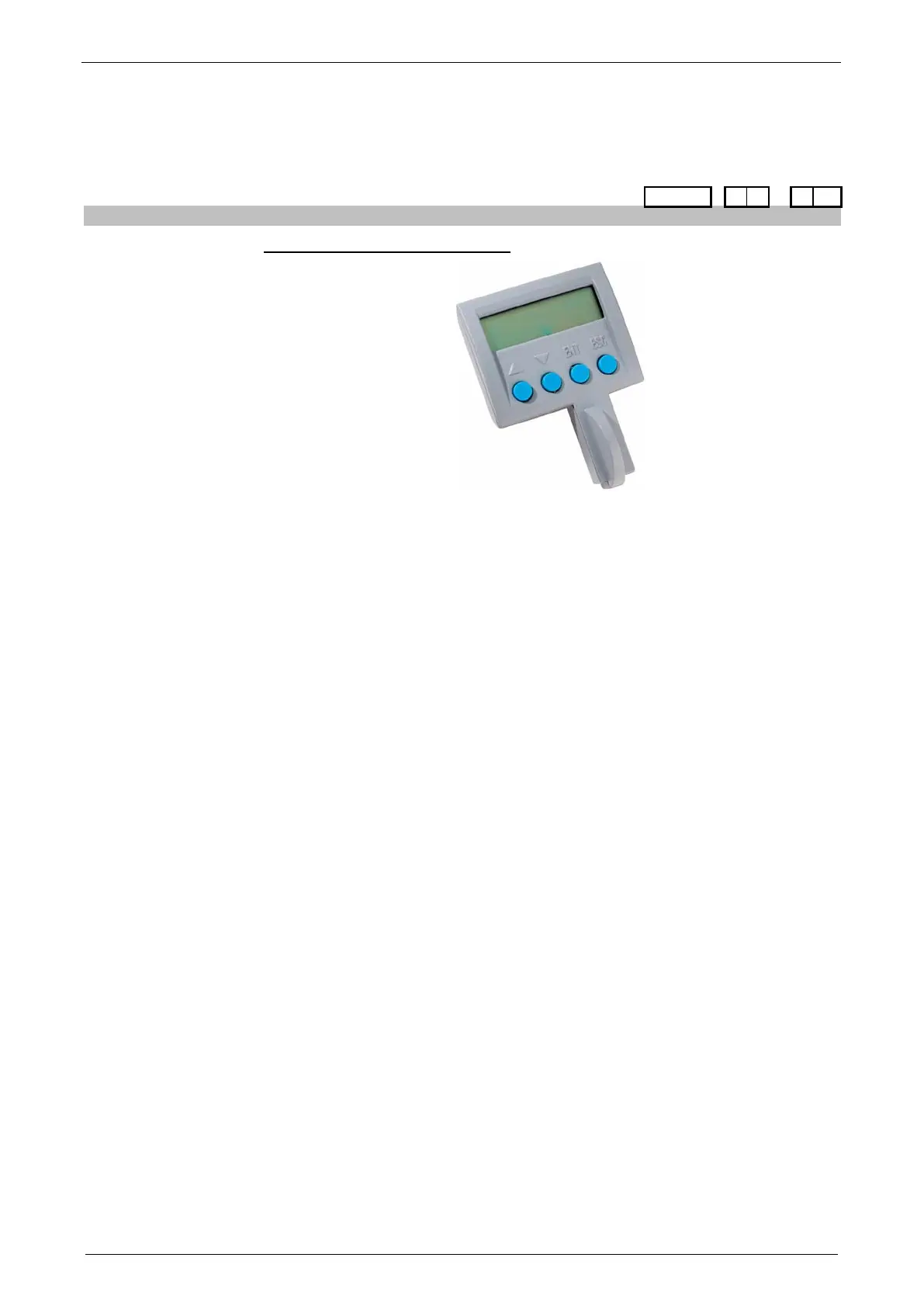

10.6 Operator control module BDM
Order Code operating module
/
Operating module (for Compax3S and Compax3F)
BDM 0 1 / 0 1
Flexible service and maintenance
Functions:
 Mobile or stationary handling: can remain on the unit for display and diagnostic
purposes, or can be plugged into any unit.
 Can be plugged in while in operation
 Power supply via Compax3 servo control
 Display with 2 times 16 places.
 Menu-driven operation using 4 keys.
 Displays and changing of values.
 Display of Compax3 messages.
 Duplication of device properties and IEC61131-3 program to another Compax3
with identical hardware.
 Additional information can be found int he BDM manual This can be found on the
Compax3 CD or on our Homepage: BDM-manual
(http://divapps.parker.com/divapps/EME/EME/Literature_List/dokumentatio
nen/BDM.pdf).

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
