Parker EME
Compax3 device description
192-120113 N08 C3I12T11 - December 2010
71

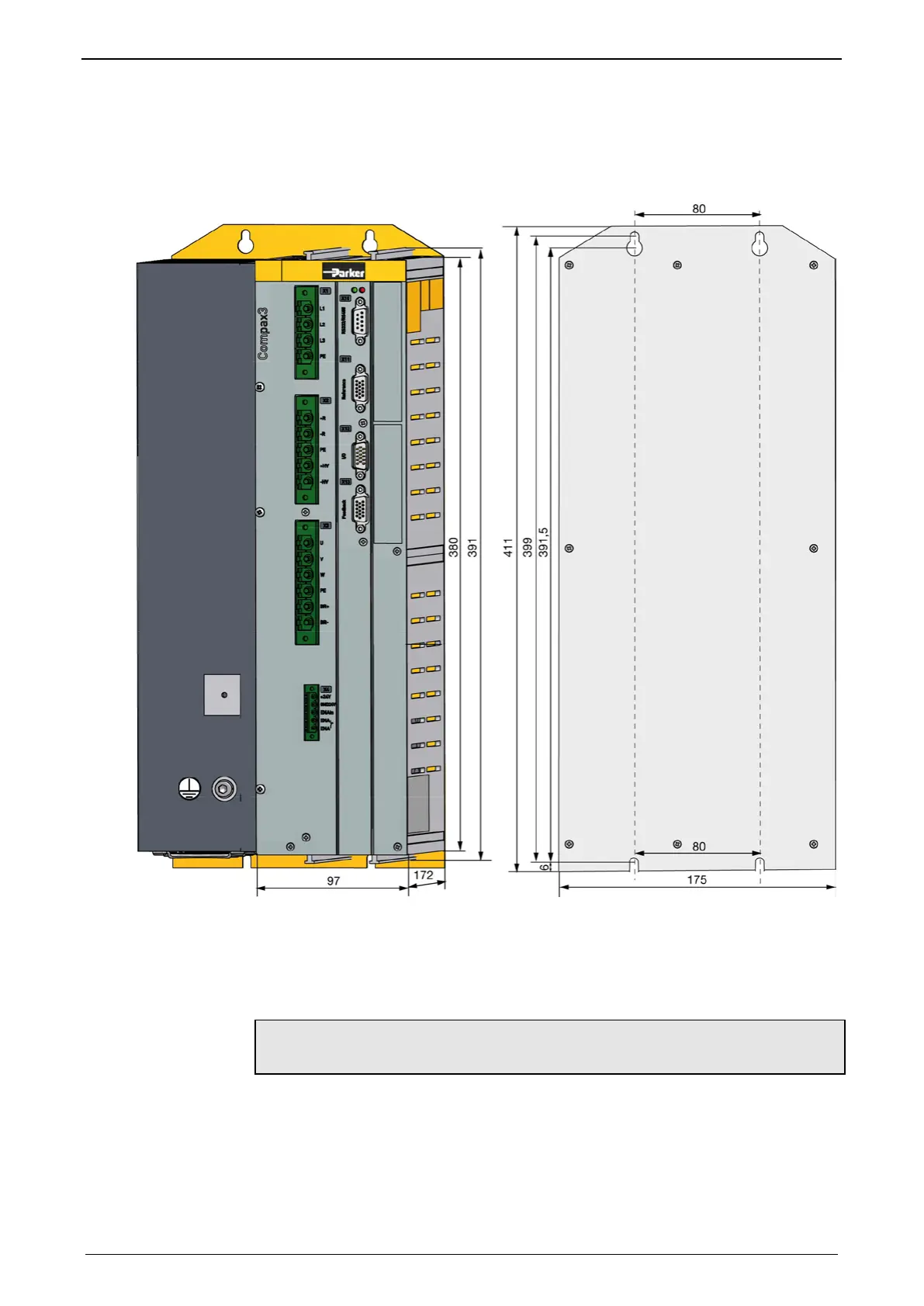

3.9.1.4 Mounting and dimensions Compax3S300V4
Mounting:
4 socket head screws M5
Stated in mm
Please respect an appropriate mounting gap in order to ensure sufficient
convection:
At the side: 15mm
At the top and below: at least 100mm
Compax3S300V4 is force-ventilated via a fan integrated into the heat
dissipator!
